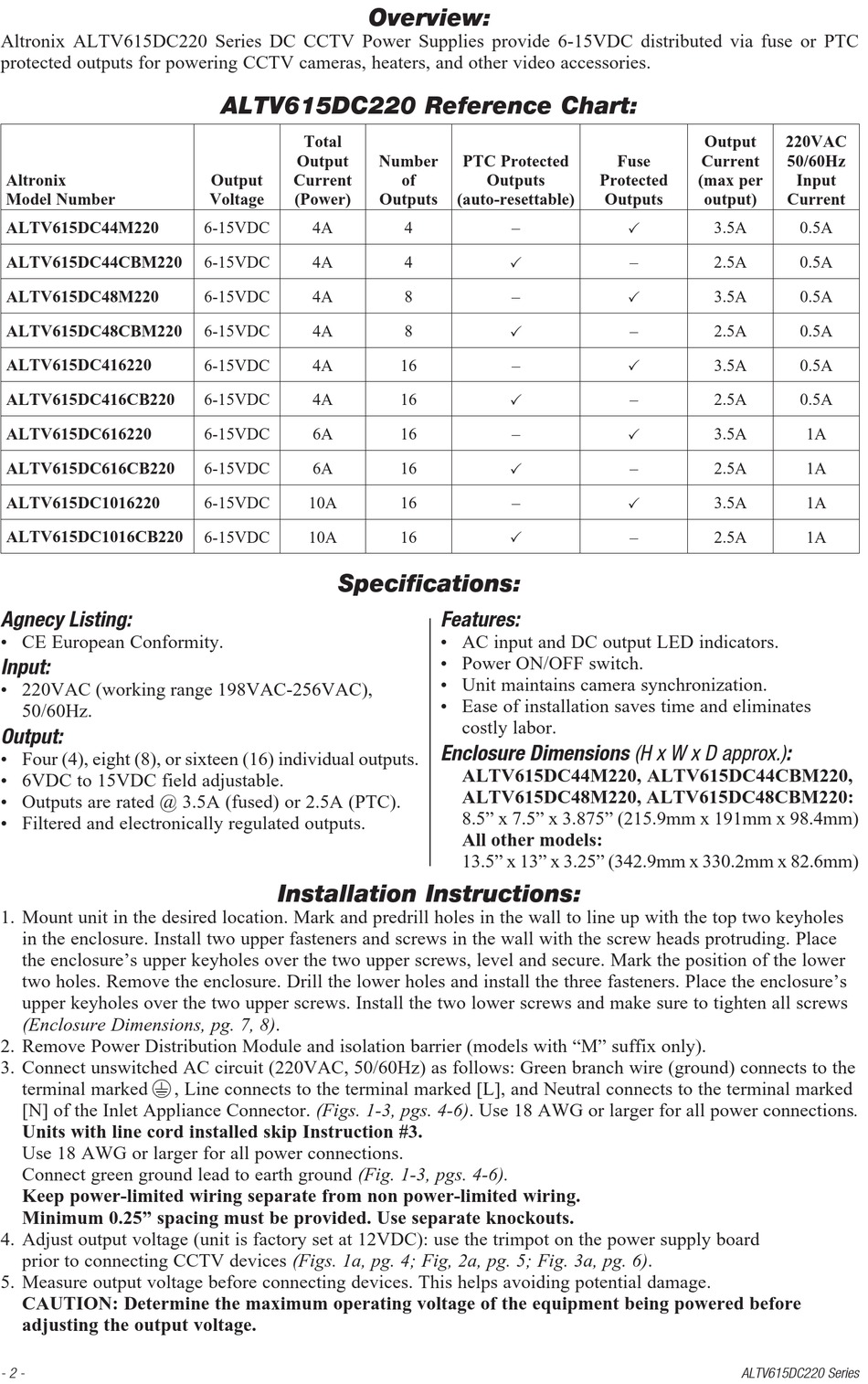

Altronix ALTV615DC220 Series DC CCTV Power Supplies provide 6-15VDC distributed via fuse or PTC
protected outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix
Model Number
ALTV615DC44M220
ALTV615DC44CBM220
ALTV615DC48M220
ALTV615DC48CBM220
ALTV615DC416220
ALTV615DC416CB220
ALTV615DC616220
ALTV615DC616CB220
ALTV615DC1016220
ALTV615DC1016CB220
Agnecy Listing:
• CE European Conformity.
Input:
• 220VAC (working range 198VAC-256VAC),
50/60Hz.
Output:
• Four (4), eight (8), or sixteen (16) individual outputs.
• 6VDC to 15VDC field adjustable.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Filtered and electronically regulated outputs.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes
in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place
the enclosure's upper keyholes over the two upper screws, level and secure. Mark the position of the lower
two holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's
upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pg. 7, 8).
220VAC, 50/60Hz, 0.5A
2. Remove Power Distribution Module and isolation barrier (models with "M" suffix only).
3. Connect unswitched AC circuit (220VAC, 50/60Hz) as follows: Green branch wire (ground) connects to the
Output Wiring
terminal marked
[N] of the Inlet Appliance Connector. (Figs. 1-3, pgs. 4-6). Use 18 AWG or larger for all power connections.
Units with line cord installed skip Instruction #3.
Use 18 AWG or larger for all power connections.
Connect green ground lead to earth ground (Fig. 1-3, pgs. 4-6).
Keep power-limited wiring separate from non power-limited wiring.
Minimum 0.25" spacing must be provided. Use separate knockouts.
4. Adjust output voltage (unit is factory set at 12VDC): use the trimpot on the power supply board
prior to connecting CCTV devices (Figs. 1a, pg. 4; Fig, 2a, pg. 5; Fig. 3a, pg. 6).
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
CAUTION: Determine the maximum operating voltage of the equipment being powered before
Trimpot
adjusting the output voltage.
MAIN FUSE
- 2 -
ALTV615DC220 Reference Chart:
Total
Output
Output Current
Voltage (Power)
6-15VDC 4A
6-15VDC 4A
6-15VDC 4A
6-15VDC 4A
6-15VDC 4A
6-15VDC 4A
6-15VDC 6A
6-15VDC 6A
6-15VDC 10A
6-15VDC 10A

Installation Instructions:

Input
, Line connects to the terminal marked [L], and Neutral connects to the terminal marked
PTC
used on
ALTV615DC44CBM220
BARRIER
Overview:
Number PTC Protected
of Outputs
Outputs (auto-resettable)
4
4
8
8
16
16
16
16
16
16

Specifications:

Features:
• AC input and DC output LED indicators.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates
costly labor.
Enclosure Dimensions (H x W x D approx.):
ALTV615DC44M220, ALTV615DC44CBM220,
ALTV615DC48M220, ALTV615DC48CBM220:
8.5" x 7.5" x 3.875" (215.9mm x 191mm x 98.4mm)
All other models:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
Fuse
Protected
Outputs
–
P
–
P
–
P
–
P
–
P
–
P
–
P
–
P
–
P
–
P
Output 220VAC
Current 50/60Hz
(max per Input
output) Current
3.5A 0.5A
2.5A 0.5A
3.5A 0.5A
2.5A 0.5A
3.5A 0.5A
2.5A 0.5A
3.5A 1A
2.5A 1A
3.5A 1A
2.5A 1A
ALTV615DC220 Series
