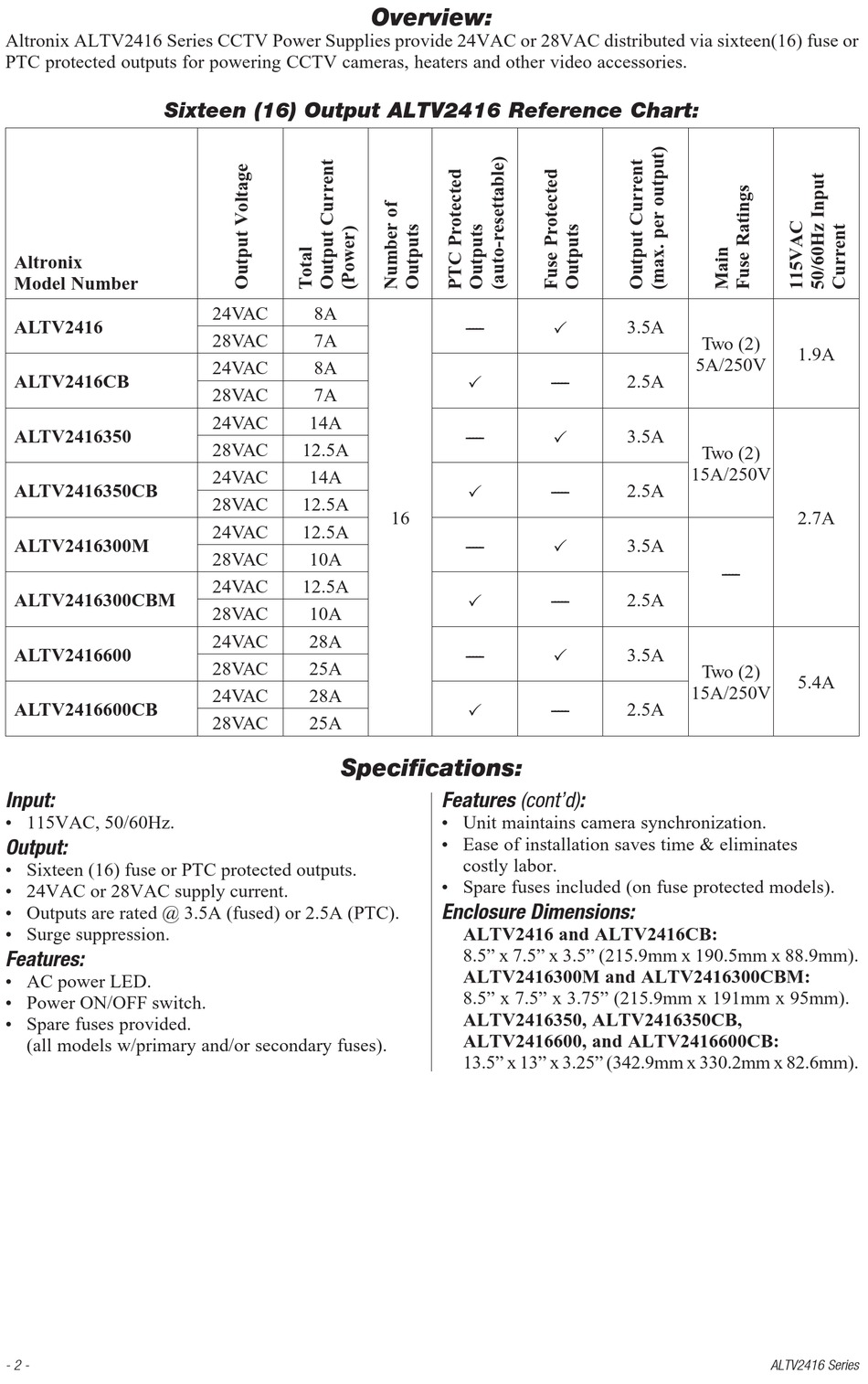

Altronix ALTV2416 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen(16) fuse or
PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Sixteen (16) Output ALTV2416 Reference Chart:
Altronix
Model Number
ALTV2416
ALTV2416CB
ALTV2416350
ALTV2416350CB
ALTV2416300M
ALTV2416300CBM
ALTV2416600
ALTV2416600CB
Input:
• 115VAC, 50/60Hz.
Output:
• Sixteen (16) fuse or PTC protected outputs.
• 24VAC or 28VAC supply current.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Features:
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided.
(all models w/primary and/or secondary fuses).
- 2 -
Overview:
24VAC 8A
28VAC 7A
24VAC 8A
28VAC 7A
24VAC 14A
28VAC 12.5A
24VAC 14A
28VAC 12.5A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 28A
28VAC 25A
24VAC 28A
28VAC 25A

Specifications:

-----
P
-----
P
-----
P
-----
P
16
-----
P
-----
P
-----
P
-----
P
Features (cont'd):
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates
costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions:
ALTV2416 and ALTV2416CB:
8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
ALTV2416300M and ALTV2416300CBM:
8.5" x 7.5" x 3.75" (215.9mm x 191mm x 95mm).
ALTV2416350, ALTV2416350CB,
ALTV2416600, and ALTV2416600CB:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
3.5A
Two (2)
5A/250V
2.5A
3.5A
Two (2)
15A/250V
2.5A
3.5A
-----
2.5A
3.5A
Two (2)
15A/250V
2.5A
ALTV2416 Series
1.9A
2.7A
5.4A
