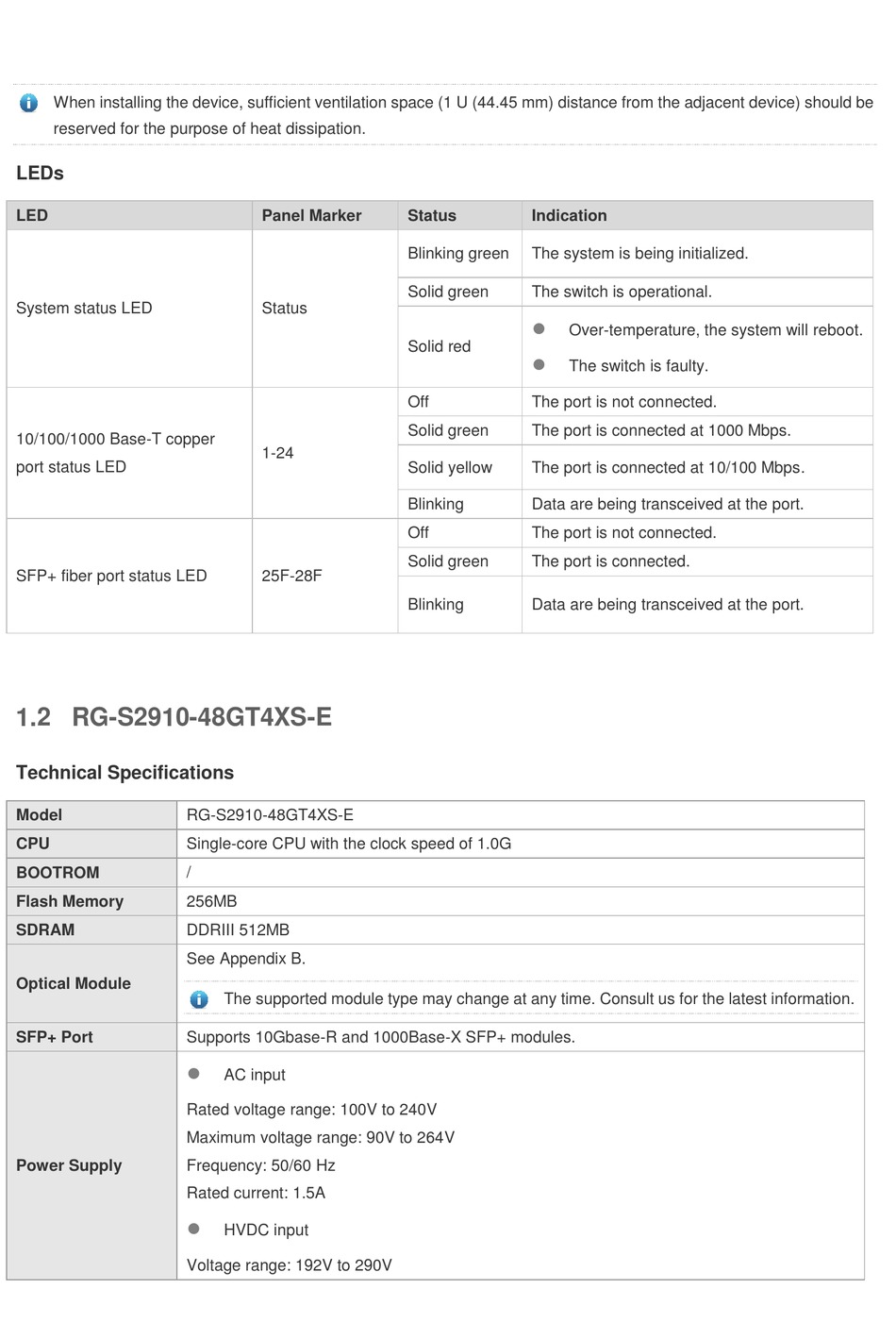

Ruijie Networks RG-S2910C-24GT2XS-P-E Hardware Installation And Reference Manual page 8

When installing the device, sufficient ventilation space (1 U (44.45 mm) distance from the adjacent device) should be
reserved for the purpose of heat dissipation.
LEDs
LED
System status LED
10/100/1000 Base-T copper
port status LED
SFP+ fiber port status LED
1.2 RG-S2910-48GT4XS-E
Technical Specifications
Model
CPU
BOOTROM
Flash Memory
SDRAM
Optical Module
SFP+ Port
Power Supply
Panel Marker
Status
1-24
25F-28F
RG-S2910-48GT4XS-E
Single-core CPU with the clock speed of 1.0G
/
256MB
DDRIII 512MB
See Appendix B.
The supported module type may change at any time. Consult us for the latest information.
Supports 10Gbase-R and 1000Base-X SFP+ modules.

AC input
Rated voltage range: 100V to 240V
Maximum voltage range: 90V to 264V
Frequency: 50/60 Hz
Rated current: 1.5A

HVDC input
Voltage range: 192V to 290V
Status Indication
Blinking green The system is being initialized.
Solid green The switch is operational.

Over-temperature, the system will reboot.
Solid red

The switch is faulty.
Off The port is not connected.
Solid green The port is connected at 1000 Mbps.
Solid yellow The port is connected at 10/100 Mbps.
Blinking Data are being transceived at the port.
Off The port is not connected.
Solid green The port is connected.
Blinking Data are being transceived at the port.
