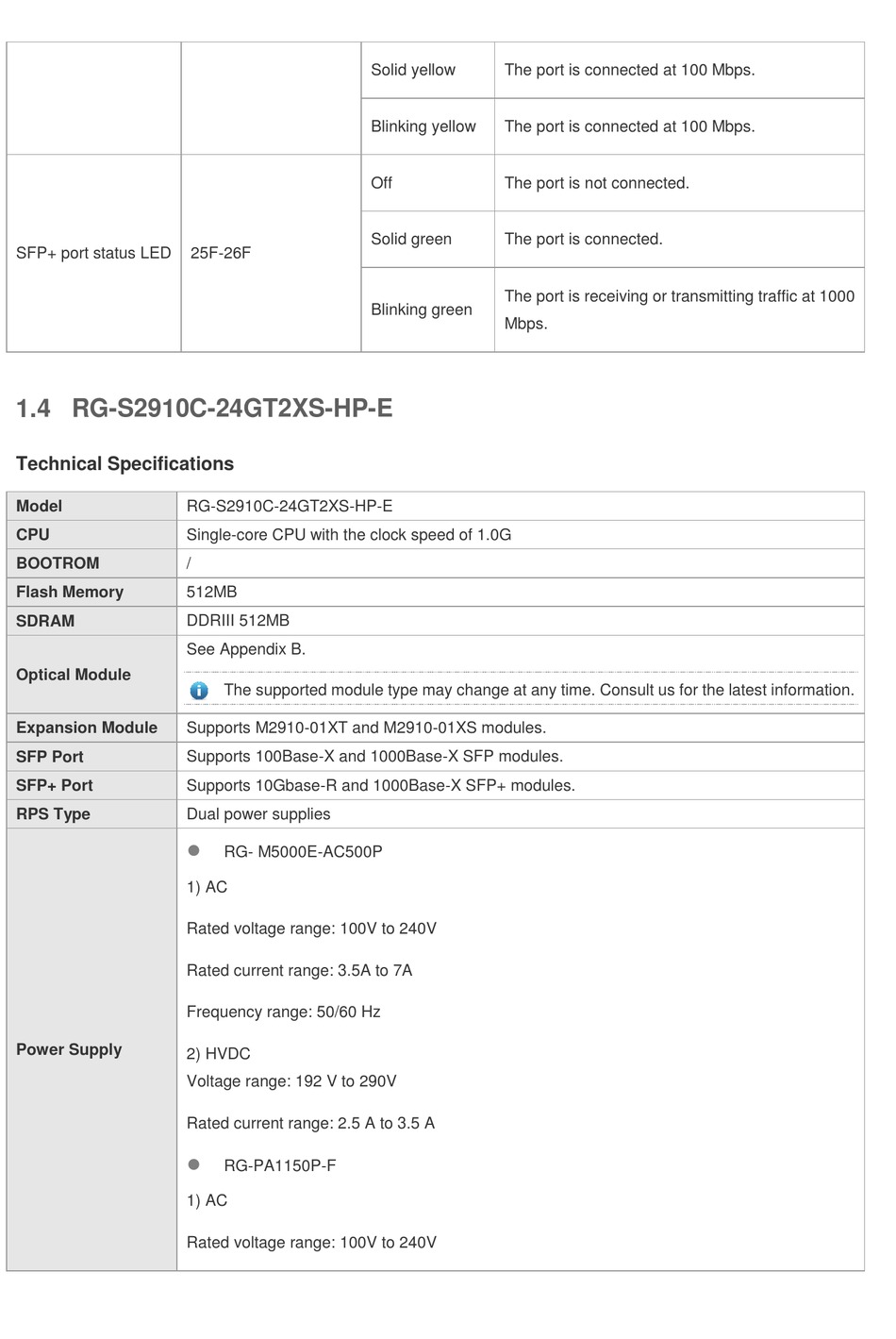

Ruijie Networks RG-S2910C-24GT2XS-P-E Hardware Installation And Reference Manual page 17

SFP+ port status LED
1.4 RG-S2910C-24GT2XS-HP-E
Technical Specifications
Model
CPU
BOOTROM
Flash Memory
SDRAM
Optical Module
Expansion Module
SFP Port
SFP+ Port
RPS Type
Power Supply
25F-26F
RG-S2910C-24GT2XS-HP-E
Single-core CPU with the clock speed of 1.0G
/
512MB
DDRIII 512MB
See Appendix B.
The supported module type may change at any time. Consult us for the latest information.
Supports M2910-01XT and M2910-01XS modules.
Supports 100Base-X and 1000Base-X SFP modules.
Supports 10Gbase-R and 1000Base-X SFP+ modules.
Dual power supplies

RG- M5000E-AC500P
1) AC
Rated voltage range: 100V to 240V
Rated current range: 3.5A to 7A
Frequency range: 50/60 Hz
2) HVDC
Voltage range: 192 V to 290V
Rated current range: 2.5 A to 3.5 A

RG-PA1150P-F
1) AC
Rated voltage range: 100V to 240V
Solid yellow The port is connected at 100 Mbps.
Blinking yellow The port is connected at 100 Mbps.
Off The port is not connected.
Solid green The port is connected.
The port is receiving or transmitting traffic at 1000
Blinking green
Mbps.
