Closed Loop Area Control - Dynojet Power Commander FC Installation Instructions Manual

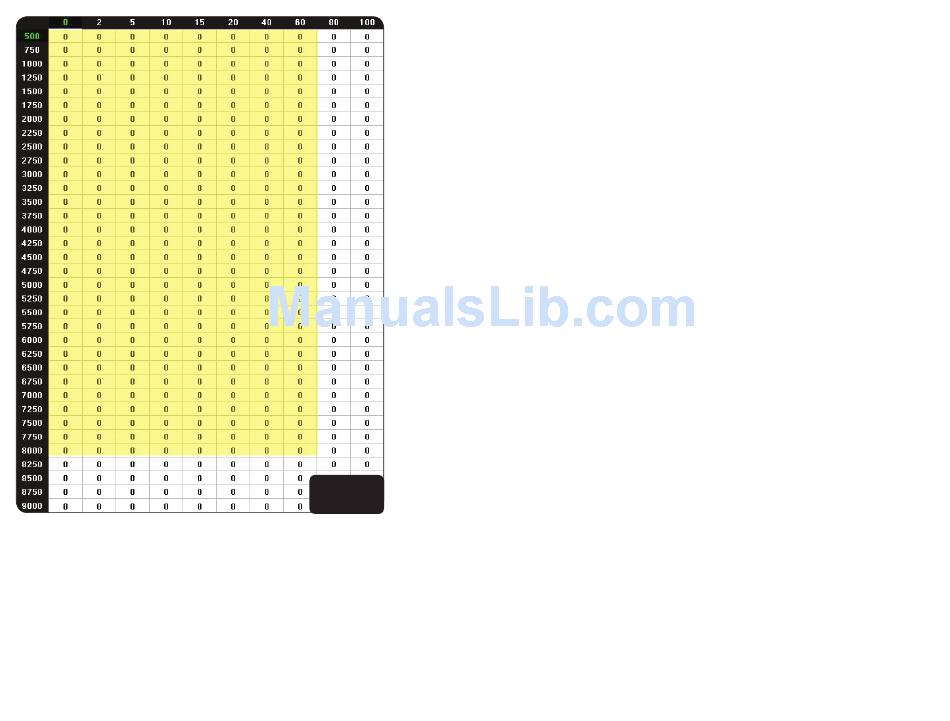

The PCFC for this model controls the stock closed loop area. This area is
represented by the highlighted cells shown in Figure G. The PCFC is designed to
achieve a target AFR of 13.6:1. To use this PCFC you must retain your stock O2
sensor.
It is not recommended to alter the values in the highlighted area unless instructed to
do so by a PCFC technician.
The closed loop range can be adjusted from the PCFC software by going to
Device Tools >Closed Loop Adjustment. In this window you can use the slider
bars to enrichen/lean the closed loop range. We do not recommend an adjustment
beyond +/- 20.
FIG.G
IFC16901 www.powercommander.com 2007-2014 Honda SH300i - 5
