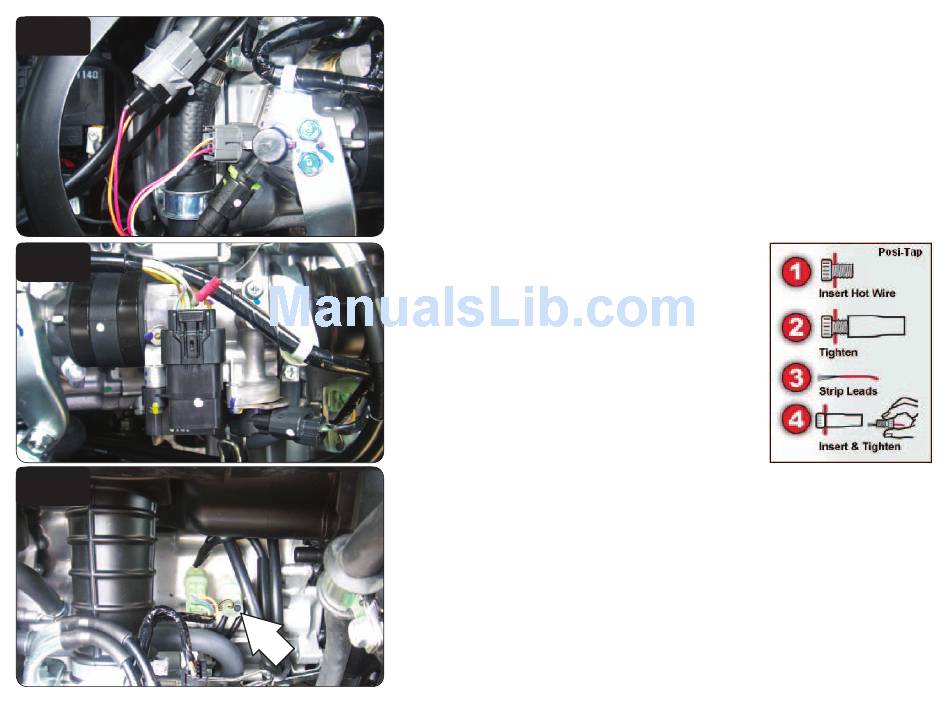

8 Attach the PCFC harness to the stock wiring harness and the fuel injector as
shown in Figure D.
9 Locate the Throttle Position Sensor (TPS)
connector.
The TPS connector is located on the throttle body
as shown in Figure E.
10 Using the supplied posi-tap, connect the grey wire
from the PCFC to the white/red wire.
11 Locate the stock O2 sensor connector.
The stock O2 sensor connector is located near the rear of the engine as
shown in Figure F. The connector is a clear 2-pin connector with a single
BLK/YEL wire.
12 Unplug this connector from the main wiring harness.
13 Plug the PCFC wiring harness in-line of the stock O2 sensor and the stock
wiring hanress.
14 Reinstall the battery access panel and the storage trunk.
2007-2014 Honda SH300i - 4
