FIG.A
FIG.B
FIG.C
IFC16901
www.powercommander.com
1
Lift up the seat.
2

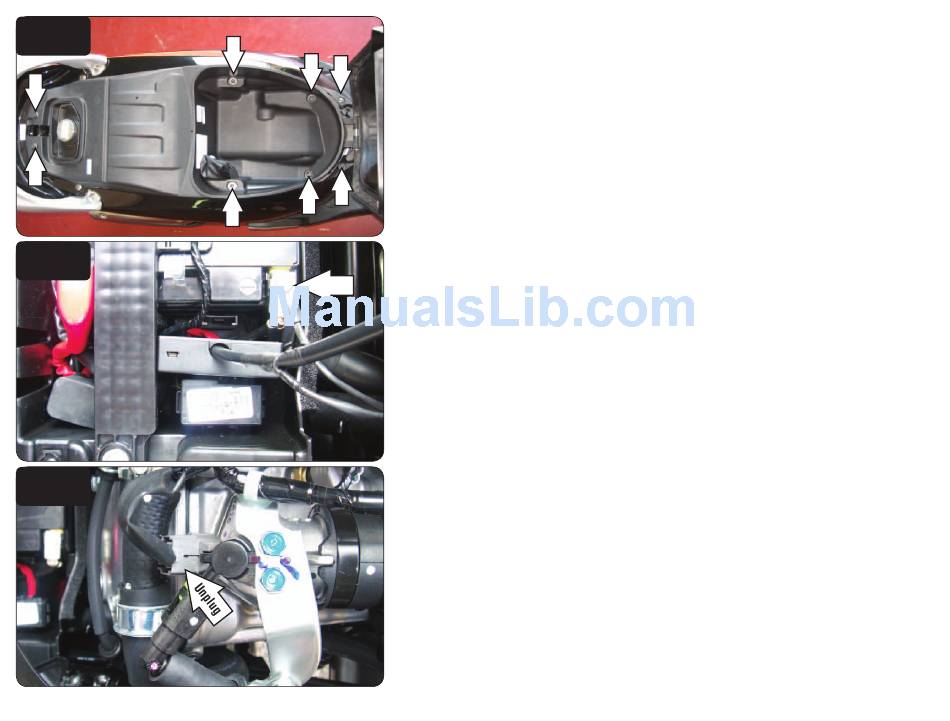

Remove the eight bolts as shown in Figure A.
3
Remove the plastic trunk to access the engine.
4
Remove the battery access panel.
Ground
5
Using the supplied velcro, secure the PCFC next to the opening in the battery.
Make sure to clean both surfaces with the alcohol swab before attaching.
6
Attach the ground wire from the PCFC to the negative side of the battery as
shown in Figure B.
7
Unplug the stock wiring harness from the fuel injector as shown in Figure C.
2007-2014 Honda SH300i - 3
