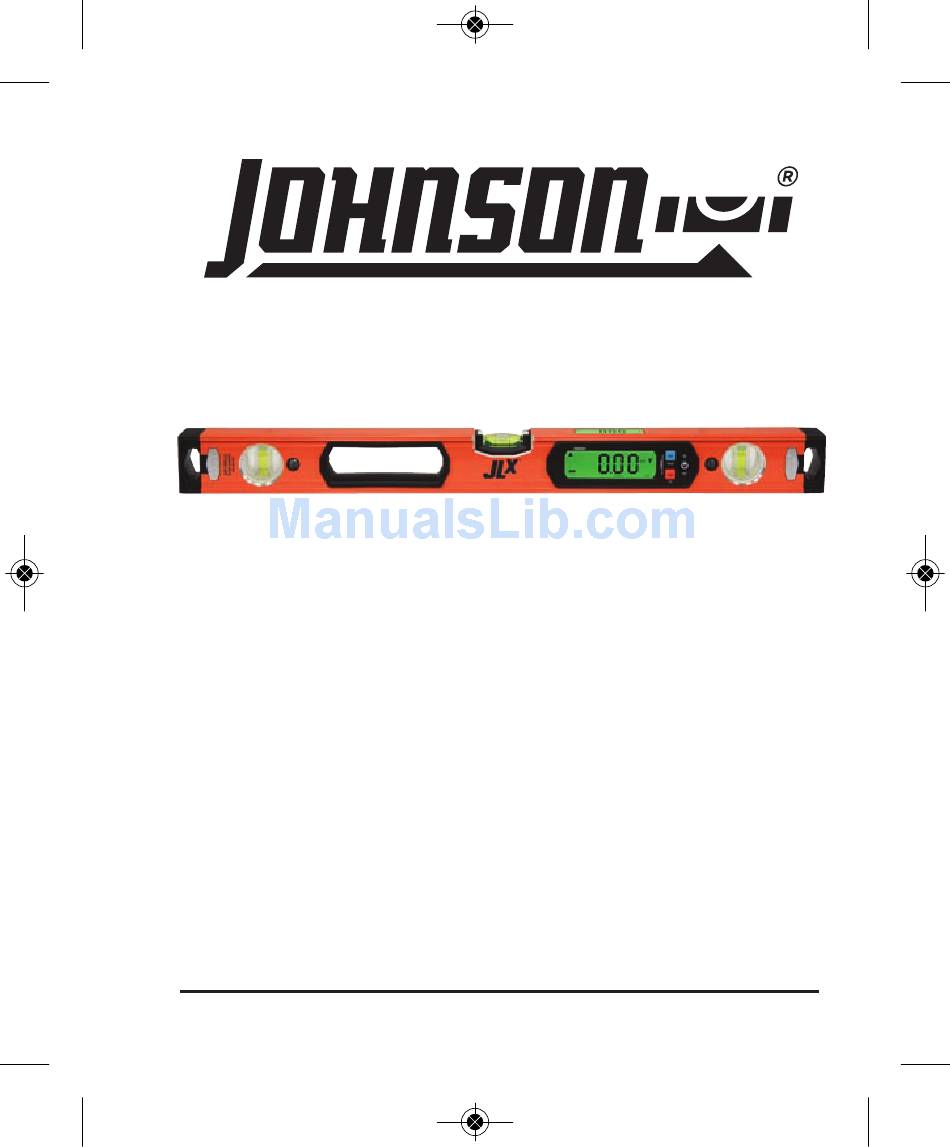

2842i_Manuals 4/27/18 2:08 PM Page 1
JLX
®
Series High-Accuracy Digital Level
Model No. 5700D
Instruction Manual
Congratulations on your choice of this JLX
®
Series High-Accuracy
Digital Level. Johnson Level's JLX
®
series products are designed for
professional applications and are engineered to help you work faster and
more accurately.
We suggest you read this instruction manual thoroughly before using the
instrument and save this instruction manual for future use.
©2018 Johnson Level & Tool
1

Advertisement

Table of Contents
loading

Related Manuals for Johnson Level & Tool JLX 5700D

Summary of Contents for Johnson Level & Tool JLX 5700D

  • Page 1 2842i_Manuals 4/27/18 2:08 PM Page 1 ® Series High-Accuracy Digital Level Model No. 5700D Instruction Manual Congratulations on your choice of this JLX ® Series High-Accuracy Digital Level. Johnson Level’s JLX ® series products are designed for professional applications and are engineered to help you work faster and more accurately.

  • Page 2: Table Of Contents

    2842i_Manuals 4/27/18 2:08 PM Page 2 Table of Contents 1. Kit Contents 7. Application Demonstrations 2. Features and Functions 8. Troubleshooting Guide 3. Location of Parts/Components 9. Technical Specifications 4. Battery Installation 10. Care and Handling 5. Using the Product 11.

  • Page 3: Features And Functions

    2842i_Manuals 4/27/18 2:08 PM Page 3 2. Features and Functions • Pre-programmed ADA compliance and drainage modes • Programmable operation mode • Top-read LCD display and main LCD display • Backlight feature on both LCD displays • Both LCD displays automatically invert when the level is in the inverted position •...

  • Page 4: Location Of Parts/Components

    2842i_Manuals 4/27/18 2:08 PM Page 4 3. Location of Parts/Components ® Series High-Accuracy Digital Level Unit of Measurement/ Horizontal Operating Mode Button Bubble Vial End Cap Ergonomic End Cap Release Button Hand Grip Top-Read Display Release Button Main Display Vertical Removable Unit Hold/Volume Bubble Vial...

  • Page 5: Battery Installation

    2842i_Manuals 4/27/18 2:08 PM Page 5 4. Battery Installation 1. Unscrew the battery cover screw in a counterclockwise direction and remove the battery cover. 2. Insert two “AA” alkaline batteries into the battery compartment according to the polarity illustrated inside. 3.

  • Page 6: Using The Product

    2842i_Manuals 4/27/18 2:08 PM Page 6 5. Using the Product Note: It is important to verify the calibration of the instrument. Please refer to the calibration section for further information. Power On the Level to power on the level. The unit will display a reading on both the main display and top-read display.
  • Page 7 2842i_Manuals 4/27/18 2:08 PM Page 7 Set Your Desired Unit of Measurement When powered on, the level will default to the most recently used unit of measurement. Tap to change the unit of measurement. Continue to tap to scroll through the following options: 1.
  • Page 8 2842i_Manuals 4/27/18 2:08 PM Page 8 For those modes that do not establish set limits (Manual, Roof Pitch, 22.5° and 45.0° only), the unit will begin to beep as you approach the desired angle. The level indicator arrows on the LCD displays will direct you to move that side of the level up or down, and the unit will beep faster the closer you are to the desired angle.
  • Page 9 2842i_Manuals 4/27/18 2:08 PM Page 9 e. To return to the Pipe setting, tap simultaneously to enter the configuration mode. f. Tap . “Pipe” will flash for five seconds on both the main display and top-read display. g. After five seconds, the main display reverts back to the preconfigured engineering unit, “Pipe”...
  • Page 10 2842i_Manuals 4/27/18 2:08 PM Page 10 1. Tap simultaneously. 2. Either “HI”, “LO”, “HILO” or “NONE” will flash on the LCD displays, indicating that you can now set your customized alarm mode. 3. Tap to set the desired alarm mode; continuing to tap will scroll through the programmable modes.
  • Page 11 2842i_Manuals 4/27/18 2:08 PM Page 11 Set Customized Reference Angle For some applications, it might be useful to set a reference other than 0°. Once the level is in either 22.5° or 45.0° mode, follow these steps to set your customized reference angle. If the level is inactive for five seconds during any of these steps, the level will return to the measuring mode.
  • Page 12 2842i_Manuals 4/27/18 2:08 PM Page 12 2. Tap a second time to set the backlight to 100%. 3. Tap a third time to set the backlight to off. Adjust the “On” Time of the Backlight The on time of the backlight refers to the time that the light remains on during inactive use.
  • Page 13 2842i_Manuals 4/27/18 2:09 PM Page 13 feature works well if you are in an awkward position or cannot see the LCD screen. It is also convenient to hold on an important measurement until you are ready to write it down or cut your material. It can also be used to set temporary reference values, where the reference value plus the relative value equals the absolute value.

  • Page 14: Calibrating The Product

    2842i_Manuals 4/27/18 2:09 PM Page 14 6. Calibrating the Product IMPORTANT: Although this product is factory calibrated, there a few environmental factors that can affects its accuracy. It is a recommended practice, as with any high precision measuring instrument, to check your level for accuracy. Verifying the Product Accuracy 1.
  • Page 15 2842i_Manuals 4/27/18 2:09 PM Page 15 Calibrating the Product It is recommended that the user calibrate the unit at the start of each critical job or when the level is subjected to drastic changes in temperature or has taken a fall. Do not move or shake the instrument during calibration, as this might result in measuring errors.
  • Page 16 2842i_Manuals 4/27/18 2:09 PM Page 16 One-Point Bubble Calibration Method 1. With the instrument powered on, hold the level against a flat surface such as a wall. Adjust the level until the bubble is centered in the horizontal vial. 2. Making sure that the position of the bubble in the horizontal vial does not change, press hold simultaneously.

  • Page 17: Application Demonstrations

    2842i_Manuals 4/27/18 2:09 PM Page 17 7. Application Demonstrations ADA Compliant Ramps – Set ramp angles and cross angles. Drainage Slope – Set drainage angles for proper slope to ensure adequate effluent removal from your piping systems. Relative Angles – Calculate relative angles using the hold feature.
  • Page 18 2842i_Manuals 4/27/18 2:09 PM Page 18 8. Troubleshooting Symptom Possible Cause Solution Unit will not power on Batteries depleted Replace batteries Battery case not secure Secure battery case with set screw Polarity reversed Install batteries with proper polarity Unit powers on briefly Batteries depleted Replace batteries Unit will not turn off...
  • Page 19 2842i_Manuals 4/27/18 2:09 PM Page 19 Symptom Possible Cause Solution Backlight turns off too Backlight timer too Adjust backlight timer quickly short Backlight doesn’t turn Backlight timer too long Adjust backlight timer Display inconsistent Unit out of calibration Calibrate unit Display not changing Hold feature is engaged Press hold button to...

  • Page 20: Technical Specifications

    2842i_Manuals 4/27/18 2:09 PM Page 20 9. Technical Specifications Operating Temperature Range 14°F – 122°F Temperature Range -4°F – 149°F Operating Humidity Electromagnetic Compatibility (EMC) Class II Dust and Water Protection IP65, or better Spirit Vial Accuracy 0.0005"/in, all positions / 0.5mm/m, all positions Vial Sensitivity 36arcSec...

  • Page 21: Care And Handling

    2842i_Manuals 4/27/18 2:09 PM Page 21 10. Care and Handling • This level is a precision tool that must be handled with care. • Avoid exposing unit to shock vibrations and extreme temperatures. • Make sure that the unit is turned off before moving or transporting it. •...

  • Page 22: Product Warranty

    2842i_Manuals 4/27/18 2:09 PM Page 22 11. Product Warranty Johnson Level & Tool offers a limited warranty on each of its products. You can obtain a copy of the limited warranty by contacting Johnson Level & Tool’s Customer Service Department as provided below or by visiting us online at www.johnsonlevel.com.

  • Page 23: Accessories

    2842i_Manuals 4/27/18 2:09 PM Page 23 12. Accessories Johnson ® accessories are available for purchase through authorized Johnson ® dealers. Use of non-Johnson ® accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.

  • Page 24: Johnson Level & Tool

    2842i_Manuals 4/27/18 2:09 PM Page 24 ©2018 Johnson Level & Tool...
