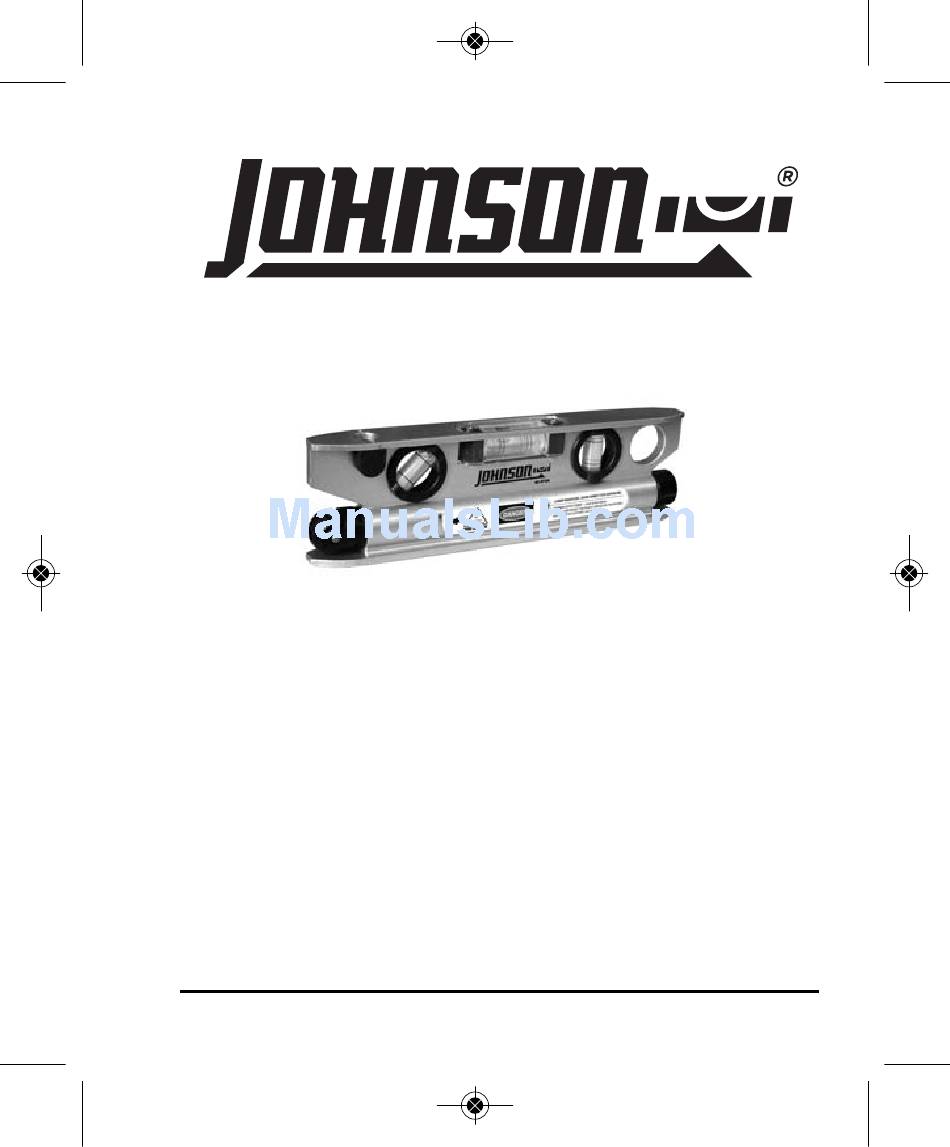

3920H_Manuals 10/12/10 2:21 PM Page 1
Magnetic Torpedo Laser Level
Model No. 40-6164
Instruction Manual
Congratulations on your choice of this Magnetic Torpedo Laser Level.
We suggest you read this instruction manual thoroughly before using
the instrument. Save this instruction manual for future use.
This tool emits one laser beam that is selectable as a point, vertical
line, or horizontal line. Visibility of the beam depends upon lighting
conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2010 Johnson Level & Tool - Rev. 1
1

Advertisement

Table of Contents
loading

Related Manuals for Johnson Level & Tool 40-6164

Summary of Contents for Johnson Level & Tool 40-6164

  • Page 1 3920H_Manuals 10/12/10 2:21 PM Page 1 Magnetic Torpedo Laser Level Model No. 40-6164 Instruction Manual Congratulations on your choice of this Magnetic Torpedo Laser Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    12. Warranty Registration 5. Location of Parts/Components 13. Accessories 6. Operating Instructions 7. Using the Product 1. Kit Contents Model No. 40-6164 Qty. Magnetic Torpedo Laser Level “AAA” Alkaline Batteries Instruction Manual with Warranty Card Soft-sided Pouch 2. Features and Functions •...

  • Page 3: Safety Instructions

    3920H_Manuals 10/12/10 2:21 PM Page 3 3. Safety Instructions Please read and understand all of the following instructions, prior to using this tool. Failure to do so, may void the warranty. DANGER! Class IIIa Laser Product Max. Power Output: Wavelength: 640-660nm THIS TOOL EMITS LASER RADIATION.

  • Page 4: Location/Content

    3920H_Manuals 10/12/10 2:21 PM Page 4 4. Location/Content of Warning Labels ©2010 Johnson Level & Tool - Rev. 1...

  • Page 5: Location Of Parts/Components

    3920H_Manuals 10/12/10 2:21 PM Page 5 5. Location of Part/Components 45° Vial Bubble Adjusting Bolt Vertical Vial Cross Check Vial Mode Conversion Power Button Head Rotating Head Battery Door Horizontal Vial Magnets Magnets 1/4" Screw Thread hole ©2010 Johnson Level & Tool - Rev. 1...

  • Page 6: Operating Instructions

    3920H_Manuals 10/12/10 2:21 PM Page 6 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Battery Remove battery door by rotating it counter- clockwise, put in two alkaline “AAA” batteries according to the illustrated polarity requirements, then install the battery door by Battery Door...
  • Page 7 3920H_Manuals 10/12/10 2:21 PM Page 7 Rotatable Line Status Lens Note: The rotating head can be turned only in the direction indicated by arrowhead sign. Rotating Direction Indication ©2010 Johnson Level & Tool - Rev. 1...

  • Page 8: Technical Specifications

    3920H_Manuals 10/12/10 2:21 PM Page 8 8. Technical Specifications Laser Wavelength 650nm ± 10 Laser Classification Class IIIa Maximum Power Output Accuracy ± 1/8"/50 ft. (±1mm/5m) Interior Range Up to 100 ft. (30m) depending upon light conditions Power Supply 2 “AAA” alkaline batteries Battery Life Approx.

  • Page 9: Application Demonstrations

    3920H_Manuals 10/12/10 2:21 PM Page 9 9. Application Demonstrations Projects one laser point Projects one horizontal laser line Projects one vertical laser line ©2010 Johnson Level & Tool - Rev. 1...

  • Page 10: Care And Handling

    3920H_Manuals 10/12/10 2:21 PM Page 10 10. Care and Handling • This laser unit is a precision tool that must be handled with care. • Avoid exposing unit to shock vibrations and extreme temperatures. • Before moving or transporting the unit, make sure that the unit is turned off. •...

  • Page 11: Warranty Registration

    3920H_Manuals 10/12/10 2:21 PM Page 11 NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Dept.

  • Page 12: Accessories

    3920H_Manuals 10/12/10 2:21 PM Page 12 13. Accessories Johnson ® accessories are available for purchase through authorized Johnson ® dealers. Use of non-Johnson ® accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.

Table of Contents
