Johnson Level & Tool 40-6065 Instruction Manual

Digital laser level & angle locator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

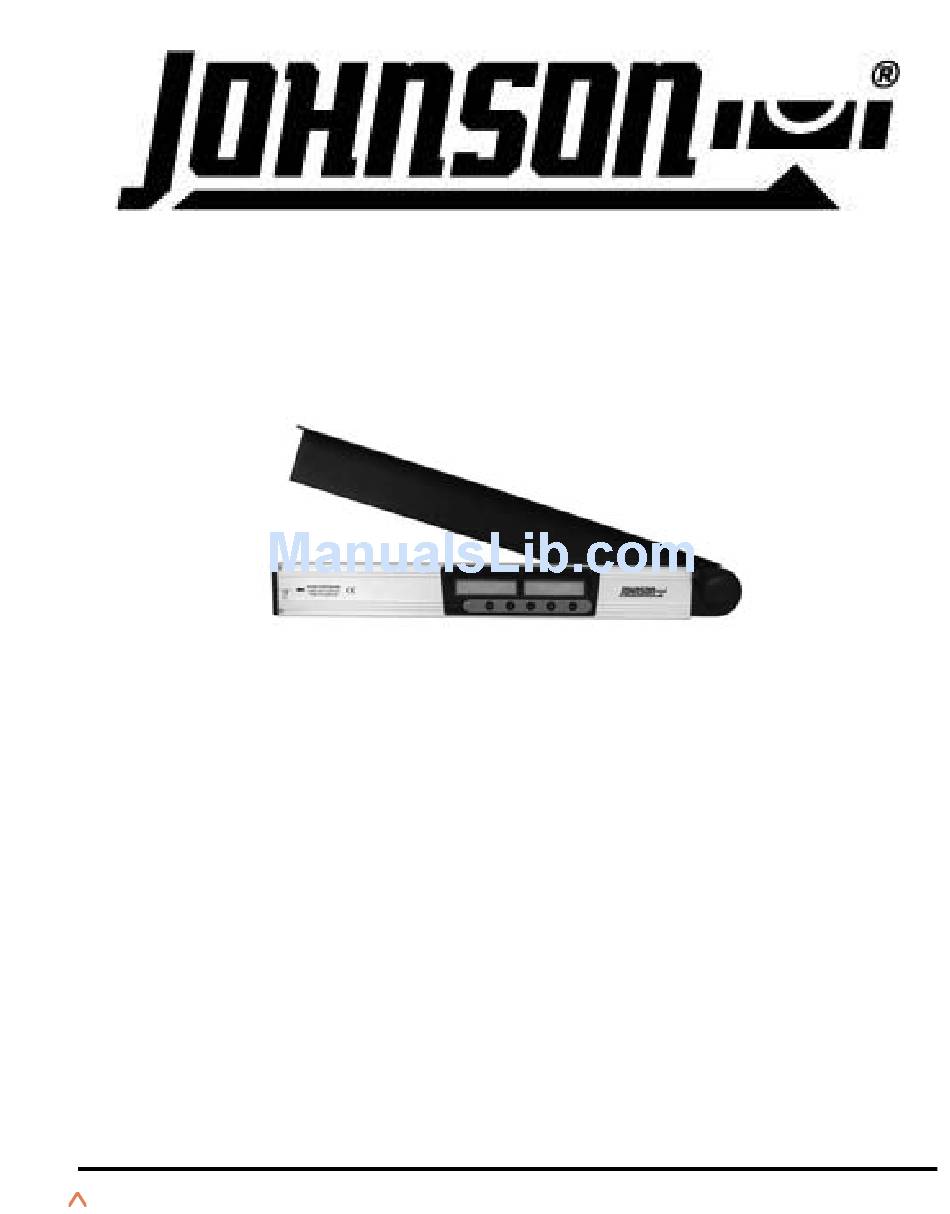

Digital Laser Level & Angle Locator
Model No. 40-6065
Instruction Manual
Congratulations on your choice of this Digital Laser Level & Angle
Locator. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2009 Johnson Level & Tool - Rev. 1
1

Advertisement

Table of Contents
loading

Related Manuals for Johnson Level & Tool 40-6065

Summary of Contents for Johnson Level & Tool 40-6065

  • Page 1 Digital Laser Level & Angle Locator Model No. 40-6065 Instruction Manual Congratulations on your choice of this Digital Laser Level & Angle Locator. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    Table of Contents 1. Kit Contents 7. Using the Product 2. Features and Functions Self-Check and Calibration 3. Safety Instructions Technical Specifications 4. Location/Content 10. Care and Handling of Warning Labels 11. Product Warranty 5. Location of Parts/Components 6. Operating Instructions 1.

  • Page 3: Safety Instructions

    3. Safety Instructions Please read and understand all of the following instructions, prior to using this tool. Failure to do so, may result in bodily injury. ATTENTION IMPORTANT • Read all instructions prior to operating this laser tool. Do not remove any labels from tool. •...

  • Page 4: Location/Content

    4. Location/Content of Warning Labels ©2009 Johnson Level & Tool - Rev. 1...

  • Page 5: Location Of Parts/Components

    5. Location of Part/Components Battery Compartment Angle Level Arm LCD Displays Laser Point Locking Panel Screw ©2009 Johnson Level & Tool - Rev. 1...

  • Page 6: Operating Instructions

    6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation 1. Make sure the instrument is turned off. 2. Open the battery cover. Take out the old batteries and put the new batteries in paying attention to the polarity.

  • Page 7: Using The Product

    7. Using the Product Key Guide Display for Angle Locator Display for Digital Level Power Calibration Sound Hold Laser Mode The instrument has six operating keys with their functions below: Power Key Power on and off the instrument by pressing this key. The instrument will beep twice when turning it on and off.
  • Page 8 CAL Key The calibration key is used for re-calibrating the instrument in both the horizontal and vertical direction. Refer to Section 8 “Calibration” for details. Mode Key Push the MODE key to switch from one dimension to another. This controls which dimension your electronic module will measure in.
  • Page 9 Mode Automatic Shut-off This instrument will shut-off automatically if no operation is received within 20 minutes. Low-power Indication The battery symbol will flash on the LCD when the battery power is low. Replace the batteries as soon as possible. Battery Symbol Incline Indication Arrows The following figure shows that moving the angle level according to the indicated direction arrows is necessary if you want to position the...
  • Page 10 Locking Arm When the surface is long, turn the angle level arm to 180º, then tighten the locking screw clockwise. You can lock the arm at any angle within the range of 0º to 180º. The laser point will be parallel with the reference plane Reference plane Display window Measuring the inclining angle to...

  • Page 11: Self-Check And Calibration

    Measuring an angle. 8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. To guarantee the best measuring precision of the incline, vertical and leveling plane: Calibrate before first use. Before important measurements.
  • Page 12 Vertical Calibration Put the angle level on a smooth vertical plane and observe the LCD display. Note the reading after 10 seconds. Then turn the angle level 180º on the same plane. After another ten seconds note the second angle reading. The calibration is necessary if the difference between the two measuring readings is over 0.1%.

  • Page 13: Technical Specifications

    9. Technical Specifications Laser Wavelength 650nm ± 10 Laser Classification Class IIIa Maximum Power Output Laser Accuracy ± 1/8"/50 ft. (±0.2mm/m) Working Range Angle 0º-182.5º Accuracy Angle ±0.1º Range 0º to 90º Resolution 0.1º or 0.1% Accuracy ±0.1º for 0º and 90º and ±0.2º...

  • Page 14: Care And Handling

    10. Care and Handling This laser unit is a precision tool that must be handled with care. • Avoid exposing unit to shock vibrations and extreme temperatures. • Before moving or transporting the unit, make sure that the unit • is turned off.

  • Page 15: Product Warranty

    11. Product Warranty Johnson Level & Tool offers a one year limited warranty on each its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department as provided below or by visiting us online at www.johnsonlevel.com.
  • Page 16 ©2009 Johnson Level & Tool - Rev. 1...
