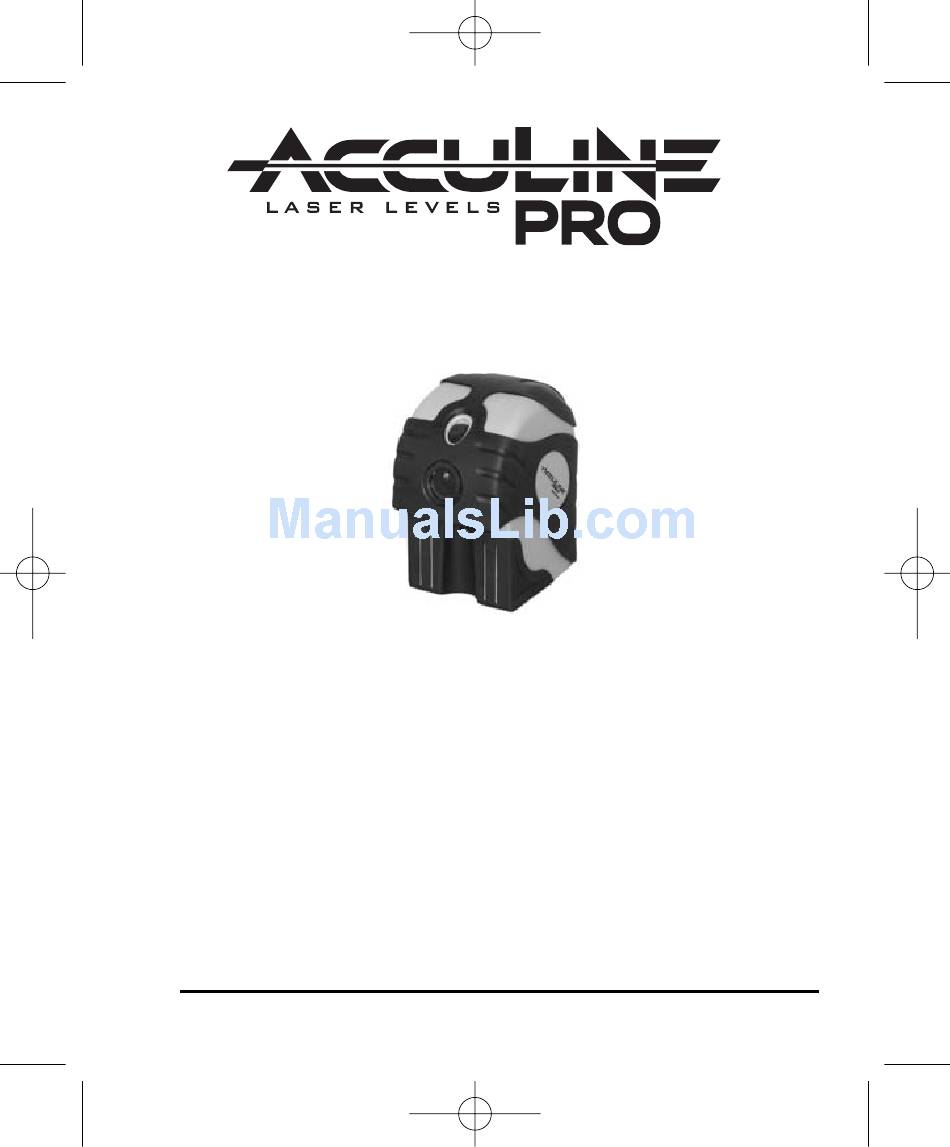

Self-Leveling Three-Beam Laser Dot
Model No. 40-6675
Instruction Manual
Congratulations on your choice of this Self-Leveling Three-Beam Laser
Dot. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This tool emits three laser beams, which projects a series of visible
points on surfaces around the product (front, up and down). Beam
visibility depends upon lighting conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply with CFR
21, parts 1040 .10 and 1040 .11 as well as international safety rule
IEC 285.
©2008 Johnson Level & Tool
1
Advertisement
Table of Contents
Related Manuals for Johnson Level & Tool 40-6675
Summary of Contents for Johnson Level & Tool 40-6675
- Page 1 11:37 AM Page 1 ® Self-Leveling Three-Beam Laser Dot Model No. 40-6675 Instruction Manual Congratulations on your choice of this Self-Leveling Three-Beam Laser Dot. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
-
Page 2: Table Of Contents
1282H-English 6/11/08 11:37 AM Page 2 Table of Contents 1. Kit Contents Self-Check and Calibration 2. Features and Functions Technical Specifications 3. Safety Instructions Application Demonstrations 4. Location/Content 10. Care and Handling of Warning Labels 11. Product Warranty 5. Location of Parts/Components 12. -
Page 3: Safety Instructions
1282H-English 6/11/08 11:37 AM Page 3 3. Safety Instructions Please read and understand all of the following instructions, prior to using this tool. Failure to do so, may void the warranty. ATTENTION IMPORTANT • Read all instructions prior to operating this laser tool. Do not remove any labels from tool. - Page 4 1282H-English 6/11/08 11:37 AM Page 4 CAUTION! Class IIIa Laser Product Max. Power Output: ≤ 5mW Wavelength: 625-645nm THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE. CAUTION: If using this product with any type of tinted goggles, please note safety warning below.
- Page 5 1282H-English 6/11/08 11:37 AM Page 5 5. Location of Part/Components Power LED On/Off Indicator Compensator lock and On/Off Switch Battery door/lock Calibration port plug Laser output window Laser output window Laser output window Battery door Calibration port Magnets plug 1/4” screw thread hole ©2008 Johnson Level &...
-
Page 6: Operating Instructions
1282H-English 6/11/08 11:37 AM Page 6 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Alkaline Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries. - Page 7 1282H-English 6/11/08 11:37 AM Page 7 Using the Instrument Power on/off Turn the compensator lock on/off switch in the direction indicated by the arrow. To unlock and turn laser on. To lock and turn laser off. Note: Product must be within ± 3° of level for self-leveling feature to function properly.
-
Page 8: Self-Check And Calibration
1282H-English 6/11/08 11:37 AM Page 8 7. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Figure 1 Accuracy Self-Check - Plumb point accuracy self-check 1. As shown in figure 1, put the unit on the ground in the direction shown in figure 1-1. - Page 9 1282H-English 6/11/08 11:37 AM Page 9 Accuracy Self-Check - Horizontal Laser 1. Set the instrument on a level surface such as a flat head tripod centered between two walls (marked 1 & 2) approximately 25 feet apart. (See fig. 1). 2.
- Page 10 1282H-English 6/11/08 11:37 AM Page 10 Calibration 1. Locate the front and side calibration port rubber plugs. 2. Carefully remove the rubber plugs. 3. Compensator must be unlocked and power on before making calibration adjustments. 4. Use a 3mm Allen wrench. 5.
-
Page 11: Technical Specifications
1282H-English 6/11/08 11:37 AM Page 11 8. Technical Specifications Laser Wavelength 635nm±10 Laser Classification Class IIIa ≤5mW Maximum Power Output Accuracy ±1/8"/50 ft. (±2mm/10m) Interior Range Up to 100 ft. (30m) diameter depending upon light conditions Self-Leveling Range ± 3° Power Supply 3 “AA”... -
Page 12: Application Demonstrations
1282H-English 6/11/08 11:37 AM Page 12 9. Application Demonstrations Plumb reference for lamp installation Reference for fence installation Reference for pipeline installation Reference for dormer installation Reference for door frame installation Reference for construction cubic partition Reference for vertical partition ©2008 Johnson Level &... -
Page 13: Care And Handling
1282H-English 6/11/08 11:37 AM Page 13 10. Care and Handling This laser unit is a precision tool that must be handled with care. • Avoid exposing unit to shock vibrations and extreme temperatures. • Before moving or transporting the unit, make sure that the unit •... -
Page 14: Product Registration
1282H-English 6/11/08 11:37 AM Page 14 Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center. Proof of purchase is required. NOTE: The user is responsible for the proper use and care of the product. -
Page 15: Accessories
1282H-English 6/11/08 11:37 AM Page 15 13. Accessories AccuLine Pro ® accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
