EXAMPLE SEQUENCES

There are several example sequences available. Click the Example
Sequences button and the window shown in Figure 15 appears.
To enable any of the sequences, click on the relevant sequence
button, as shown in Figure 16. The sequence runs immediately
and the output changes accordingly. To return to the main
window, click the Back to the AD5758 button.

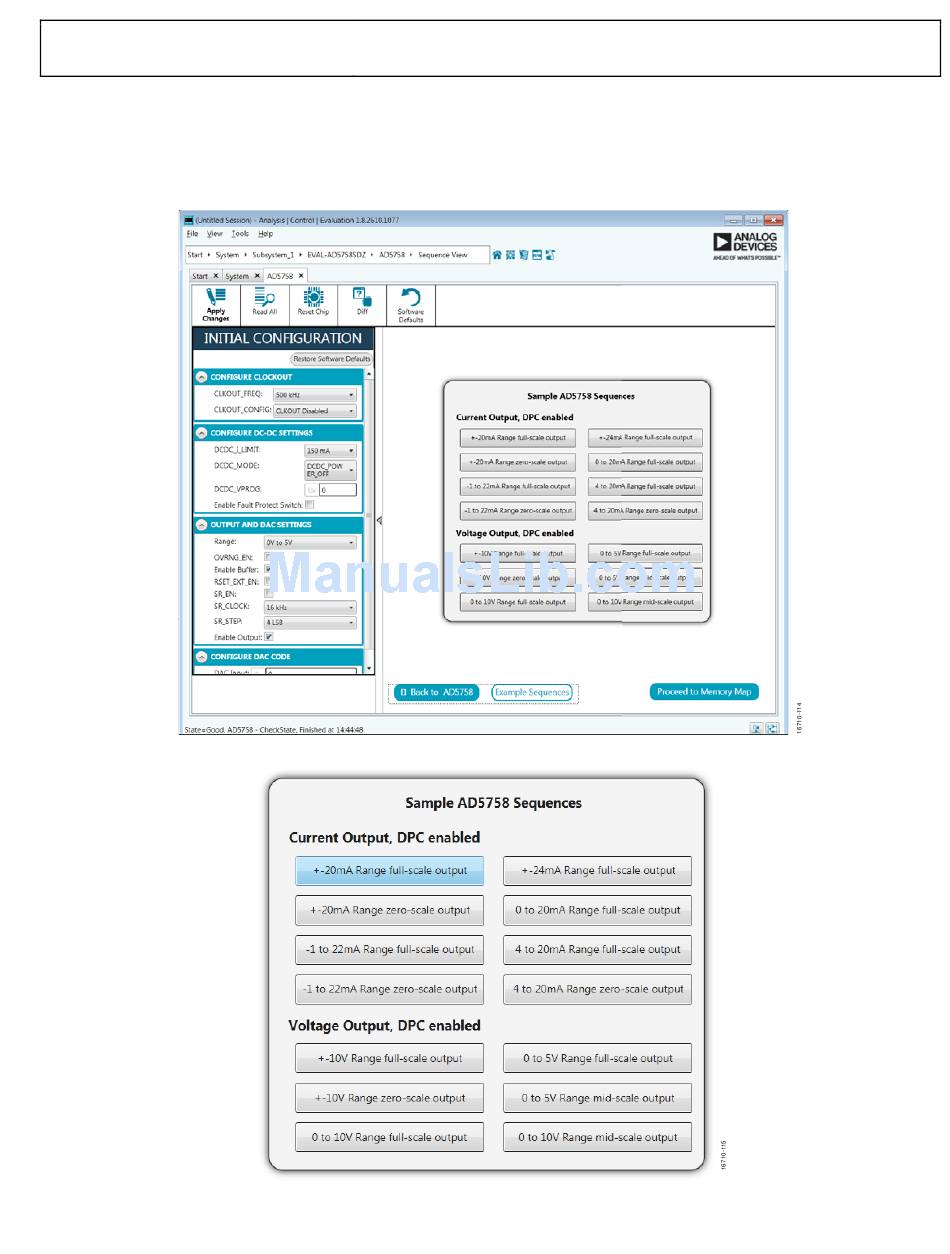

Figure 15. Example Sequences Window
Figure 16. Selecting an Example Sequence
