EXAMPLE SEQUENCES

There are several example sequences available. Click the Example
Sequences button (Label V, Figure 8) and the window shown in
Figure 15 appears. To enable any of the sequences, click on the
relevant sequence button, as shown in Figure 16. The sequence
runs immediately and the output changes accordingly. To return
Figure 14. AD5753 Analog Diagnostic Results Register
to the main window, click the Back to AD5753 button.

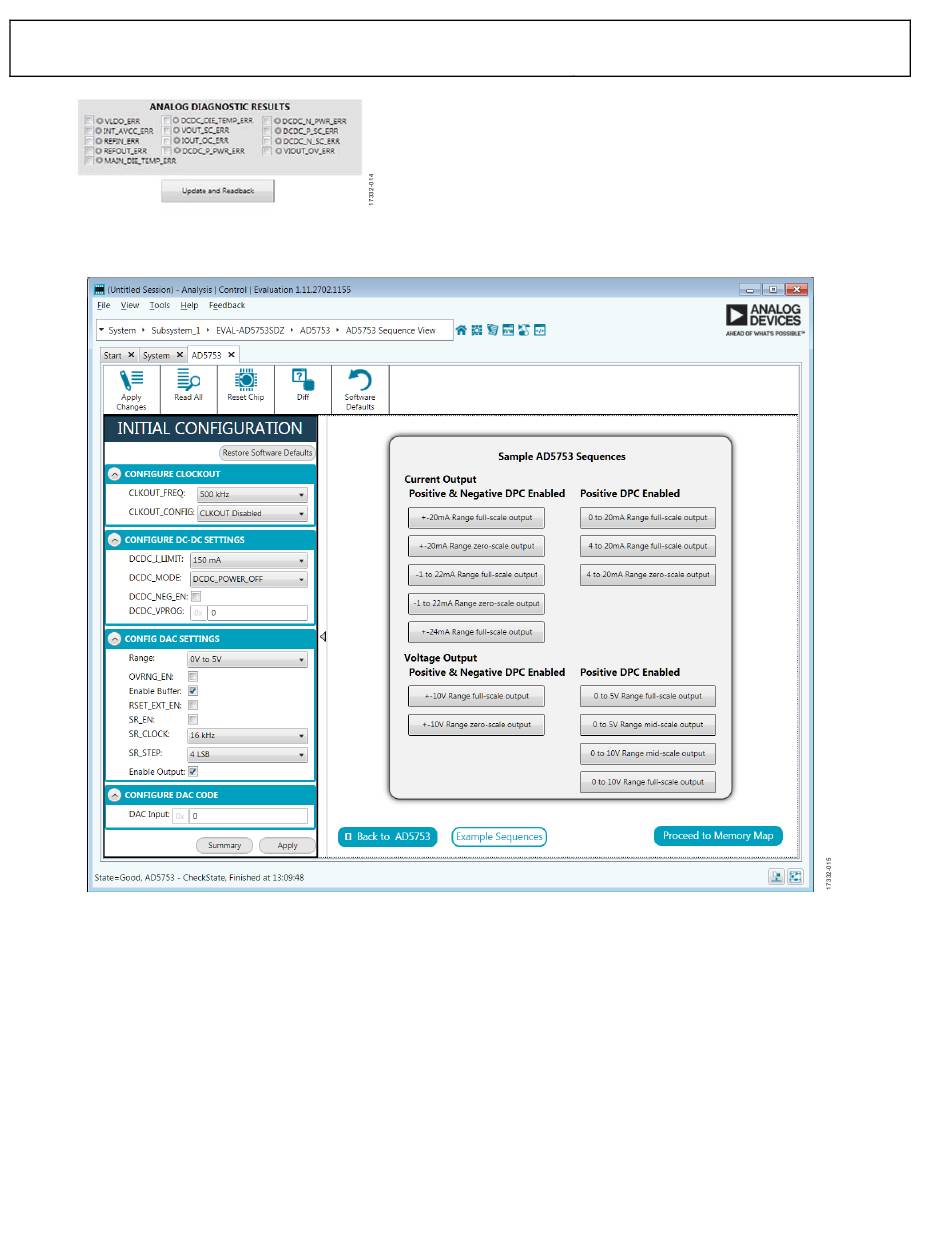

Figure 15. Example Sequences Window
