6. A new window appears as shown in Figure 5. Find the
Board.AD5758 plug-in and click the Install Selected button.
The EVAL-AD5758SDZ plug-in is now installed and is
displayed as shown in Figure 6.

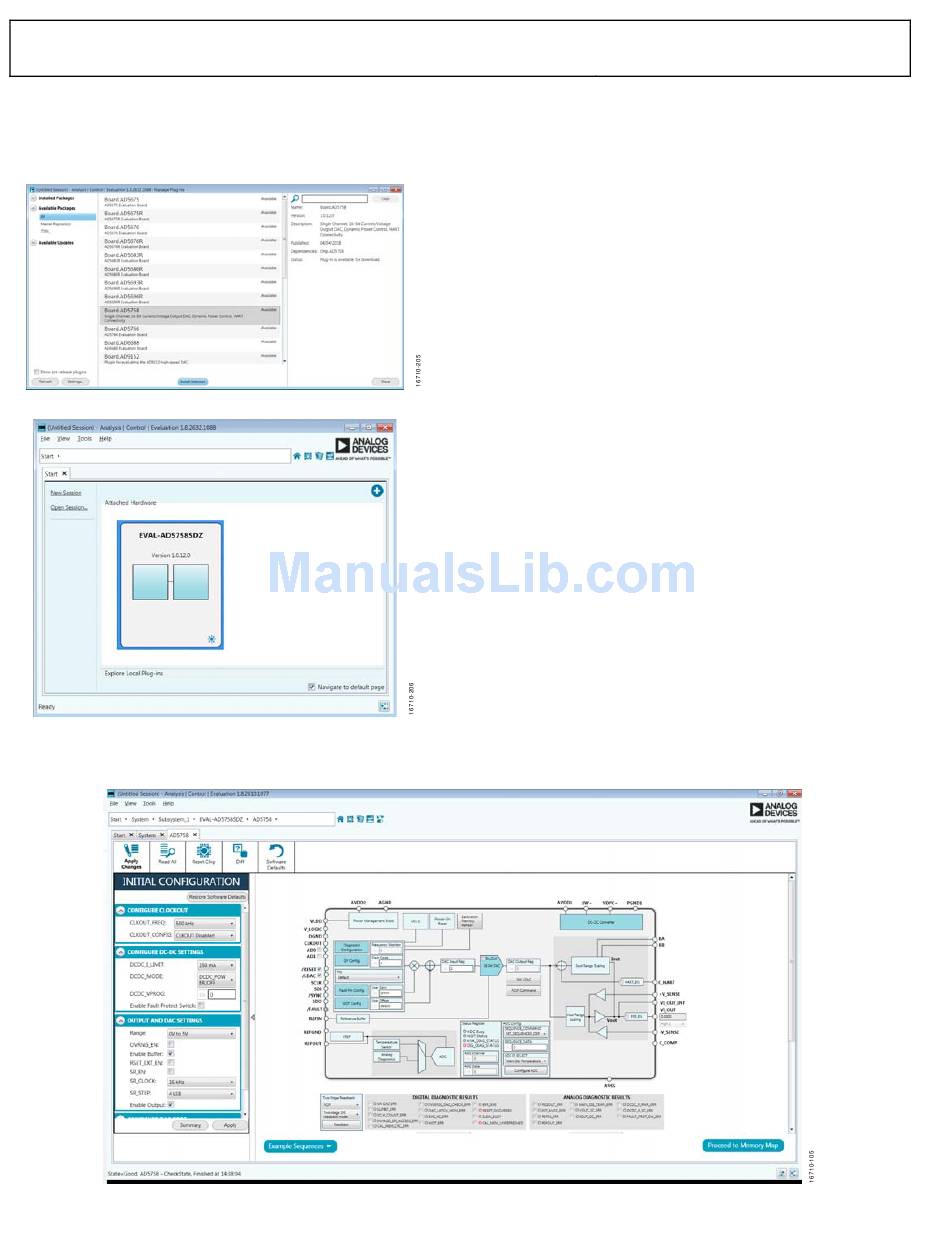

Figure 5. Plug-In Manager Window
Figure 6. Attached Hardware Section when the EVAL-AD5758SDZ is
Connected
7.
Figure 7. AD5758 Block Diagram in the
Rev. 0 | Page 6 of 20
EVAL-AD5758
Double-click EVAL-AD5758SDZ to open the
block diagram (see Figure 7). The INITIAL CONFIG-
URATION menu appears on the left. This location is
where several register settings can be configured and are
written to the device in the appropriate order. The DIG_
DIAG_STATUS, RESET_OCCURED, and CAL_MEM_
UNREFRESHEDLED indicators are highlighted red by
default. Writing the initial configuration values clears these
error flags. If the device is power cycled, or if the USB cable
is disconnected and reconnected while the
open, contact with the EVAL-AD5758SDZ may be lost. If
contact is lost, click the System tab. Then, click the USB
symbol on the EVAL-AD5758SDZ, and then click Acquire
to communicate with the EVAL-AD5758SDZ again.
ACE Software
User Guide
AD5758
ACE software is
