Digital connector cabling

Table 3-5 lists the digital I/O connector, applicable cables and accessory equipment. The x in the compatible
cable name indicates the length in feet of the cable.
Connector type
Compatible cables
Compatible accessory products
1
19
Female connector
1
20
37
19

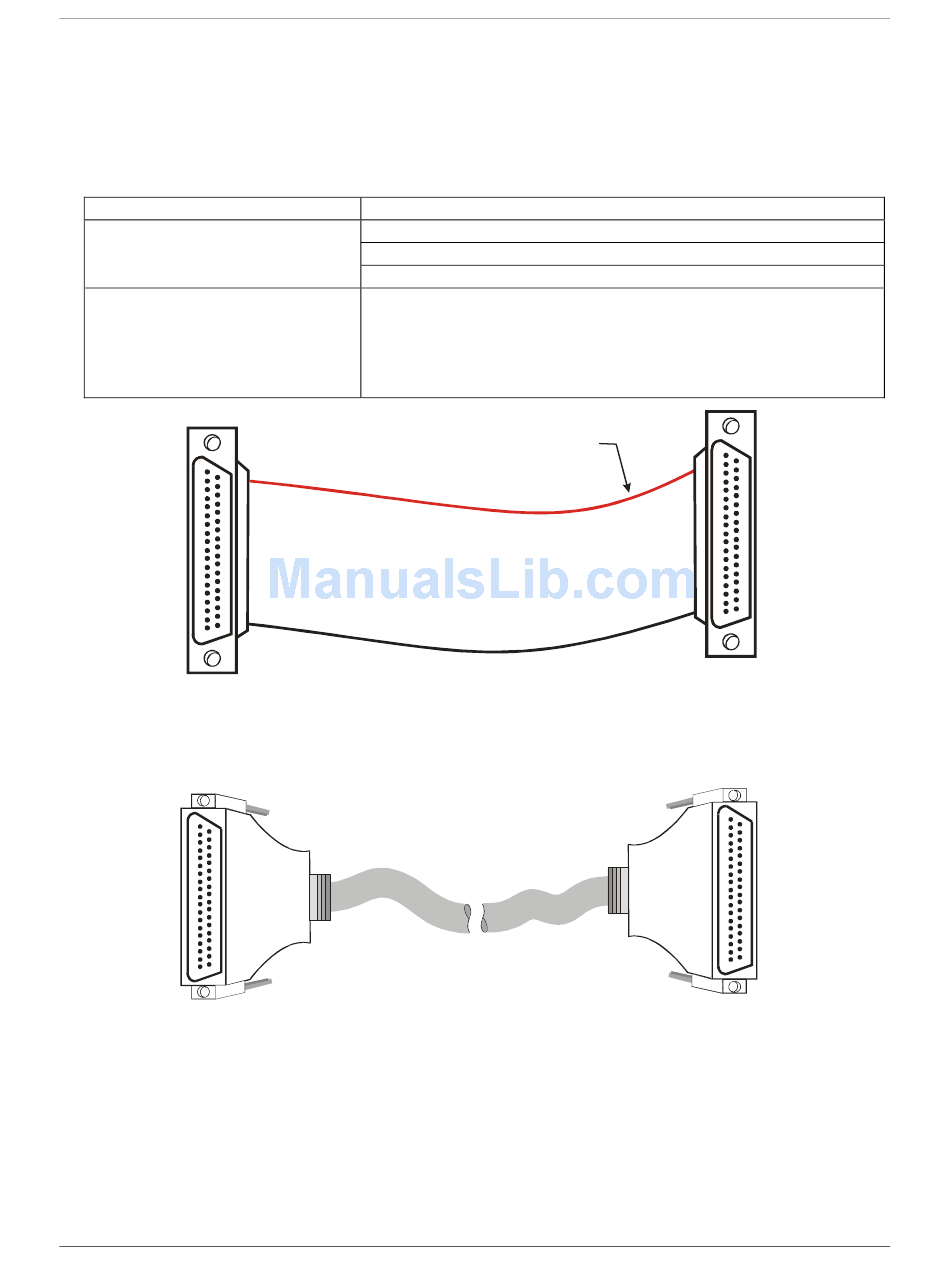

Table 3-5. Digital connector and accessory equipment
37-pin D-type, shielded
C37FF-x (Figure 3-13)
C37FFS-x (Figure 3-14)
C37FM-x (Figure 3-15)
CIO-MINI37
SSR-RACK24
SSR-RACK08
CIO-ERB24
CIO-ERB08
20
37
Figure 3-13. C37FF-x cable
Figure 3-14. C37FFS-x cable
The red stripe
identifies pin # 1
