Screw terminal wiring

The miniLAB 1008 has two rows of screw terminals. Each row has 15 connections. Pin numbers are identified
in Figure 3-3 . The pins are labeled for eight-channel single-ended mode operations.
Screw terminal pins 1-15
The screw terminals on the left edge of the miniLAB 1008 (pins 1 to 15) provide the following connections:
! Eight analog input connections (
! Four GND connections (
! One calibration terminal (
!
Two power connectors (
Screw terminal pins 16-30
The screw terminals on the right edge of the miniLAB 1008 (pins 16 to 30) provide the following connections:
! Four digital I/O connections (
! Two analog output connections (
! One external event counter connection (
! One testing and calibration terminal (
! Five ground connections (
! Two power connectors (

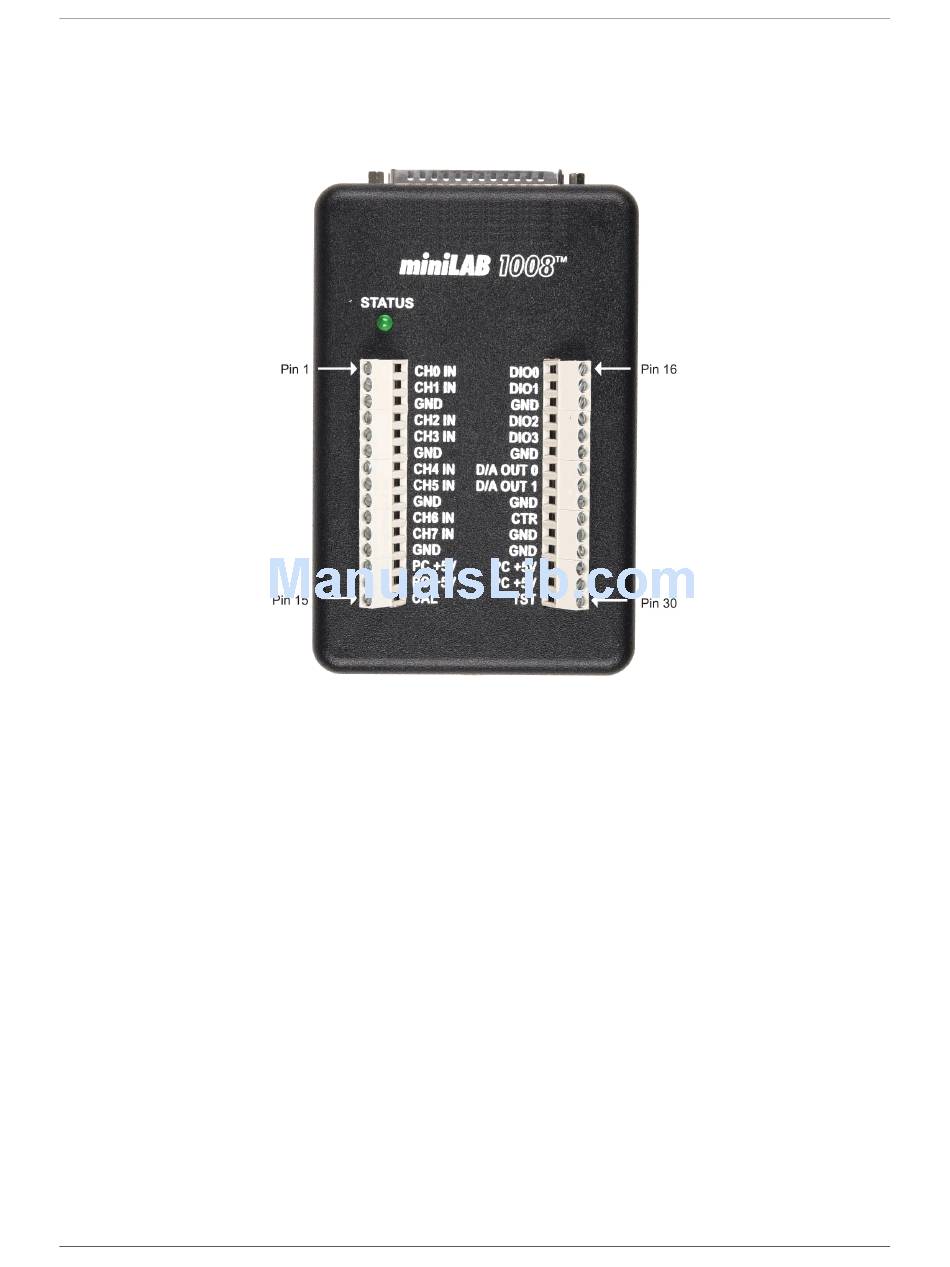

Figure 3-3. miniLAB 1008 screw terminals
to
CH0 IN CH7 IN
)
GND
)
CAL
)
PC +5 V
to )
DIO0 DIO3
to
D/A OUT 0 D/A OUT 1
)
CTR
)
TST
)
GND
)
PC +5 V
