miniLAB 1008 User's Guide

Main connectors and pin outs

Connector type
Wire gauge range

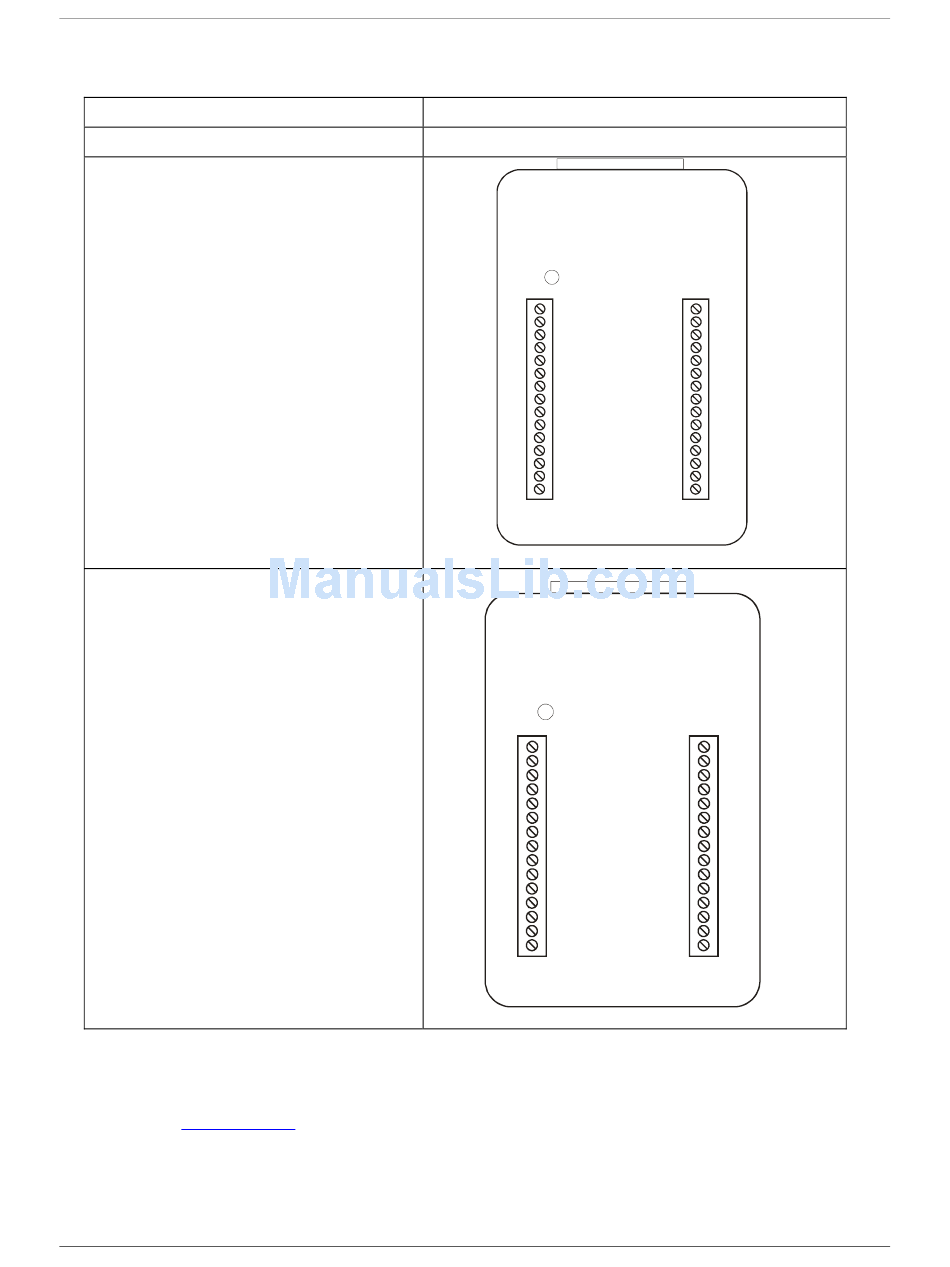

4-channel differential mode pin out
Note that the pins are labeled for 8-channel
single-ended mode on the miniLAB 1008.
8-channel single-ended mode pin out
Note that the pins are labeled for 8-channel
single-ended mode on the miniLAB 1008.

Analog input terminals (CH0 In - CH7 In)

Connect up to eight analog input connections to the screw terminal connections labeled
Refer to the pinout diagrams
You can configure the analog input channels as eight single-ended channels or four differential channels. When
configured for differential mode, each analog input has 12-bit resolution. When configured for single-ended
mode, each analog input has 11-bit resolution, due to restrictions imposed by the A/D converter.
Screw terminal
16 AWG to 26 AWG
CH0 IN HI
CH0 IN LO
GND
CH1 IN HI
CH1 IN LO
GND
CH2 IN HI
CH2 IN LO
GND
CH3 IN HI
CH3 IN LO
GND
PC +5 V
PC +5 V
CAL
CH0 IN
CH1 IN
GND
CH2 IN
CH3 IN
GND
CH4 IN
CH5 IN
GND
CH6 IN
CH7 IN
GND
PC +5 V 13
PC +5 V 14
CAL
on page 3-5 for the location of these pins.
3-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
15
Functional Details
16 DIO0
17 DIO1
18 GND
19 DIO2
20 DIO3
21 GND
22 D/A OUT0
23 D/A OUT1
24 GND
25 CTR
26 GND
27 GND
28 PC +5 V
29 PC +5 V
30 TST
16 DIO0
17 DIO1
18 GND
19 DIO2
20 DIO3
21 GND
22 D/A OUT0
23 D/A OUT1
24 GND
25 CTR
26 GND
27 GND
28 PC +5 V
29 PC +5 V
30 TST
through .
CH0 In CH7 In
