3.2
Electrical Installation
3.2.1 Ethernet RJ-45 Socket
The ethernet interface on the SMV is an RJ-45 Ethernet socket used to communicate with a host via
Ethernet TCP/IP. Table 2 identifies the terminals and describes the function of each.
The status LEDs integrated in the RJ-45 socket indicate link and activity. The green LED indicates whether
a link is established with another network device. The yellow LED indicates link activity and flashes when
data is received by the EtherNet/IP module.

3.2.2 Grounding

The SMV EtherNet/IP module must be gounded. Attach the ground wire/lug from the module to one of the
the chassis ground screws on the drive as illustrated in Figure 7.
Table 2: P2 Pin Assignments (Communications)
Pin
Name
1
+ TX
Transmit Port (+) Data Terminal
2
- TX
Transmit Port (-) Data Terminal
3
+ RX
Receive Port (+) Data Terminal
4
N.C.
5
N.C.
6
- RX
Receive Port (-) Data Terminal
7
N.C.
8
N.C.

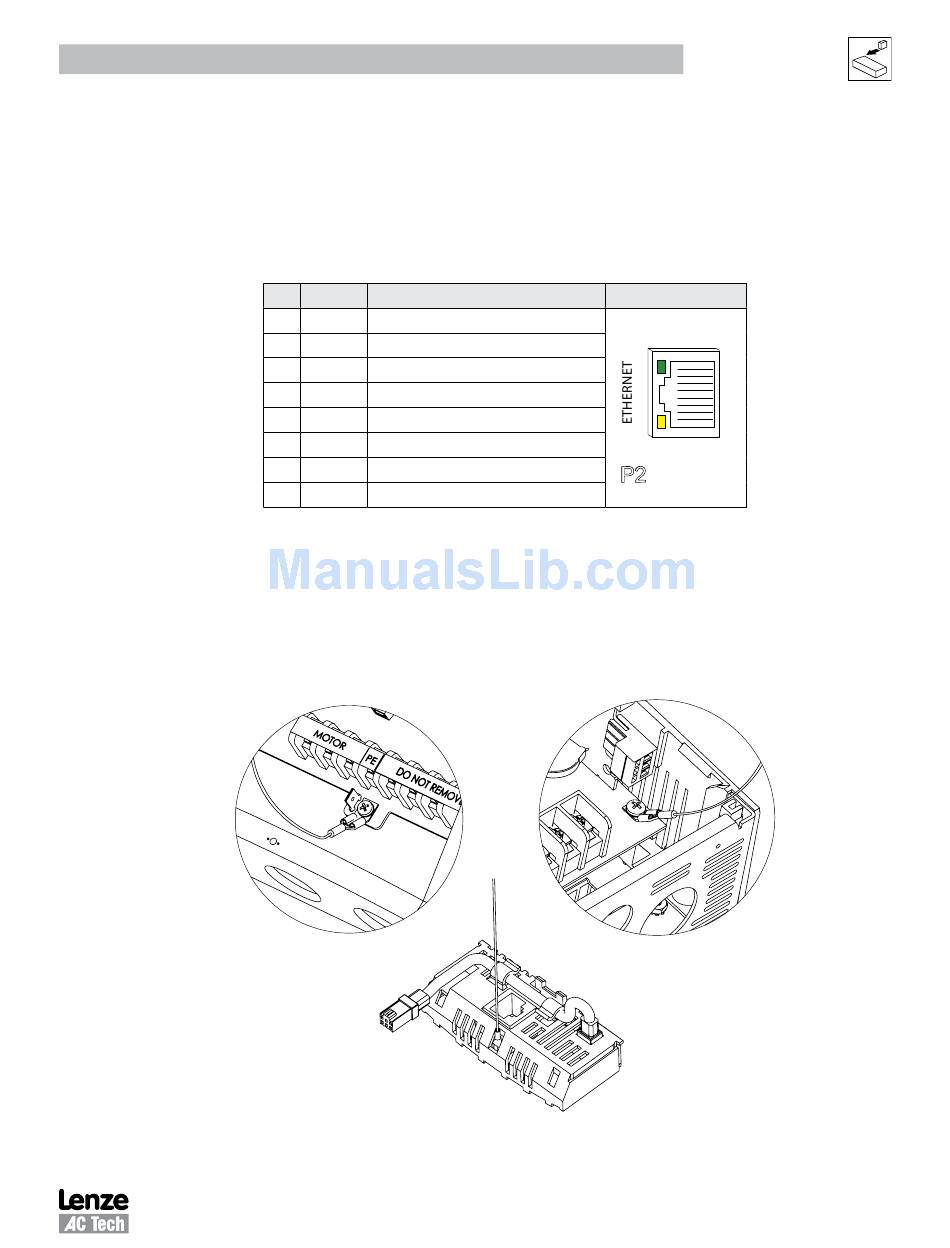

Figure 7: Wiring the EtherNet/IP Module Ground Harness
Installation
Function
RJ45 Connector
P2
7
1
8
CMVETH01B
