2.2.3 TCP/IP Sockets
The SMVector drive supports up to 2 TCP/IP socket connections.
2.2.4 CIP Connections
The SMVector drive supports up to 6 CIP connections.
2.3 Module Specification
• Auto detection of data rates
• Supported baudrates: 10 BaseT, 100 BaseT
• Scalable amount of input and output process data words (4 output, 4 input).
• Parameter access data channel
• To simplify setup and operation, implemented classes and behavior conform to the AC DRIVE profile as
specified in the ODVA Common Industrial Protocol (CIP) Specification.
2.4 Module Identification Label

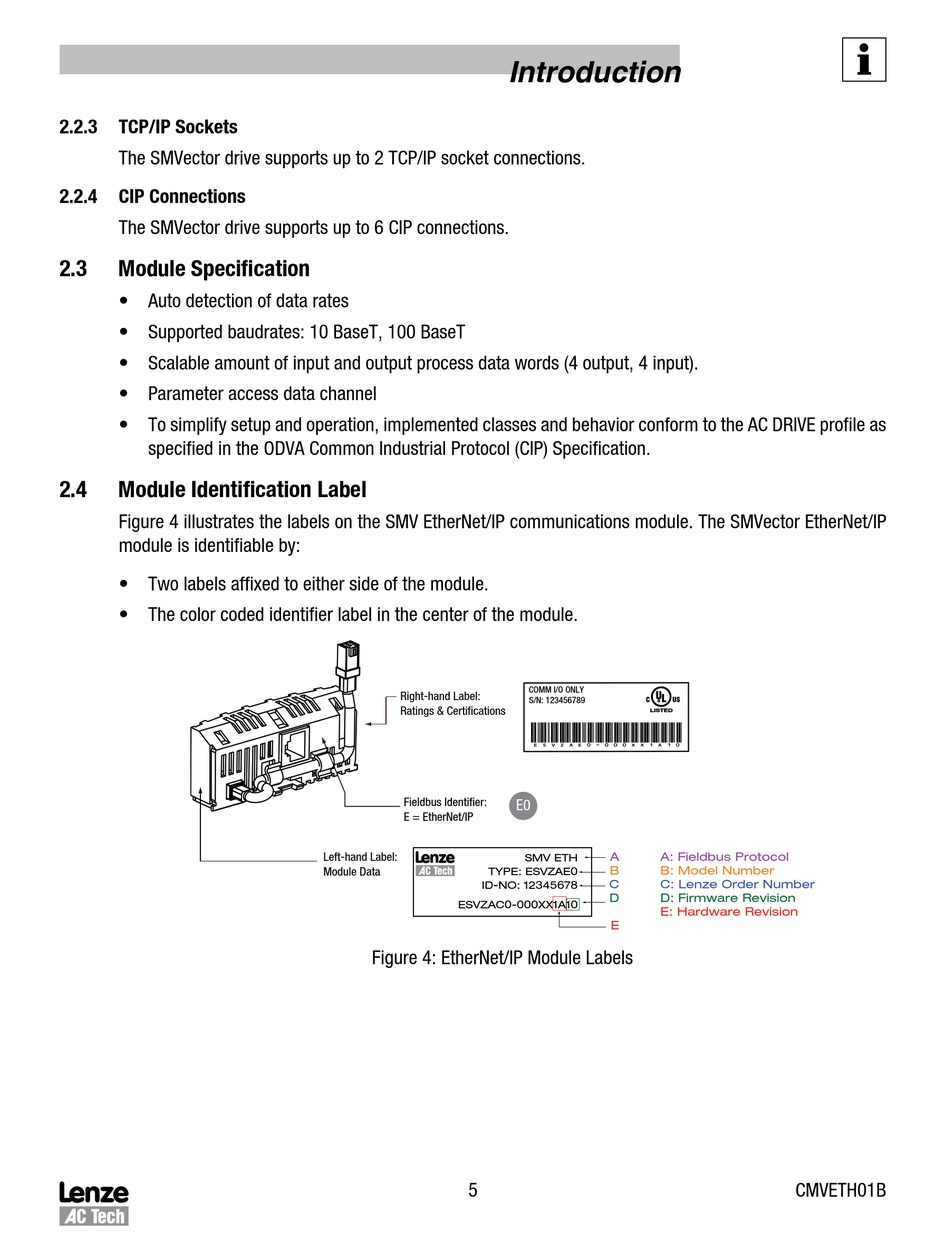

Figure 4 illustrates the labels on the SMV EtherNet/IP communications module. The SMVector EtherNet/IP
module is identifiable by:
• Two labels affixed to either side of the module.
• The color coded identifier label in the center of the module.
Right-hand Label:
Ratings & Certifications
Fieldbus Identifier:
E = EtherNet/IP
Left-hand Label:
Module Data
TYPE: ESVZAE0
ID-NO: 12345678
ESVZAC0-000XX1A10
Figure 4: EtherNet/IP Module Labels
5
Introduction
COMM I/O ONLY
S/N: 123456789
LISTED
ESVZAE0-000XX1A10
E0
A A: Fieldbus Protocol
SMV ETH
B B: Model Number
C C: Lenze Order Number
D D: Firmware Revision
E: Hardware Revision
E
CMVETH01B
