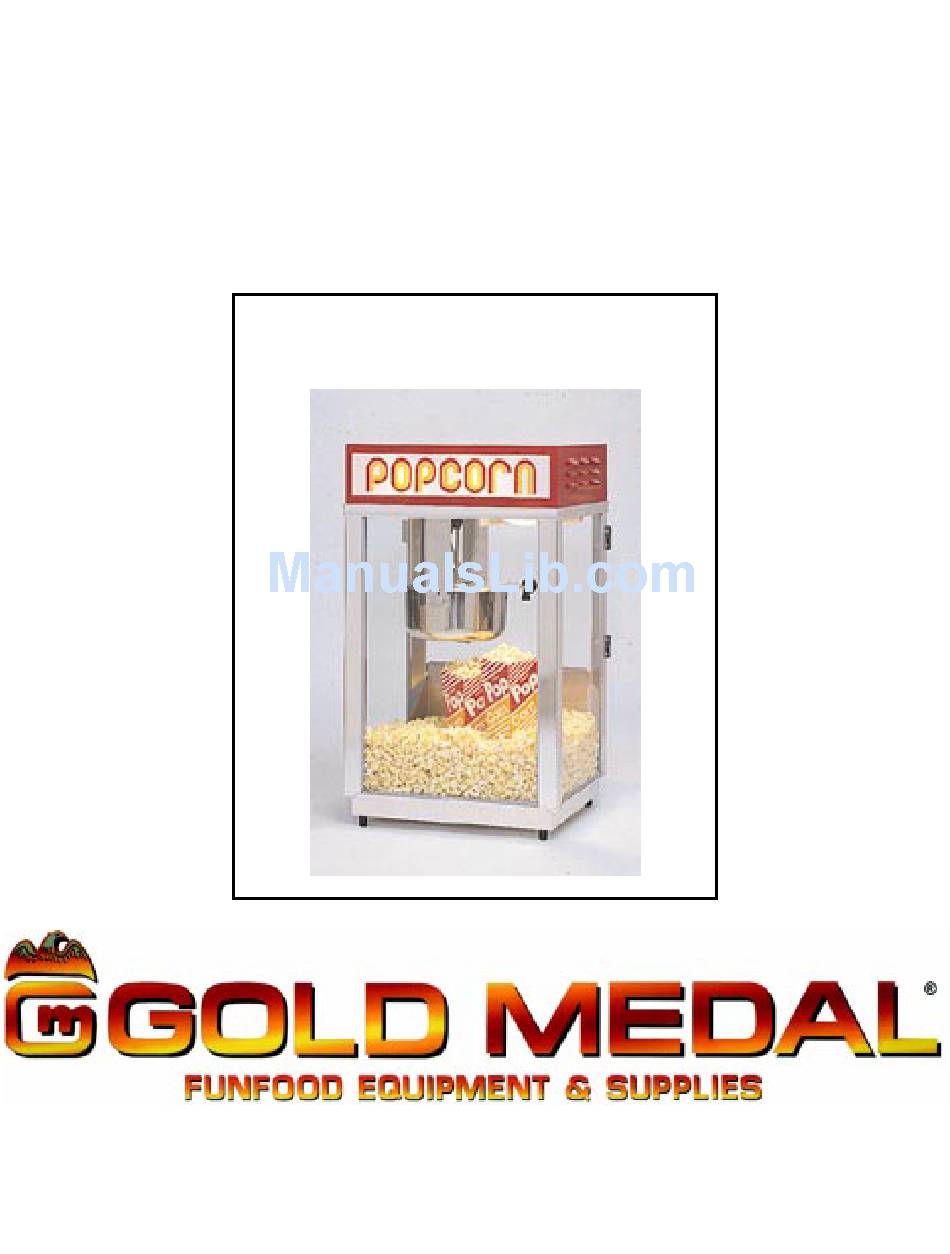

- Page 1 Part No. 49217EX 6 oz. Kettle Poppers Revised June 1996 Love My Popper Kettle with Instruction Manual Export Models #1871EX & #2660EX Cincinnati, OH 45214-2089 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Installation Instructions
6 oz. Kettle Poppers with Love My Popper Kettle INSTALLATION INSTRUCTIONS INSTALLATION Your new Gold Medal Six Ounce Kettle Popcorn Machine requires no additional assembly. Remove all packing material and tape before starting operation. OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS There are three switches on the popper. -
Page 4: Care And Cleaning
6 oz. Kettle Poppers with Love My Popper Kettle CARE AND CLEANING Unplug your machine bofore cleaning glass panel and case. Never immerse the kettle in water. This will ruin the electrical components and automatically void the guarantee. Each time you finish a series of poppings, wipe the outside of the kettle with a soft cloth to remove any oil drippage on the outside of the kettle. -
Page 5: Maintenance Instructions
6 oz. Kettle Poppers with Love My Popper Kettle MAINTENANCE INSTRUCTIONS THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN- TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. Adequate eye protection must be used when servicing this equipment to prevent the possibility of injury. -
Page 6: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 7 6 oz. Kettle Poppers with Love My Popper Kettle 6 oz. KETTLE POPPER CABINET ASSEMBLY #1871 #2660 XPORT ODELS...
-
Page 8: Parts List - Hanger Assembly
6 oz. Kettle Poppers with Love My Popper Kettle PARTS LIST - HANGER ASSEMBLY Item No. Part No. Description 49337JX Complete Hanger Assembly 41033 Pilot Light 41671 Reflector Flood Light 41742 Set Screw #10-32 x 4,8mm 47047 Lamp Holder 47065 Gear Box w/ Bushing 47058 Flange Bushing... -
Page 9: Parts List - Cabinet Assembly
6 oz. Kettle Poppers with Love My Popper Kettle PARTS LIST - CABINET ASSEMBLY Model Model #1871JX #2660JX Item No. Part No. Part No. Description 49252 49026 Cabinet Assembly 22038 22038 Lead - In Cord 40031 40031 Heat Element 120V, 50W 41349 41349 Male Hinge, Short Right... - Page 10 6 oz. Kettle Poppers with Love My Popper Kettle 6 oz. KETTLE ASSEMBLY #1871 #2660 XPORT ODELS...
-
Page 11: Parts List - 6 Oz. Kettle Assembly
6 oz. Kettle Poppers with Love My Popper Kettle PARTS LIST - 6 oz. KETTLE ASSEMBLY Item No. Part No. Description 49434JX 177,4ml (6 oz. by volume) Kettle Complete 47107 C - Ring 47106 Needle Bearing 47059 Spur Gear 49423 Agitator Shaft Assembly 46649 Set Collar... -
Page 12: Electrical Schematic
6 oz. Kettle Poppers with Love My Popper Kettle ELECTRICAL SCHEMATIC #1871 #2660 XPORT ODELS... -
Page 13: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
