Gold Medal 5020 Instruction Manual

Countertop baker unit
Hide thumbs Also See for 5020:

Advertisement

Table of Contents

See also: Instruction Manual

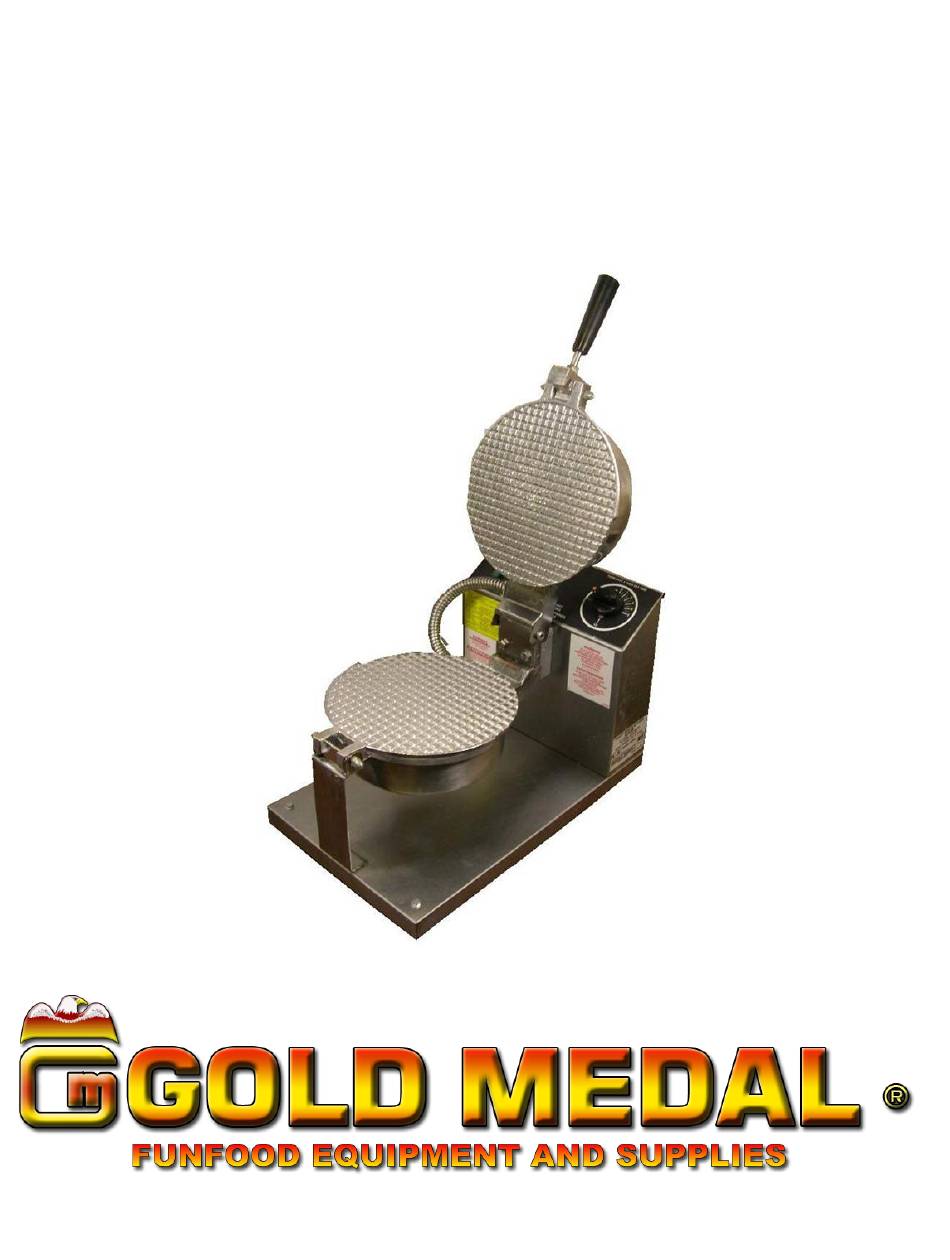

Part No. 76098
Countertop Baker Unit
Instruction Manual
Model No. 5020, 5020E, 5020ET, 5023
Cincinnati, OH 45241-4807 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5020 and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Medal 5020

Summary of Contents for Gold Medal 5020

  • Page 1 Part No. 76098 Countertop Baker Unit Instruction Manual Model No. 5020, 5020E, 5020ET, 5023 Cincinnati, OH 45241-4807 USA...

  • Page 2: Safety Precautions

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 SAFETY PRECAUTIONS http://www.gmpopcorn.com Page 2...

  • Page 3: Installation Instructions

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 INSTALLATION INSTRUCTIONS CHECKING SHIPMENT Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. Gold Medal©...

  • Page 4: Electrical Requirements

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 ELECTRICAL REQUIREMENTS NOTE: The following power supply must be provided: 120VAC, 60Hz 15A electrical outlet. Your electrician must furnish sufficient current for proper machine operation. We recommend this machine be on a dedicated and circuit protected line. Failure to wire properly will void the warranty and can result in damage to the heat elements, light, motor etc.
  • Page 5 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 OPERATING INSTRUCTIONS (Pg. 5-6) Grid Seasoning Note: Coated grids (on models with T designation) do not need to be seasoned after the first usage. DO NOT use metallic utensils on coated grids.
  • Page 6 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 OPERATING INSTRUCTIONS (Continued) NOTE: Initial display will read “Lo” when turned on until unit heats up to the cooking temperature. Upon powering up, wait until heat indicator turns “OFF” before loading with product. Press and hold “SET”...

  • Page 7: Cleaning Instructions

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 CLEANING INSTRUCTIONS Daily Cleaning/Removing Excess Carbon (Standard Models) 1. Make sure appliance is cool and dry. 2. Un-plug machine from outlet. 3. Place a shallow drip pan under the grids. 4. Open top grid and spray a generous portion of Kleen-Sweep (Gold Medal®...

  • Page 8: Maintenance Instructions

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 MAINTENANCE INSTRUCTIONS http://www.gmpopcorn.com Page 8...

  • Page 9: Ordering Spare Parts

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 ORDERING SPARE PARTS 1. Identify the worn or broken part by checking it with the illustrations and parts list. 2. When ordering parts, include part number, part name, and quantity required.

  • Page 10: Parts Breakdown

    Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 PARTS BREAKDOWN (Pg. 10-13) Mechanical Timer Models Toggle Switch (1) Timer (1) P.N. 47201 P.N. 76300 Red Pilot Light (1) Toggle Switch Boot (1) Timer Knob (1) P.N. 41033 P.N. 76382 P.N.
  • Page 11 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 PARTS BREAKDOWN (Continued) Mechanical Timer Models 500W Tubular Element (1) Thermostat (1) P.N. 76552 P.N. 76337 Thermostat Screw (1) P.N. 74153 Element Clamp (2) P.N. 76072 10-24” x ¾” Screw (4) P.N.
  • Page 12 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 PARTS BREAKDOWN (Continued) Mechanical Timer Models Strain Relief (1) P.N. 76026 Bottom Glide (4) P.N 47328 Crutch Tip (4) P.N 49123 Power Supply Cord (1) P.N 22038 http://www.gmpopcorn.com Page 12...
  • Page 13 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 PARTS BREAKDOWN (Continued) Digital Baker Models Rocker Switch (1) Digital Baker Control (1) P.N. 42798 P.N. 76540A Rocker Switch Cover (1) Overlay (1) Push Button (1) P.N. 48786 P.N. 76549 P.N. 41031...
  • Page 14 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 Wiring Diagram Mechanical Timer Models http://www.gmpopcorn.com Page 14...
  • Page 15 Countertop Baker Unit Model No. 5020, 5020E, 5020ET, 5023 Wiring Diagram Digital Baker Models http://www.gmpopcorn.com Page 15...

  • Page 16: Warranty

    Model No. 5020, 5020E, 5020ET, 5023 WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
