Outputs; Figure 12: Configure Input - LMI Excel XR Series Installation & Operation Manual

OPERATION
Digital Inputs 1-4
Analog Inputs 1-2

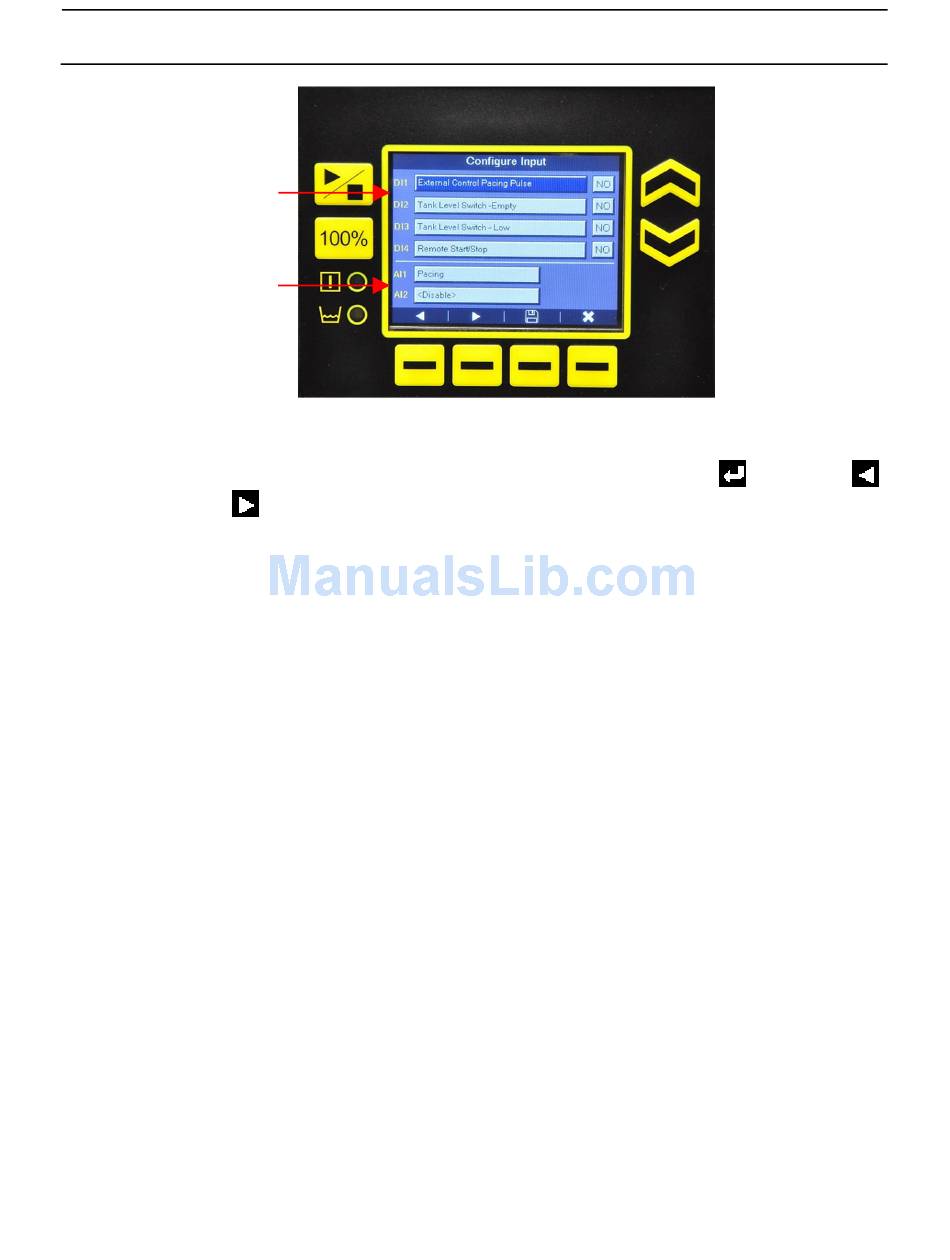

Figure 12: Configure Input

In the Settings screen, navigate to configure input and press Enter . Press Left
and Right to navigate between fields and the Up and Down buttons to make
selections. Each input can be identified as NO (normally open) or NC (normally closed).
If testing produces the opposite effect from what is desired, frequently an easy solution
is to change the switch type from NO to NC or vice versa. Note that selecting a function
for one input makes it unavailable in others.

4.6.2 Outputs

Enhanced control model pumps have two digital and one analog configurable output.
Digital outputs are labeled DO1 and DO2. The analog output is labeled AO1. See
section 5.0 Cable Wiring, for the cable and pin assignments for each of these outputs.
Each digital output can be assigned to one of eight functions plus <Disable>. The analog
output can be assigned one of two functions plus <Disable>. The functions are listed in
the table below.
