4.0 Enhanced Control Operation
This manual covers features supported in the enhanced control model Excel™ XR
Series pumps. Enhanced control features are driven by a variety of external inputs and
outputs. Please see section 5.0 Cable Wiring for information on connections, signal
types, and requirements.
4.1 Analog Mode
Analog mode allows control of the pump using an external 0 - 20 mA signal. The analog
mode home screen is shown in Figure 1.

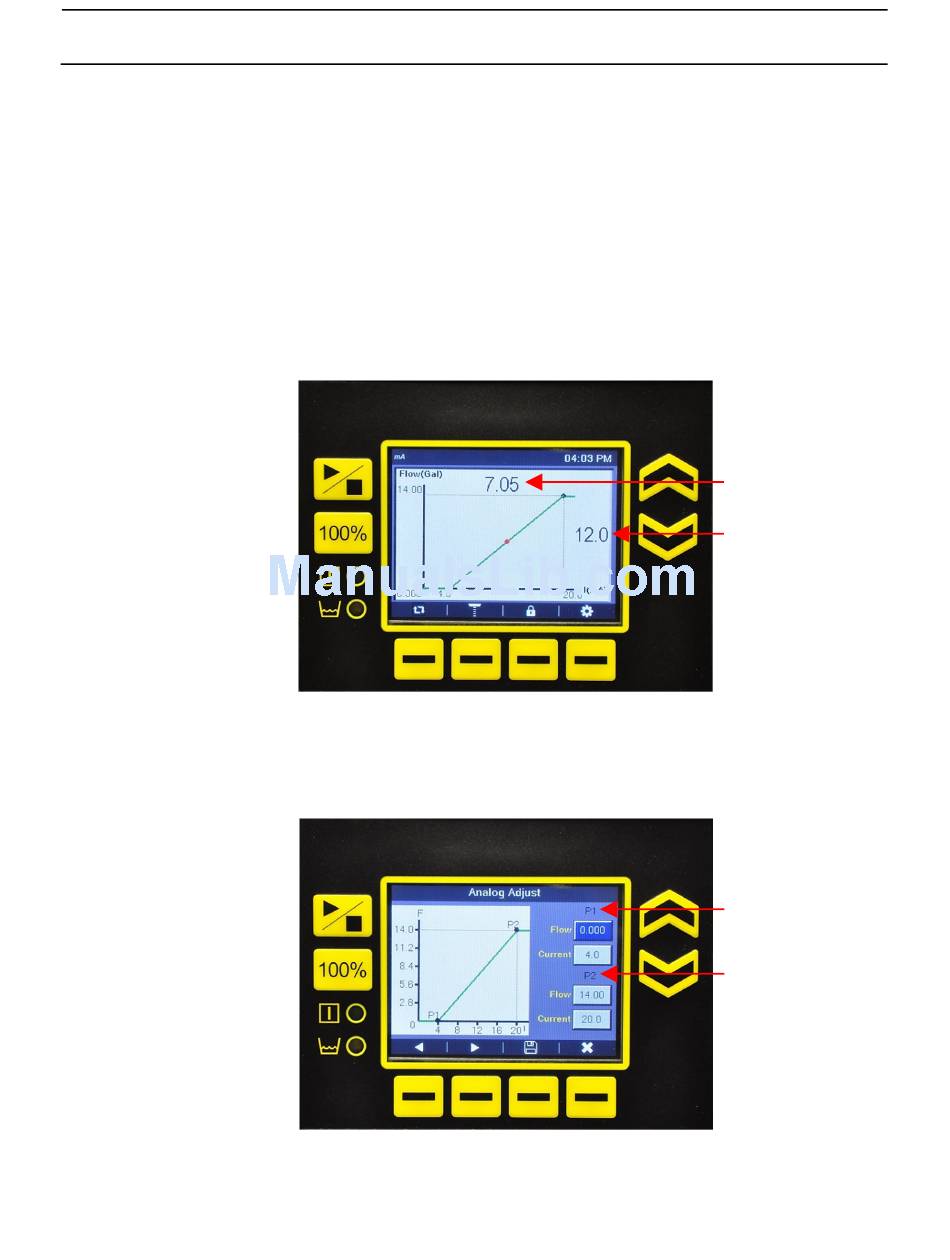

Figure 1: Analog Mode Home Screen
To configure the analog mode input parameters, press the Up or Down buttons to
access the analog adjust screen (Figure 2).
Figure 2: Analog Adjust
6
OPERATION
Flow Rate
Input Current
Point 1
Point 2
