Enhanced Control Inputs And Outputs; Figure 10: Timed Event Adjust - LMI Excel XR Series Installation & Operation Manual

Event On/Off

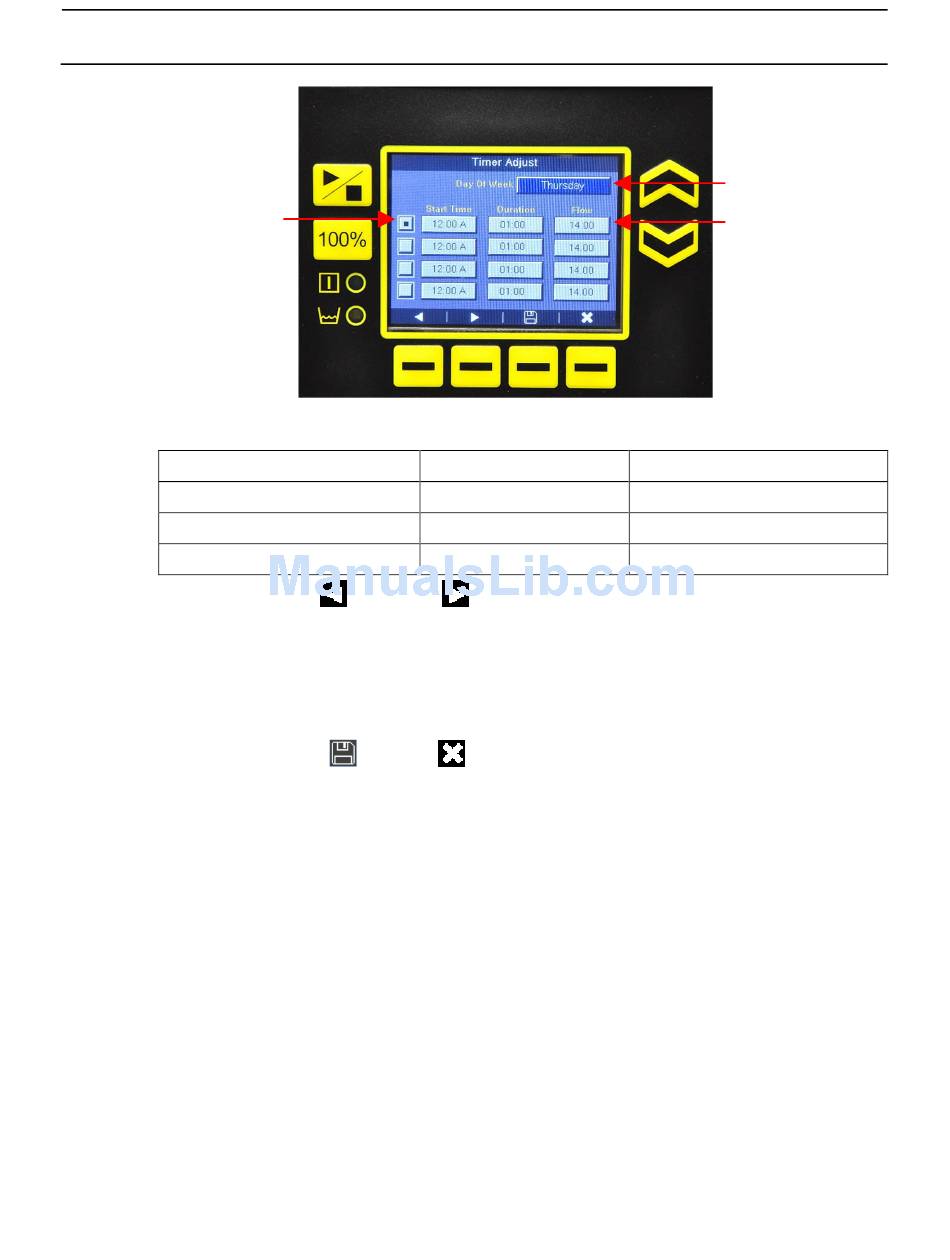

Figure 10: Timed Event Adjust

FIELD
Start Time (hr:min)AM/PM
Duration (hr:min)
Flow Rate
1. Press Left
start time, duration and flow rate. Enter the parameters for as many as four
events for each day of the week. The enable/disable column on the left allows
multiple choices to be entered (Figure 10).
2. Press the Up or Down buttons to fill the event on/off box and enable the
event.
3. Press Save
have been saved, the list will sort in chronological order with events not active
appearing below any active events.
4. Press the Stop / Start button or assert a remote start to ready the pump. The
pump status indicator will illuminate. At the time and day shown for the next
event, the pump will start and dose for the programmed amount of time at the
programmed flow rate. Once an event has completed, the next active event
will be shown on the home screen with the pump idle until the event occurs.
If overlapping events are programmed the active event will be overridden by subsequent
timed events.

4.6 Enhanced Control Inputs and Outputs

In addition to the enhanced modes of operation, the enhanced control model pumps
include a variety of inputs and outputs to benefit the user.
and Right to navigate and the Up and Down buttons to set
and Exit to return to the home screen. Once the settings
13
OPERATION
Day of Week
Event Parameters
ALLOWABLE VALUES
0:01 to 12:00 AM/PM
0:01 to (Cycle setting - 0:01)
0.001 to Maximum Capacity
