2. Enter the values for the quantity and units of the volume of fluid to be dosed
(Figure 6).
NOTE: If a set of entered values results in a condition that exceeds the pump's
maximum calibrated flow, the field will be highlighted red. Increase or decrease this or
one of the other parameters to clear the condition.
3. Enter the pulse width after consulting the documentation for the device that
will generate the pulse.
4. Select the Pulse Accumulator feature, as needed.
5. Press Save
6. Press the Start / Stop button, the Pump Status Indicator will glow green, and
the pump will be ready to receive and act upon an incoming pulse.
Dosing Time

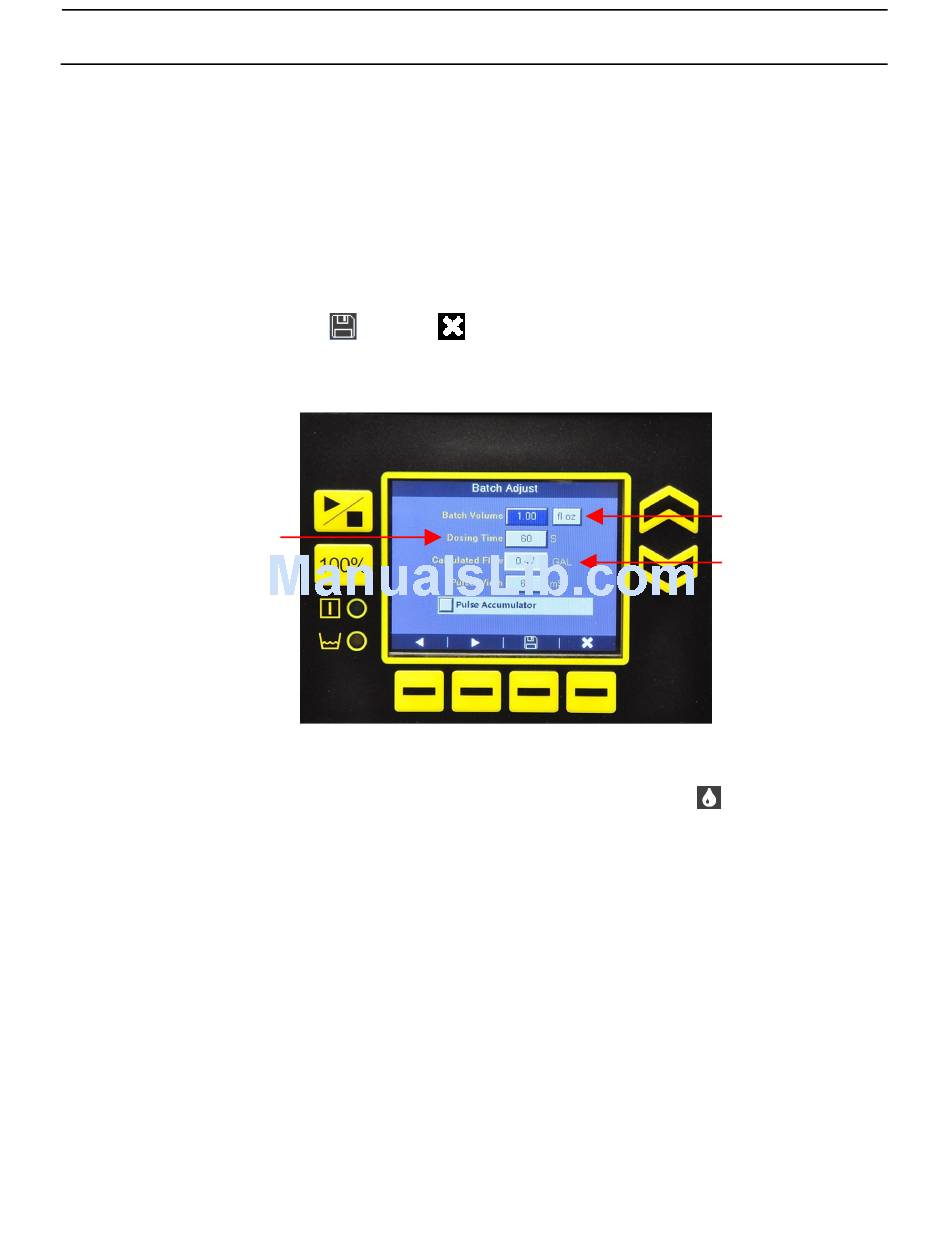

Figure 6: Batch Adjust

Once the pump is started and one a pulse is received, the Dosing
the notification bar. If the pump receives a pulse before the current batch is complete
and the Pulse Accumulator box is checked, the pump will accumulate input pulses and
finish the current batch before moving on to the next. The display screen will show the
remaining batch volume, time, and %.
If the pump receives a pulse before the current batch is complete and the Pulse
Accumulator box is not checked, the current batch is reset and a new batch starts
immediately.

4.4 Cycle Timer

The cycle timer allows the user to establish a continuously repeating cycle of pump on
and off times.
and Exit to return to the Batch Mode home screen.
10
OPERATION
Batch Volume / Units
Calculated Flow
icon will appear in
