Introduction
1 1

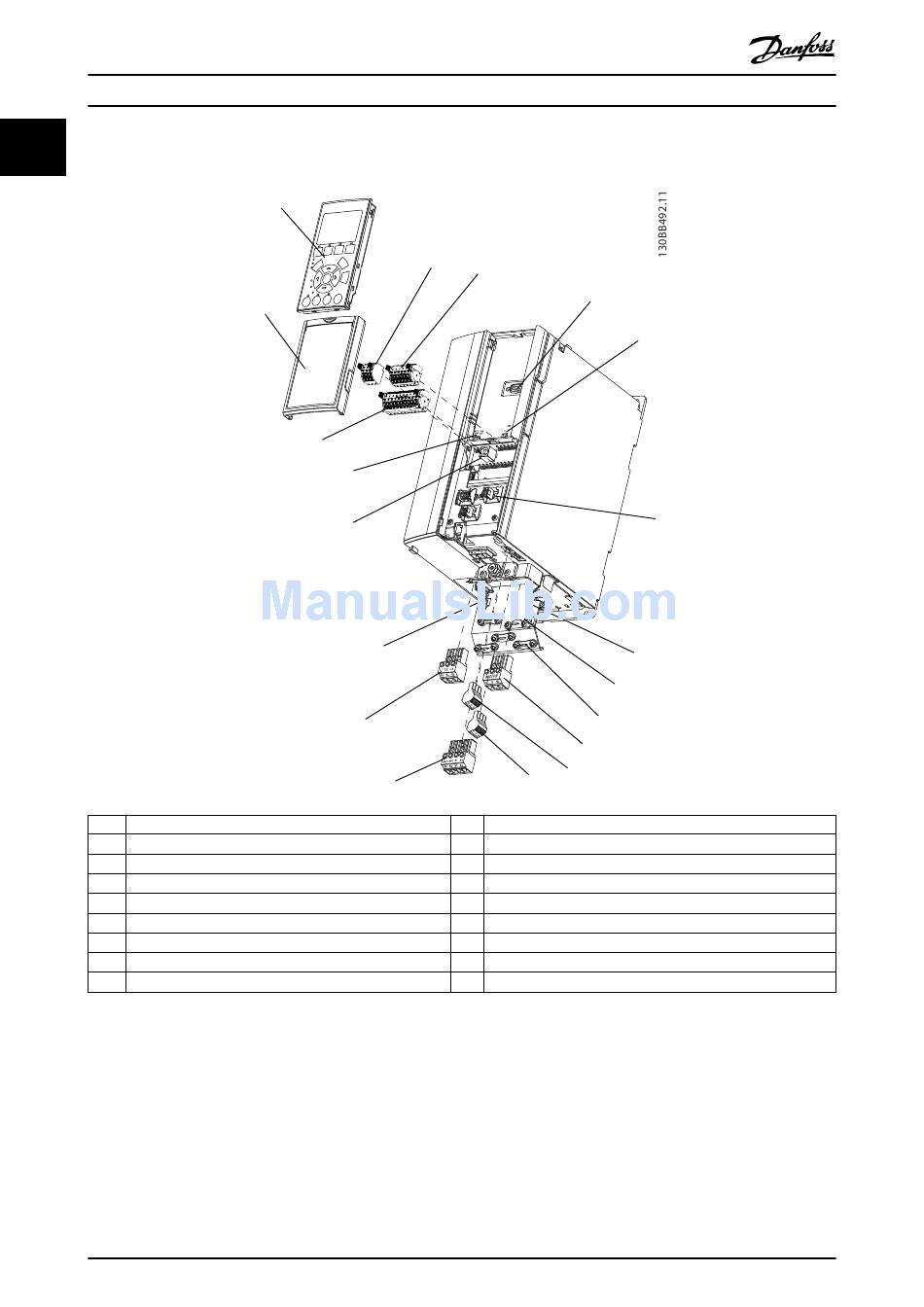

1.4.3 Exploded Views
1 Local control panel (LCP)
2 RS485 fieldbus connector (+68, -69)
3 Analog I/O connector
4 LCP input plug
5 Analog switches (A53), (A54)
6 Cable shield connector
7 Ground termination plate
8 Grounding clamp (PE)
9 Shielded cable grounding clamp and strain relief
Illustration 1.1 Exploded View Enclosure Size A, IP20
6
®
VLT AQUA Drive FC 202
1
2
18
17
16
15
8
14
13
Danfoss A/S © 10/2016 All rights reserved.
3
4
8
9
10
11
12
10 Motor output terminals 96 (U), 97 (V), 98 (W)
11 Relay 2 (01, 02, 03)
12 Relay 1 (04, 05, 06)
13 Brake (-81, +82) and load sharing (-88, +89) terminals
14 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
15 USB connector
16 Fieldbus terminal switch
17 Digital I/O and 24 V supply
18 Cover
