Any loss or damage during delivery should be reported to carrier by registered letter within 3 working days and be advised to devatec or to authorized dealer. It is recommended that the ElectroVap MC2 humidifier be kept in its transit packaging for as long as possible prior to maintenance.

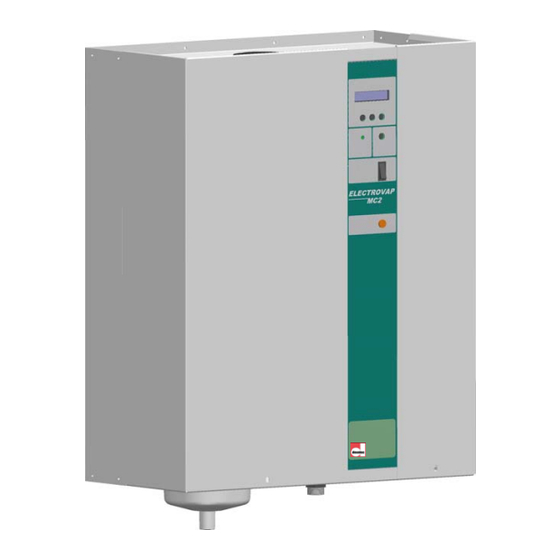

LECTRO Safety information ENERAL This manual contains all details necessary for the planning and installation of the ElectroVap ELMC2 humidifier. In addition commissioning and maintenance details are included. The manual is intended for use by engineers and properly trained technical personnel. Maintenance, servicing or repair work must only be carried out by suitable skilled and qualified personnel, the customer must be responsible for ensuring their suitability.
EN 60204-1 : Safety of machinery – Electrical Equipment of machines – Part 1 : General requirements EN 292 Parts 1 & 2 : Safety of machinery basic principle mechanical design. Manufacturer’s Name and Address DEVATEC SAS Rue Saint Eloi 76550 Ambrumesnil - FRANCE...
LECTRO RoHS declaration devatec sas Rue Feu St Eloi 76550 Ambrumesnil France Confirms that the ElectroVap ELMC steam humidifier is manufactured in compliance with the European regulations 2002/95/EU (RoHS). This guideline regulates after July 1 2006 the use of mercury, cadmium, lead (soldering processes), chrome VI as well as PBB and PBDE.
Any loss or damage during delivery should be reported to carrier by registered letter within 3 working days and be advised to devatec or to authorized dealer. It is recommended that the ElectroVap MC2 humidifier be kept in its transit packaging for as long as possible prior to maintenance.
Please read, heed and follow the enclosed information for the installation of the humidifier and the steam, water and electrical networks. For further technical assistance, feel free to call devatec. Failure to adhere to manufacturer’s installation recommendations will invalidate your warranty.
When in operation, the rear panel becomes hot (60°C) so do not hang the humidifier on a heat sensitive surface. The devatec humidifiers have been developped to be hanged on wall. Before installation, make sure that the surface material is strong enough to hold the humidifier.
Page 12
LECTRO Installation - Step 1 Installation on wall Nota : Use installation equipment and material appropriate to the surface on which the unit should be hanged . The dimensions mentioned underneath are for cabinets without doors. Method: Mark and drill the mounting holes for 6 mm screws (s.a. the drilling distance table) : ELMC 1 &...
(please refer to the softener’s user manual). Duplex softeners are best suited to your humidifier in this regard. In doubt, please consult devatec. Demineralised water: this is a water treatment by reverse osmosis or running through resins.
Page 14
LECTRO Installation - Step 3 STEAM DISTRIBUTION PIPE Steam from the cylinder enters the duct via a steam distribution pipe. In order to obtain optimum performance of the humidifier, it is recommended that these instructions be adhered to as far as possible. There are two steam inlet diameters available : Ø...
Page 15
LECTRO Installation - Step 3 POSITIONING OF THE STEAM DISTRIBUTI0N PIPE Evaporation distance or vapor trail « D » A certain length is required so that the steam coming out of the steam distribution pipe be absorbed by the air. All along this length, descrided as the evaporation distance, the steam can still be seen in the airflow as a mist which can condensate in water against any obstacle if placed within.
Page 16
In case the recommended distances cannot be met, please contact devatec or their authorized A agent for an alternative solution. If accurate values cannot be reached, a distance of 2 m. should be considered as a minimum distance between pipes &...
Page 17
STEAM DISTRIBUTION PIPE POSITIONING Please meet the following dimensions and spaces according to your configuration. For further information, please contact devatec or their authorized agent. H1 = 110mm = Minimum height between the duct floor and the axle of the steam pipe.
Page 18
The Armstrong ExpressPack is a bespoke steam humidification system made to suit your your configuration and ready to install in a ventilation duct. It permits to have vapor trails (evaporation distance) as short as 600 mm. For further devatec reference, please contact their authorized agent.
Page 19
LECTRO Installation - Step 3 INSTALLATION For ensuring the best steam distribution possible, we would recommend to install the steam pipes in either diameter as per the two methods described underneath. How to install on a duct (particular) Your steam pipes must be screwed onto the ventilation duct by the fixing plate with a set of 4 bolts and nuts of Ø...
Page 20
Installation - Step 3 STEAM OUTPUT We would recommend to use the steam hose from Devatec supply . NB : when the humidifier is started up for the first time, a smell of burning may be smelt especially when brand new hoses are installed. This is normal and will eventually dispel.
LECTRO Installation - Step 3 Three ventilation packs permit the use of the humidifier in direct in-space Room ventilation unit applications where there is no ductworks : Blower Pack BP 1 = for capacities up to 5 kg/h Blower Pack BP 2 = for capacities up to 30 kg/h EHF II = for capacities up to 50 kg/h 0,50m mini The EHFIII ventilation packs cannot be set on the top of the humidifier (see...
LECTRO Installation - Step 3 OPTIONAL TEMPERATURE CONTROL SYSTEM This system holds the water in the cylinder at a temperature of 65°C to prevent bacteria or mold from forming in the cylinder even if there is humidity demand. The optional temperature control system overrides the automatic factory pre-set draining time where the cylinder(s) is (are) drained by the system after x hours of stop (s.a.
The following drawings show the water draining connections Pict. 1 that should be made. 1. The devatec supplied steam hose should be used : ELMC 1 cylinder : 1m Ø25mm hose with 1 hose clamp (supplied). ELMC 2 cylinders : 1m + 1.2m Ø25mm hose with 2 clamps (supplied).
Page 24
LECTRO Installation - Step 5 ECOMMENDATION : All works concerned with the electrical installation must be carried out by skilled and qualified personnel (eg electrician with appropriate training). The customer is responsible for ensuring their suitability. Please observe local regulations concerning the provision of electrical installations.
Page 25
LECTRO Installation - Step 5 ELECTRICAL TABLES ELMC steam humidifier in 2 X 220V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size Transformer (KG/Steam) ( A ) ( A ) ( KW ) diameter wiring 5.00 18.4 4.05 Small...
Page 26
LECTRO Installation - Step 5 ELMC steam humidifier in 3 X 208V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size ( A ) ( A ) ( KW ) (KG/Steam) diameter transformer 10,5 4,13 Small Straight through 15,3 16,5 6,49...
Page 27
LECTRO Installation - Step 5 ELMC steam humidifier in 3 X 230V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size ( A ) ( A ) ( KW ) transformer (KG/Steam) diameter wiring 10,5 4,13 Small Straight through 15,3 16,5...
Page 28
LECTRO Installation - Step 5 ELMC steam humidifier in 3 X 400V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size ( A ) ( A ) ( KW ) (KG/Steam) diameter transformer 4,24 Small Loop 6,63 Small Straight through 8,21...
Page 29
LECTRO Installation - Step 5 ELMC steam humidifier in 3 X 480V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size ( A ) ( A ) ( KW ) transformer (KG/Steam) diameter wiring 4,25 Small Loop 6,58 Small Straight through...
Page 30
LECTRO Installation - Step 5 ELMC steam humidifier in 3 X 600V - 50/60 Hz Imaxi Pmaxi Steam Torroidal Steam production ELMC Cylinder size transformer ( A ) ( A ) ( KW ) (KG/Steam) diameter wiring 4,41 Small Loop 6,77 Small Straight through...
Page 31
LECTRO Installation - Step 5 ELECTRICAL CONNECTIONS All works concerned with electrical installation must be carried out by a skilled and qualified personnel. Make sure that all incoming power supplies are isolated before installation and maintenance of the ElectroVap MC2 humidifier. 1 - Power supply isolator and MCB ( near the unit ) 2 - Power supply cable 3–...
Page 32
LECTRO Installation - Step 5 E) U= 3 x 208-220-230 V F) U= 3 x 440-460-480 V ELMC 5 ELMC 5 to 70 to 90 Q2: 3 poles Q2: 3 poles Power In Power In 3 x 440V 208-230V 460-480V 50-60Hz 50-60Hz Q1: 2 poles 2A...
Page 33
LECTRO Installation - Step 5 TRANSFOMER (OPTION) The ELMC 5 to 90 humidifiers are electrically supplied in 3x400v + G + N. In case a neutral line is not available, this can however be easily substitued by the use of our optional transfomer preventing the installation of a specific neutral line.
Page 34
See after on the right hand side the diagram of connection: Communication settings Some settings are really important for a great communication with Devatec humidifiers. Speed of the communication 9600 Bauds/sec (changeable) Packet size...
Page 36
LECTRO Installation - Step 5 ELMC 5 WIRING SCHEME (2 x 220-230 V) NB : please also refer to page 54 for torroidal transformer wiring method Mark Intensity Fuse function Protection of the power contactor coil Protection of the inlet valve coil Protection of the drain valve coil 100mA Protection of the electronic boards...
Page 37
Brown Black Black OUTLET INLET VALVE Black Black VALVE Green-yellow DEVATEC Réf:500102 Blanc NB : please also refer to page 54 for torroidal transformer wiring method Mark Intensity Fuse function Protection of the power contactor coil 60 61 62 6 7 8...
Page 38
LIGHT Left side cylinder Right side cylinder Blue RIGHT SIDE INLET LEFT SIDE OUTLET VALVE OUTLET VLAVE VALVE WITH X50-2 Devatec Ref.:500300-02 THE DRAIN VALVES ARE OPENED ONE AFTER THE OTHERS WITH X50-1 Brown THE DRAIN Brown X50-2 VALVES ARE...
Page 39
INLET MIDDLE SIDE RIGHT SIDE OUTLET VALVE OUTLET VALVE Black Black OUTLET VALVE VALVE Black Black WITH X50-2 Devatec Ref.:500300-02 THE OUTLET VALVES ARE Brown OPENED ONE Brown AFTER THE OTHERS Black Black Black Black WITH X50-1 39 40 41 42...
LECTRO Setting up Before putting your humidifier in operation, please make sure that your installation be in conformity with the manufacturer’s technical specifications. Open the water valve of the main water line. Switch on the main power supply contactors (voltage and command).
Page 42
LECTRO System management - Humidifier status Any press on the enter key f MENU: HUMIDIFIER rom any of these menus... CONFIGURATION WWW.DEVATEC.COM/ ELECTROVAP/V3−35 MENU : HUMIDIFIER STEAM HUMIDIFIER ELMC 10 3x400V STEAM PRODUCED XX.Xkg XX.XKG/H ACTUAL CURRENT XX.X A ACTUAL CONTROL...
Page 43
LECTRO System management - Humidifier status CHECK THE STEAM DEMAND STEAM DEMAND SAFETY SWTICH NO DEMAND If safety swtich opend & If there is no − − % steam demand on steam demand SAFETY SWITCH NO DEMAND IS OPEN MODBUS STOP If the stop is prompted by Modbus WATER TEMP.
Page 44
LECTRO System management - Humidifier status HOUR METER − − − − STEAM METER − − − − CONCENTRATION IN PRO MINERAL GRESS : WAIT CONCENTRATED High level detected High level not detected CONDUCTIVITY micro ELECTRICAL POWER − − . HOME MENU Pictures for illustrating purposes only...
LECTRO System management - Humidifier configuration Any press on the enter key MENU: CHANGING UNIT CO from any of these menus... NFIGURATION HUMIDIFIER CONFIGURATION CONTROL SIGNAL IN − − − − − − − − − − − − − − − − TOTAL STEAM PRO ( −...
LECTRO System management Configuration changing menu MENU: CHANGING UNIT MENU: HUMIDIFIER CONFIGURATION STATUS DIAL ACCESS CODE : DIAL ACCES CODE : − − − 2− − DIAL ACCESS CODE : DIAL ACCESS CODE : 23− ACCES MENU AUTHORIZED menu according to the a ccess code Pictures for illustrating purposes only...
1 step on/off digital control, digital sensor 4 steps, − − − − − − − − − − − − − − − − 0−10V / 2−10V controler, 0−20 / 4−20 mA controler, 1−5V sensor, Devatec sensor Possible value : STEAM CAPACITY...
Page 48
For hard or very hard waters, the use of a cleanable cylinder is recommended. A cleanable cylinder maintenance guide can be found on the next page. This should be seen as an help only and not be considered as a binding information from devatec in any case. Pictures for illustrating purposes only...
LECTRO Cylinder maintenance guide for tap or hard waters Estimated cylinder maintenance curve X= Humidifier steam demand 1000 H 2000 H 4000 H 300 H 800 H Working hours Example given: it is recommended to maintain (if cleanable type) or change (if disposable type) the steam cylinder every 800 to 900 hours of operation for a humidifier running at full capacity and using a water of TH20.
LECTRO Maintenance - Check points ROUTINE SERVICE After the humidifier has run for about one hour time, check for any water leakage at the cylinder gasket and at the drain valve. The cylinder should be inspected after about 50 hours of run. Make sure there is no arcing nor sparkling between the electrodes when the unit is in operation.
LECTRO Maintenance - Service & alerts Press Select button 1 to rotate between the menus and press the up or down buttons to enter the desired menu. INSPECTION DUE 50 HOURS AFTER SWITCHING ON - A « 1st inspection see after manuel » warning message is shown on the 50 H −...
Page 52
LECTRO Maintenance - Service & alerts Press Select button 1 to rotate between the menus and press the up or down buttons to enter the desired menu. CONTACTOR COIL « CONTACTOR COIL FAILURE P1» ALERT FAILURE P1 - When the alert « CONTACTOR COIL FAILURE P1 » is shown, the humidifier is stopped and the remote general fault contact is trigged on (the remote maintenance contact is kept off).
LECTRO Maintenance - Service & alerts no inlet water no inlet water « NO INLET WATER P4» ALERT - a « NO INLET WATER P4 » information is shown when the cylinder is not correctly filled. In this case, the humidifier is stopped and the remote general fault alert is initiated. The remote main- tenance alert is kept off.
LECTRO Maintenance - PCB replacement Main board ref: 500102 Transformer of intensity (TI) Power cable hole in transformer When the PCB or a power cable is replaced, it is essential for correct operation to use the method of wiring appropriate to your exact model of humidifier. For humidifiers with multiple cylinders, wire up each corresponding Torroidal Transformer with relevant method.
LECTRO Maintenance - Cleaning of steam cylinder The ELMC humidifiers are currently fitted with disposable cylinder (s).The latter can however be easily substitued for cleanable type at customer’s choice. REPLACING THE STEAM CYLINDER Drain the steam cylinder(s) fully using the manual drain key. When the cylinder(s) is/are drained fully (a «...
LECTRO Maintenance - Valves DRAIN VALVE MAINTENANCE The drain valve should be maintained whenever the steam cylinder is maintained or changed. Once the steam cylinder has been pulled out (please refer to the « cleaning of the steam cylinder » page ), disconnect the drain valve supply wires.
LECTRO Maintenance - Valves INLET VALVE MAINTENANCE The inlet valve should be maintained every 6 months as a minimum and after 50 hours operation. Isolate the water supply and remove the water supply hose from the valve. Disconnect the electrical wires from the coil. Untighten the collar clamp and remove the water feed hose.
Page 58
LECTRO Maintenance - Spares list Code Description 930058 Filling cup with hoses for ELMC 1 small sized cylinder 930059 Filling cup with hoses for ELMC 1 large sized cylinder 930060 Filling cup with hoses for ELMC 2 cylinders 930061 Filling cup with hoses for ELMC 3 cylinders (left hand side) 930062 Filling cup with hoses for ELMC 3 cylinders (right...
Page 59
LECTRO Maintenance - Spares list Code Description 930190 Brass nut Ø8mm 930148 Bag of 3 fibre washers 15+18 930211 High water level electrode + nut Ø4mm Cylinder upper half—Please consult factory 930203 Bag of bolts & nuts ELMC small sized cylinder (cleanable cylinder ) 930223 Bag of bolts &...
Page 60
LECTRO Maintenance - Spares list In standard production, the humidifiers are fitted with disposable cylinder(s) EA= Softened water Code Description 930010 Small sized disposable cylinder 930020 Small sized isposable cylinder EA 930028 Small sized cleanable cylinder 930037 Small sized cleanable cylinder EA Code Description 930014...
Page 61
LECTRO Maintenance - Spares list Code Description 930101 ELMC digital display (réf: 500600/03) 930104 Auxiliary board ELMC 40-50-60 (réf: 500301/05-2TI) 930105 Auxiliary board ELMC 90 (réf: 500301/05-3TI) 930091 Power contactor D18 930207 Power contactor D25 930093 Power contactor D32 930283 Power contactor DPE32P7 930100 On/off rocker switch 930099 Stand-by power lamp...
Page 62
Pictures for illustrating purposes only...
Page 63
Pictures for illustrating purposes only...
