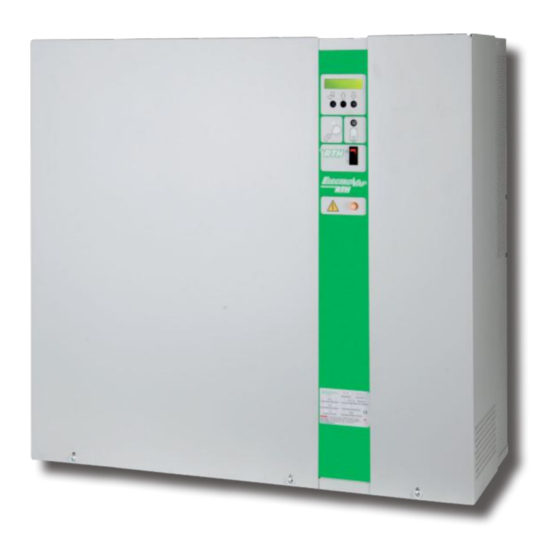

Devatec ElectroVap Technical Manual

Devatec ElectroVap Technical Manual

Resistive steam humidifier rth 5 to 50 kg/h
Hide thumbs Also See for ElectroVap:

Advertisement

TECHNICAL MANUAL
RESISTIVE STEAM
HUMIDIFIER
RTH 5 to 50 kg/h

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ElectroVap and is the answer not in the manual?

Questions and answers

Summary of Contents for Devatec ElectroVap

  • Page 1 TECHNICAL MANUAL RESISTIVE STEAM HUMIDIFIER RTH 5 to 50 kg/h...
  • Page 3: Table Of Contents

    ElectroVap RTH-V2 Contents SAFETY INSTRUCTIONS 1.1 Introduction 1.2 Important notes 1.3 Declaration of conformity 1.4 RoHS Declaration PRODUCT PRESENTATION 2.1 Characteristics 2.2 Dimensions 2.3 Humidifier component parts 2.4 Important instructions INSTALLATION 3.1 Procedure 3.2 Water supply 3.3 Dispersion tube positioning 3.4 Steam outlet...
  • Page 4: Safety Instructions

    1 - Safety instructions 1.1 INTRODUCTION You recently purchased the ElectroVap RTH V2, and we hope you enjoy this product. Thank you for the trust you place in us. The safety instructions contained in this manual are intended for specialized, qualified and authorized personnel.
  • Page 5: Important Notes

    Devatec guarantees that its devices are one (1) year warranty. Devatec’s liability will be limited exclusively to Devatec’s repair or replacement of the part or product, excluding labor, disassembly or installation costs. Devatec may also decide to refund warranty the purchase price of the product or part of it, at its discretion.
  • Page 6: Declaration Of Conformity

    EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-6-2 EN 61000-6-3 Humidifier DEVICE TYPE ElectroVap RTH V2 MODEL NAME 2007 MODEL YEAR Devatec CONSTRUCTOR 185 Boulevard des Frères Rousseau 76550 Offranville - FRANCE We the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 7: Product Presentation

    2 - Product presentation 2.1 CHARACTERISTICS The ElectroVap RTH V2 is an electric humidifier, designed for air humidification in air handling unit. Like all the others humidifiers of the range, it is compatible with the Blower Pack. 1. One steam humidifier with a stainless steel tank supplied with an on/off or proportional control and technical documentation.
  • Page 8: Dimensions

    ElectroVap RTH-V2 2.2 DIMENSIONS Front Side Repères A Width B Height C Depth D Steam outlet 1 E Steam outlet - Side view F Tank draining - Front view G Tank draining - Side view H Water inlet - Face...
  • Page 9: Humidifier Component Parts

    ElectroVap RTH-V2 2.3 HUMDIFIER COMPONENT PARTS Steam hose On/ Off switch Ø12x16 mm water feed hose Power contactor Ø16x27 mm hose clamps Wire tunnel Filling cup Ø18x22 mm overflow hose Tank Water inlet valve Resistor Display board Anti-limestone system Main PCB board & Transformer...
  • Page 10: Important Instructions

    ElectroVap RTH-V2 2.4 IMPORTANT INSTRUCTIONS • Ambient temperature : between 5 and 40°C • Ambient humidity : < 80% Relative humidity • Back side : this component heats during operation (up to 60°C). Make sure that the support of the device is not made of a heat-sensitive material.
  • Page 11: Installation

    ElectroVap RTH-V2 3 - Installation 3.1 PROCEDURE • Using the drilling template that came with the device, mark and drill where indicated (holes depending on the selected dowels and support materials). • Put the dowels in the holes. • Screw the top screws into the dowels, let them protrude by about 10 mm.
  • Page 12 ElectroVap RTH-V2 • Unlock the tank cap and lay it upside down on the top of the humidifier. • Release the holding steel chain while holding the tank. • Let the tank gently tip until it stops. • Insert screws on V4, V5, V6 & V7 and tighten up all the 7 screws.
  • Page 13: Water Supply

    ElectroVap RTH-V2 3.2 WATER SUPPLY 3.2.1 Water recommendations The device is designed to be used with : Potable water : According to 98/83/EEC directive, TH must be less than 40°fH and higher than 30 µS/cm. (Natural) Soft water : • If water conductivity is higher than 30 µS/cm, use an electrode level sensor (standard potable water).
  • Page 14: Dispersion Tube Positioning

    2388 2398 2702 DL-9 2693 2703 3007 DL-10 2998 3008 Reduction Ø60/40 mm used with D40 (Ø40) tubes for ElectroVap RTH 5 - 20. Pictures and values are not contractual - The devices may be subject to changes without notice...
  • Page 15 ElectroVap RTH-V2 3.3.2 Dispersion tubes mounting For ensuring the best steam dispersion possible, we would recommend installing the steam tubes in either diameter as in the two methods described underneath (valid for both Ø60 mm, Ø40 mm). Step 1 - Installation into a duct...
  • Page 16 5m/s). This calculation table is to be used for temperatures between 20°C and 25°C ( Maximum air speed For calculated distances, contact your Devatec agent. 3.3.5 Minimal humidification distance The steam dispersion pipes must be positioned after the minimum specified absorption distance. Please follow the guidelines depending on the configuration of your air handling unit.
  • Page 17 • A high humidity limit humidistat must be installed in the duct to stop the humidifier in case the level of humidity exceeds the preset value. • If the recommended distances cannot be met, please contact Devatec or their authorized agent for an alternative solution.
  • Page 18 ElectroVap RTH-V2 H1 = 110 mm = Minimum height between the duct floor and the axle of the steam pipe. H2 = 140 mm minimum for a standard mounting / 110 mm minimum for a stair mounting. H3 = 160 mm = Minimum height between the axle of the dispersion tube and the top of the duct wall.
  • Page 19 ElectroVap RTH-V2 In vertical ducts where the air flow is upward In duct with limited height, the distribution or downward, the steam distribution pipe(s) pipe(s) can be tilted by 30° to get the 80 mm must be tilted by 15° sideways.
  • Page 20: Steam Outlet

    ElectroVap RTH-V2 3.4 STEAM OUTLET 1. Use preferably hose from our supply. NB : when new hoses are installed, a smell of burnt plastic may be smelt during the first running of the steam humidifier. This is normal and will eventually diminish.
  • Page 21: Blowerpack Fan Unit

    As far as the EHF-3 is concerned, please revert to the recommendations given on the EHF-3 information sheet. Never connect the EHF-3 unit on the terminals 3 & 4 of the humidifier when a 100 VA transformer is installed inside the ElectroVap RTH humidifier.
  • Page 22: Drain Water & Condensate Draining

    3.6 DRAIN WATER & CONDENSATE DRAINING The following drawings show the water draining connections that should be made. 1. The Devatec supplied steam hose should be used : • RTH 5 to 50 : 1.5 m Ø 40 mm hose with 2 hoses clamp (supplied).
  • Page 23: Water Cooling Kit Option

    ElectroVap RTH-V2 3.7 WATER COOLING KIT OPTION 3.7.1 Functioning This equipment cools the humidifier's drain water and provides an outlet temperature below 65°C with a supply water of 15 ° C at a distance of 1 m after the cooling kit.
  • Page 24: Electrical Connections

    ElectroVap RTH-V2 3.8 ELECTRICAL CONNECTIONS All work on the electrical parts must be carried out by qualified and authorized personnel. In addition, before making any electrical connections, check that your installation has been determined from the values in the table above.
  • Page 25 ElectroVap RTH-V2 1. Power disconnector and circuit breaker 2. Power supply cable 3. Electrical compartment Since the risk of electric shock can be fatal, it is necessary to install circuit breakers. Install a differential electrical circuit breaker at the top of the network supplying the humidifiers inside the general switchboard.
  • Page 26 ElectroVap RTH-V2 E) U=3x208-220-230V RTH 8 - 36 Q2 : 3 poles Power in 208-230V 50-60Hz Q1 : 2 poles 2A GROUND F) U=3x440-460-480-575-600V RTH 7 - 50 Q2 : 3 poles Power in xxx VAC 50-60Hz Q1 : 2 poles...
  • Page 27 ElectroVap RTH-V2 3.8.2 OPTIONAL TRANSFORMER The RTH 5 to 50 humidifiers are electrically supplied in 3 x-XXX VAC + T + N. If your installation does not have a neutral, it is possible to add a transformer option that allows, at lower cost, to replace a neutral line.
  • Page 28 ElectroVap RTH-V2 The connection of the options below must be done with a flexible cable of 0.75 mm² maximum. 3.8.3 REMOTE INFORMATION BOARD (OPTION) Contact can be modified in NO or NF by wiring as per the following diagrams (ex: wiring on 30 & 31 = NO contact).
  • Page 29 ElectroVap RTH-V2 3.8.5 MODBUS RTU & BACNET MSTP COMMUNICATION PARAMETERS At the risk of communication errors, the network must consist exclusively of humidifiers. The requests passing on the BUS must in no case exceed 15 bytes. ModBus RTU Bacnet MSTP...
  • Page 31 ElectroVap RTH-V2 3.8.7 WIRING DIAGRAMS RTH 5 & 8 (MONOPHASE) Amperage Fuse function Protection of power contactor coil Protection of the inlet valve coil Protection of the drain valve coil 100 mA Protection of the electronic boards Pictures and values are not contractual - The devices may be subject to changes without notice...
  • Page 32 ElectroVap RTH-V2 RTH 5 - 40 (THREE-PHASE) Pictures and values are not contractual - The devices may be subject to changes without notice...
  • Page 33 ElectroVap RTH-V2 RTH 45 - 50 (THREE-PHASE) Pictures and values are not contractual - The devices may be subject to changes without notice...
  • Page 34: Temperature Sensor Connection

    ElectroVap RTH-V2 3.9 TEMPERATURE SENSOR CONNECTION HUMIDIFIER RTH 5 / 1X230V Butée COUVERCLE VUE DE Butée DESSUS / LID TOP VIEW 2/T1 3/A1+ 1/L1 4/A2- Butée 13NO 14NO T°C T°C (T°C) Emplacement sonde de température / Humidity sensor location Humidity sensor Butée...
  • Page 35 ElectroVap RTH-V2 HUMIDIFIER RTH 5 - 15 / 3X380-400V-415V Butée COUVERCLE VUE DE DESSUS / LID TOP VIEW Butée 2/T1 3/A1+ 4/A2- 1/L1 Butée 2/T1 3/A1+ 1/L1 4/A2- Butée T°C T°C 13NO 14NO (T°C) Humidity sensor location Butée Façade appareil /...
  • Page 36 ElectroVap RTH-V2 HUMIDIFIER RTH 40 / 3X380-400V-415V Butée Butée 2/T1 3/A1+ 4/A2- 1/L1 Butée 2/T1 3/A1+ 1/L1 4/A2- Butée T°C T°C (T°C) 13NO 14NO COUVERCLE VUE DE Emplacement sonde de DESSUS / LID TOP VIEW Humidity sensor Butée température / Humidity location Façade appareil /...
  • Page 37 ElectroVap RTH-V2 3.9.1 Water level management board RTH avec 1 ou 2 contacteurs S1,S2 RTH with 1 or 2 contactors S1,S2 500852/4 500852/4 Numbers on the water management Numéros sur platine de (réf. 500852/4) gestion des niveaux board (réf. 500852/4)
  • Page 38: Control Connection

    ElectroVap RTH-V2 3.10 CONTROL CONNECTION The wiring of the optional equipment must be made with 0.75 mm flexible cable. This control signal wire should not go along with a power cable. Outside connections Electrical compartment RTH ON / OFF Safety switch...
  • Page 39: Setting Up

    ElectroVap RTH-V2 4 - Setting up Before putting the humidifier in operation, please make sure that the installation is in conformity with the manufacturer’s technical specifications. • Make sure that the blue anti-bubble hose is correctly set inside the The blue anti-buble hose filling cup.
  • Page 40: Software Assistant

    ElectroVap RTH-V2 5 - Software assistant 5.1 MENU INFORMATION HUMIDIFIER HUMIDIFIER STATUS SETUP V : X.XX.XXX RTH : VERSION CODE RTH: XXX 3X400V FILLING TANK If the tank is empty: it displays that the tank filling is in process IN PROCESS AQUASTAT If Aquastat is “ON”= Frost protection...
  • Page 41 ElectroVap RTH-V2 REMOTE STOP Stop the unit by Modbus or Bacnet NETWORK HIGH LIMIT Means that the high limit switch is opened SWITCH IS OPEN RH SENSOR With RH sensor only: it means that the RH sensor is not ERROR...
  • Page 42: Setup Menu

    . 4 - 20mA CONTROL, 0 - 5V CONTROL, 0 - 10V CTRL SIGNAL TYPE CONTROL, 2 - 10V CONTROL . XXXX XXX . DEVATEC SENSOR, 0 - 5V SENSOR, 0 - 10V SENSOR. . DIGITAL SENSOR, DIGITAL CTRL. Display when a RH sensor is used...
  • Page 43 ElectroVap RTH-V2 AQUASTAT SETTING AQUASTAT setting: Off or On : frost system enable or disable Maximum temperature wanted 65°C > °C > 95°C 149°F > °F > 203°F AQUASTAT SP XX °F XX °C WATER TYPE USED Water type: “TAP WATER”, “DI WATER”, “PARTIAL DI XXXX XXXX WATER”, “SOFTENED WATER”...
  • Page 44: Control System Menu

    ElectroVap RTH-V2 5.3 CONTROL SYSTEM MENU HUMIDIFIER CONTROL CONFIGURATION SYSTEM : Contactor 0: off / 1 on : Fill Valve 0 closed / 1 opened K FV DV LV : Drain Valve 0 closed / 1 opened : Levels 0: Low level, filling...
  • Page 45 ElectroVap RTH-V2 Alarm status A2 0: no fault/ 1: fault A6 LV DV TIMER Levels 0, 1, 2, et 3 Drain Valve 0: closed/ 1: opened TIMER: Timeout Alarm A6 Alarm status A2 0: no fault/ 1: fault A7 LV D% TIMER...
  • Page 46: Change Settings Menu

    ElectroVap RTH-V2 5.4 CHANGE SETTINGS MENU Procedure to enter the access code: : • Press the "1" key: the first cross flashes. • Press the "2" key to increase the number or the "3" key to decrease it. • Once you have reached the desired number of the code, press the "1"...
  • Page 47 ElectroVap RTH-V2 HUMIDIFIER HUMIDIFIER STATUS CONFIGURATION FRANCAIS / ENGLISH LANGUAGE: XXXX CHANGE UNIT TYPE: RTH model (see range) RTH XX Selection of power heating ( 2x220, 2x230, 3x208, CHANGE VOLTAGE: 3x220, 3x230, 3x380, 3x400, 3x415, 3x440, 3x460, X.XXX V 3x480, 3x575, 3x600, 3x690)
  • Page 48 ElectroVap RTH-V2 SELF CHECKING Start up of self-checking system (“YES” or “NO”) CALIBRATION CTRL Calibration of control signal (-10% at +10%) SIGNAL: XX % CALIBRATION T° RIGHT: Calibration of the tank temperature sensor (-5% at XX % +5%). For the RTH 2 tanks: righ temperature.
  • Page 49: Maintenance Alerts

    ElectroVap RTH-V2 5.5 MAINTENANCE ALERTS This message is displayed 50 hours after the first start-up. It is then necessary to check the tightness of the M1: CHECKING 50hr electrical and hydraulic connections (steam pipe, drain circuit, water supply, etc.). The device is not stopped.
  • Page 50: Fault Messages

    ElectroVap RTH-V2 5.6 FAULT MESSAGES Meaning : A1: TANK TEMP. The temperature inside the tank is too high: > 110 ° C. OVER-HEAT The heating elements are no longer completely immersed. In that case : When this message appears, the tank is drained, the general fault contact is activated and the unit is then stopped.
  • Page 51 ElectroVap RTH-V2 Meaning : A2: DEFECTIVE The filling of the tank is not carried out correctly. The water level does TANK FILLING not reach the low water detection level. (Maximum duration of filling before alarm: 20 min). Meaning : A3: FILLING That the filling of the evaporation zone does not take place correctly.
  • Page 52 ElectroVap RTH-V2 Meaning : A4: TEMP. SENSOR This means that the temperature sensor either fails or does not work DISCONNECTED correctly. In that case : When this message appears, the tank is drained, the general fault contact is activated and the unit is then stopped.
  • Page 53 ElectroVap RTH-V2 Meaning : A6: HIGH This means that the high level is continuously activated (time before LEVEL BLOCKED detection: 14 minutes). In that case : When this message appears, the tank is drained, the general fault contact is activated and the unit is then stopped.
  • Page 54 ElectroVap RTH-V2 Meaning : A7: VAPORIZATION The vaporization time between level 3 and 1 is too long. TOO LONG In that case : When this message appears, the tank is drained, the general fault contact is activated and the unit is stopped.
  • Page 55 ElectroVap RTH-V2 Meaning : A9: COMPLETE The drain valve is defective. DRAIN TOO LONG In that case : When this message appears, the tank is drained, the general fault contact is activated and the unit is then stopped. Causes and remedies 1.
  • Page 56: Maintenance

    ElectroVap RTH-V2 6 - Maintenance 6.1 STAINLESS STEEL TANK RTH 5 TO 50 1. Drain the tank out by pressing the manual drain button (s.a. Fig. 1 picture n°1). Wait for complete draining and allow the tank to cool down (if this feature has been enabled).
  • Page 57 ElectroVap RTH-V2 After removing the tank cover (mind the positioning marks), turn it over and place it on the top of the device (Fig. 7) Fig. 7 1. Place the limestone collection bag on the tank and secure it with the clips on each side (Fig.
  • Page 58: Water Level Detector Maintenance

    ElectroVap RTH-V2 6.2 WATER LEVEL DETECTOR MAINTENANCE DETECTOR MAINTENANCE HAS TO BE DONE DURING EACH TANK MAINTENANCE: • Disconnect the cables from the water level sensor (1), unscrew the retaining collar from the pressure equalizing tube and disconnect it from the tank cover.
  • Page 59: Valves Maintenance

    ElectroVap RTH-V2 6.3 VALVES MAINTENANCE 6.3.1 Drain valve maintenance DETECTOR MAINTENANCE HAS TO BE DONE DURING EACH TANK MAINTENANCE: • Tilt the holder (1) to the left • Remove coil (2) • Remove the assembly (3) and check the condition of the membrane (4). Rinse the inside of the body (5).
  • Page 60: Spare Parts

    ElectroVap RTH-V2 6.4 SPARE PARTS 6.4.1 Stainless steel tank Code Description Stainless steel tank D36279 Electrical Resistors 1,9 Kw (230V) 930547 Electrical Resistors 1,9 Kw (277V) 930543 Electrical Resistors 1,9 Kw (346V) D36280 Electrical Resistors 4,3 Kw (230V) 930548 Electrical Resistors 4,3 Kw (277V)
  • Page 61 ElectroVap RTH-V2 6.4.2 Filling cup Code Description D43662 Filling cup + Tank cover Anti-buble blue hose (inside filling 930272 cup) 930520 Overflow Ø18x22 mm - Lg115 cm Water feeding hose Ø18x22 mm - 930518 Lg36 cm Water hose Ø12x16 mm - Lg33,5 cm...
  • Page 62 ElectroVap RTH-V2 6.4.4 Water level detector Code Description D94062 Water level assembly RTH-V2 930588 EPDM70 « O » ring Ø88x3 mm 930587 Water level sensors (set of 4) eyelet terminal Stainless steel bolt Ø4 mm Self thread screw Ø3,9 - L.13 mm Stainless steel screw Ø4 - L.
  • Page 63 ElectroVap RTH-V2 6.4.6 Electrical part Only for the RTH 2 with two tanks Code Description D92442 Water level control board D92949 RTH main CMS-0TI board D27109 Display board D50931 Remote information board (option) Ø4 - L8 mm stainless steel cylindrical...
  • Page 64 Division france: tel. 02 35 04 61 41 Email: france@devatec.com - www.devatec.com Devatec keeps developing its products. For that reason, characteristics and specifications of the products may change without prior notice. RTH-V2 tech. - edition 10/2019 - For program version V3.0.X...
