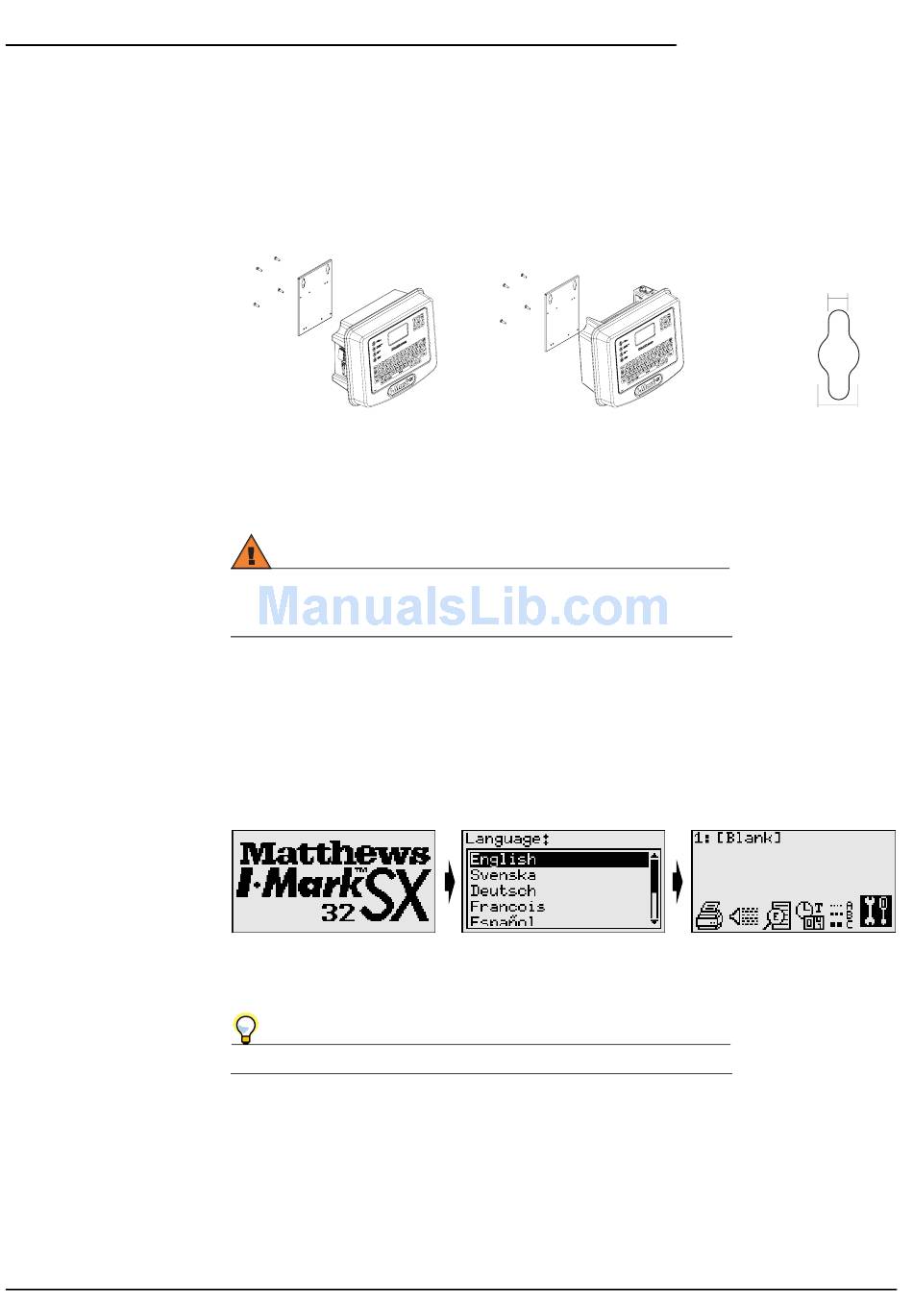

Mounting the Bracket
1 Using the four screws supplied, attach the wall bracket to the rear of the SX-32e.
Make sure that the screws are not over tightened as this may damage the threads.
The bracket can be mounted so that the cable connections are above or below (in
front or behind) the SX-32e.
Use the round holes
2 Use the holes in the bracket to mount the SX-32e onto a vertical or horizontal sur-
face.
UL94 requires that the SX-32e control unit is easily removed from its fittings.
For this reason the screws holding the bracket against the wall shall not be
tightened.

Switching On for the First Time

If this is the first time the SX-32e has been switched on or if factory settings have
been restored, then the display language must be set before the main screen is shown.
Product identification screen
1 Wait for the product identification screen to change to the display language screen.
Pressing OK will cause the display language screen to be shown immediately.
Use the square holes
Display language screen
I•Mark SX-32e Technical Manual Version: 8 Issue: 1
8,3 mm (0,3 in)
17 mm (0,6 in)
Main screen
