I N S TA L L A T I O N
16

Connecting External Equipment

This chapter assumes that:
• the system components are in place, see "Positioning and Mounting" on
page 11.
The next step is to connect the external equipment to the control unit.
The following equipment can be connected:

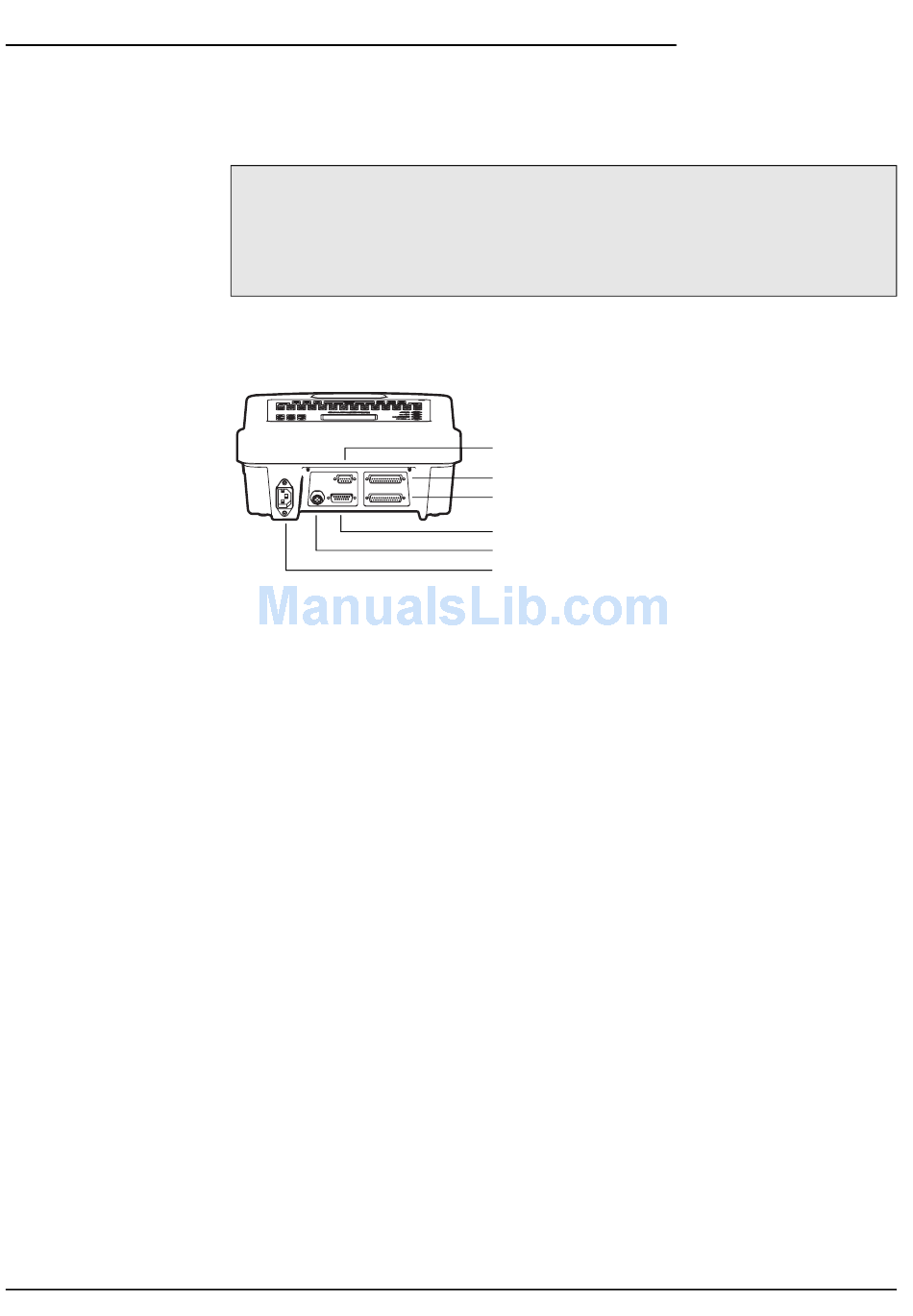

Rear view
* Also for input/output (I/O) signals and alternative connector for printout activator. Only one printout
activator may be connected.
** Preferred connector for printout activator.
Contact your dealer for more information and necessary cables.
Note that the standard Matthews warranty is void if any other than Matthews
approved equipment and cables are connected to this control unit.
RS-232 communication port
Print head connector A
Print head connector B
Speed encoder*
Printout activator**
Power inlet
