Margin settings
Print head settings
Printer Settings
Printout height
Print head number: print direction
Target speed source: setting
Printer settings apply to all messages.
All printout settings are set after each other in a single sequence starting with the
print direction and ending with the dot size. Changes to the settings are adopted when
the final parameter (dot size) has been set and OK has been pressed. If
at any time before the final OK, any changes will be ignored.
1 Switch the control unit on.
2
When the main screen is shown, follow the above path.
3
Set each setting according to the following:
Select print direction setting - For individual print heads
Description
For setting the print direction for each head in turn.
Settings
Shown as L on current
settings screen (prints
the last character first)
Select speed source setting - For all print heads
Description
For setting how the control unit receives information on the print target
speed.
Comments
• Manual = The speed is set manually (see Manual speed below)
• Encoder = The speed is adjusted automatically according to pulses
from a speed encoder (see Encoder factor below)
Enter manual speed setting - For all print heads
Description
For setting the print target speed when a speed encoder is not used.
• Margin for each print head
• Print head type
• Print head configuration
• Standby compensation

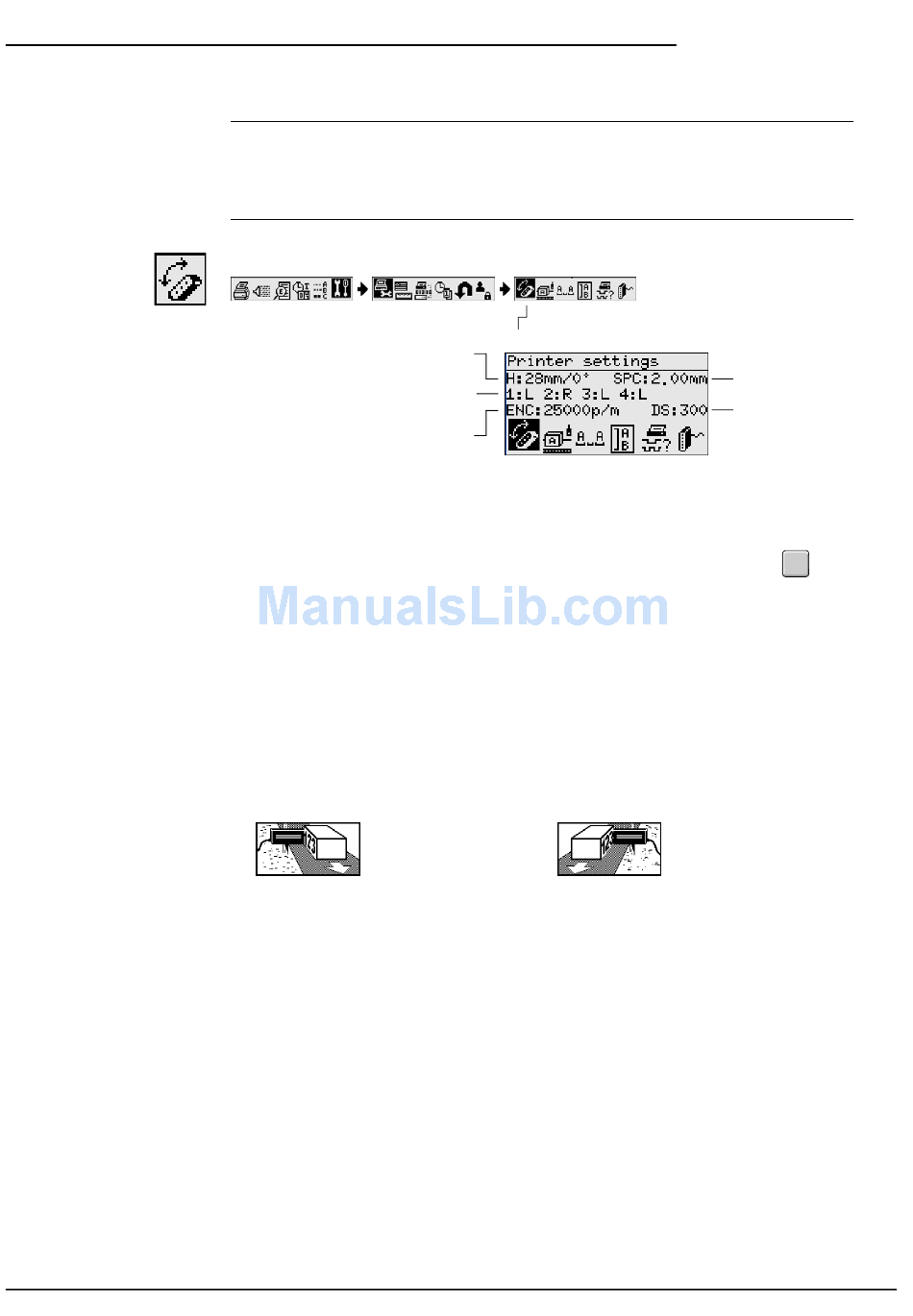

Current printer settings screen
I•Mark SX-32e Technical Manual Version: 8 Issue: 1
Column spacing
Dot size
is pressed
Esc
Shown as R on current
settings screen (prints
the first character first)
