Cartridge Filters - CJ Series Filter
Section 9. Parts List and Exploded

View

®
9.1 Jandy
Cartridge Filter, CJ Series
Key
No.
Description
1
Locking Ring
2
Locking Ring Safety Latch
3
Pressure Gauge
4
Pressure Gauge/Air Release Adapter
(set of 2)
5
Air Release Valve
6
Handle w/Screws (set of 2)
7
TankBody Assembly, Upper, CJ200
TankBody Assembly, Upper, CJ250
8
Upper Bearing Assembly
9
Filter Cartridge, CJ250
Filter Cartridge, CJ200
10
Breather Tube
11
Breather Tube Support w/Screws, CJ250
(set of 3 screws)
Breather Tube Support w/Screws, CJ200
(set of 3 screws)
12
Tank O-ring
13
Cartridge to Plenum Adapter, w/Screws
14
Plenum w/Gasket
15
Half Unions w/O-rings (set of 3) and Drain
Plug Cap
16
Retaining Ring, CJ Series
17
Tank Bottom w/Retaining Ring
18
Anchor Brackets (set of 4)
Not Shown:
O-ring Replacement Kit
Hardware Kit
Accessory Bag, w/Half Unions (set of 2),
Pressure Gauge, Pressure Relief Valve,
Instructions
Safety Label Kit (Inlet, Outlet, Drain)
Installation/Instruction Manual
9.2 Jandy
Part
No.
4
R0557500
R0557400
R0556900
R0557100
R0557200
R0557300
R0559701
R0559702
R0557600
R0556700
R0556800
R0557700
R0557801
R0557802
R0557900
R0558000
10
R0558100
R0558200
R0409900
11
R0410000
R0395100
R0558300
R0558500
R0558400
R0560600
H0556400
15
®

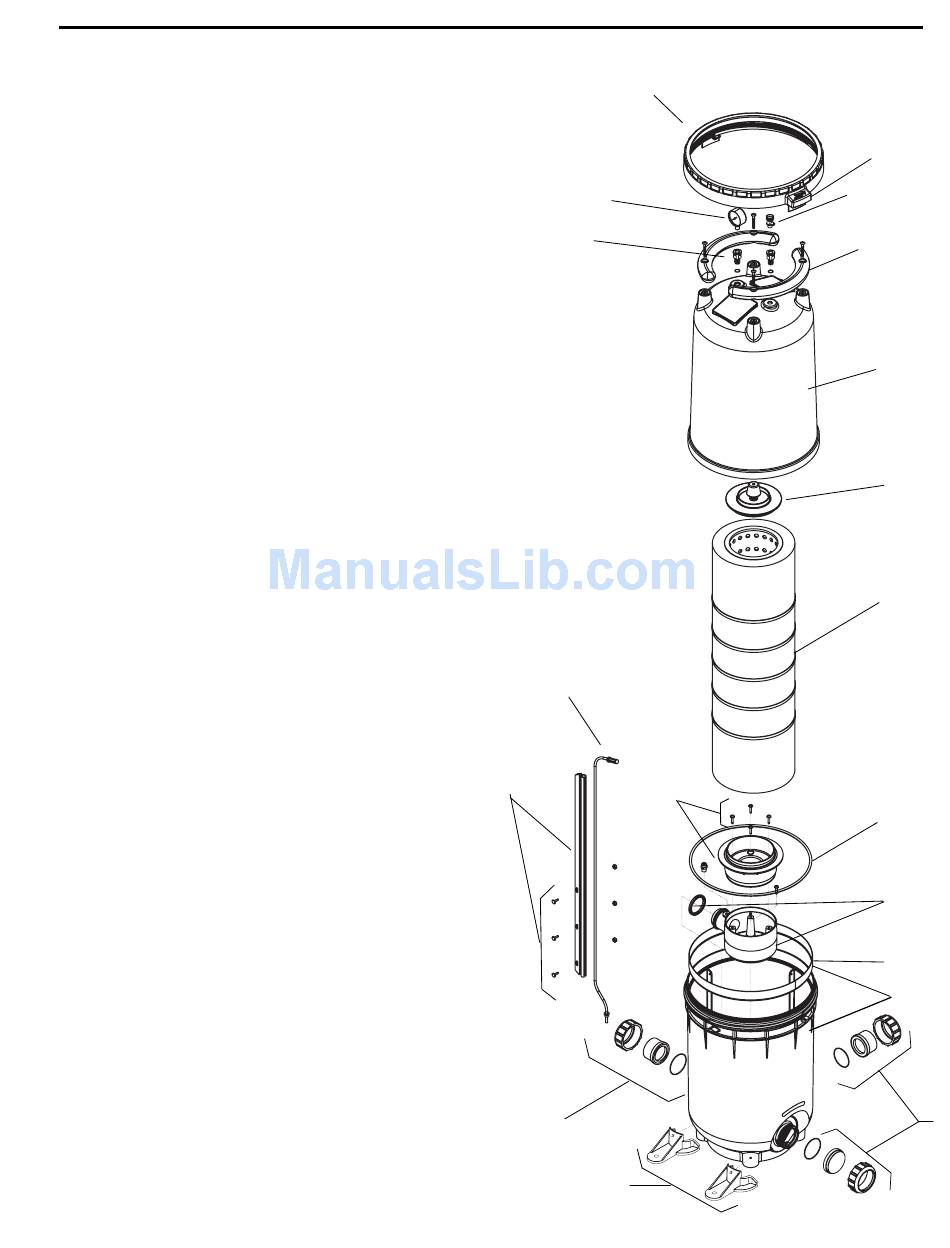

CJ Cartridge Filter Exploded View
