Embedded Web Server: Using the X-Series Signal Analyzers Remotely

Enabling SCPI Control of the instrument

Selecting this tab enables you to control the instrument via SCPI.

Selecting the Get Image tab

Selecting the Get Image tab captures a screen image from the Instrument
display.
To capture a screen image using the web server, the Instrument Application must
be running.
The image is captured as a Portable Network Graphics (PNG) file, to the default
file name Screen.png. The image file can be saved to the client computer disk
drive, or copied to the Windows clipboard.

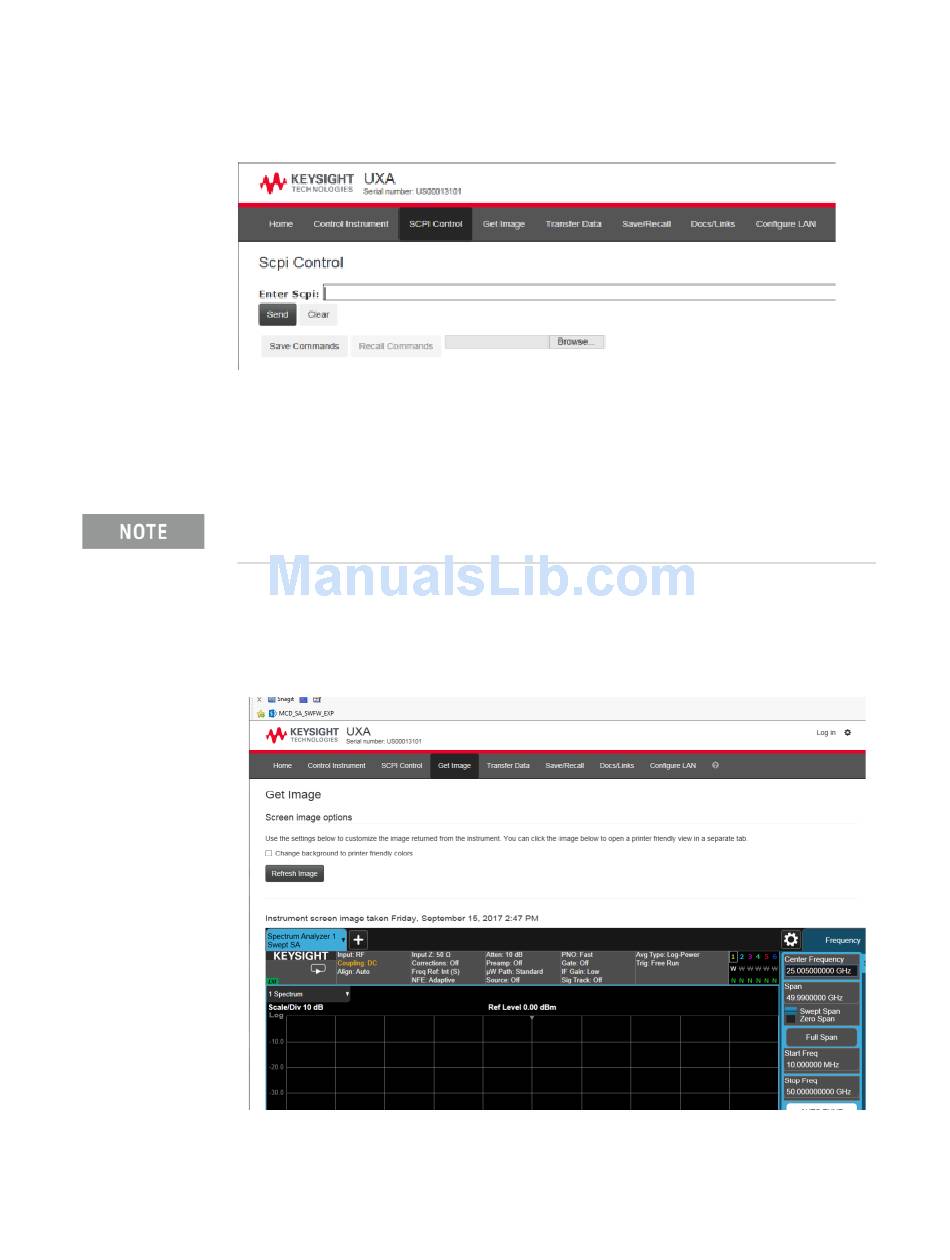

A typical screen capture image appears as follows:
