Evaluation Kit for the Single-Phase Energy Metering IC with 8052 MCU, RTC, and
LCD Driver (ADE71xx/ADE75xx/ADE51xx/ADE55xx Family)
FEATURES
Full evaluation kit including evaluation board hardware,
evaluation software, and development tools
Supported by IAR development tools for assembly and
C code development
Isolated USB-to-UART communication
LabVIEW evaluation software for evaluation of meter
performance
LabVIEW download tools for user firmware download
Single evaluation board supports
ADE7116/ADE7166/ADE7169/ADE7566/ADE7569 and
ADE5166/ADE5169/ADE5566/ADE5569
EVAL-ADE7169EBZ-2 comes with ADE7169 IC installed
EVAL-ADE5169EBZ-2 comes with ADE5169 IC installed
DOCUMENTS NEEDED
ADE7116/ADE7166/ADE7169/ADE7566/ADE7569 data sheet
ADE5166/ADE5169/ADE5566/ADE5569 data sheet
Please see the last page for an important warning and disclaimers.
ADE71xx/ADE75xx/ADE51xx/ADE55xx EVALUATION BOARD
Evaluation Board User Guide
SOFTWARE NEEDED
PC-based evaluation software tests the performance of the
ADE7116/ADE7166/ADE7169/ADE7566/ADE7569 and
ADE5166/ADE5169/ADE5566/ADE5569
GENERAL DESCRIPTION
The EVAL-ADE7169EBZ-2/ADE5169EBZ-2 kit includes an
isolated USB-to-UART converter (ADE8052Z-DWDL1)
for communication and debugging purposes. The ADE7116/
ADE7166/ADE7169/ADE7566/ADE7569/ADE5166/ADE5169/
ADE5566/ADE5569 (hereafter referred to as ADE71xx/ADE75xx/
ADE51xx/ADE55xx) family is supported by the IAR develop-
ment environment. Evaluation software developed in LabVIEW™
provides the means to evaluate the performance of the ADE71xx/
ADE75xx/ADE51xx/ADE55xx.
The evaluation kit includes a CD that provides all of the asso-
ciated documentation, tools, and drivers to set up and use the
evaluation board for the ADE71xx/ADE75xx/ADE51xx/ADE55xx.

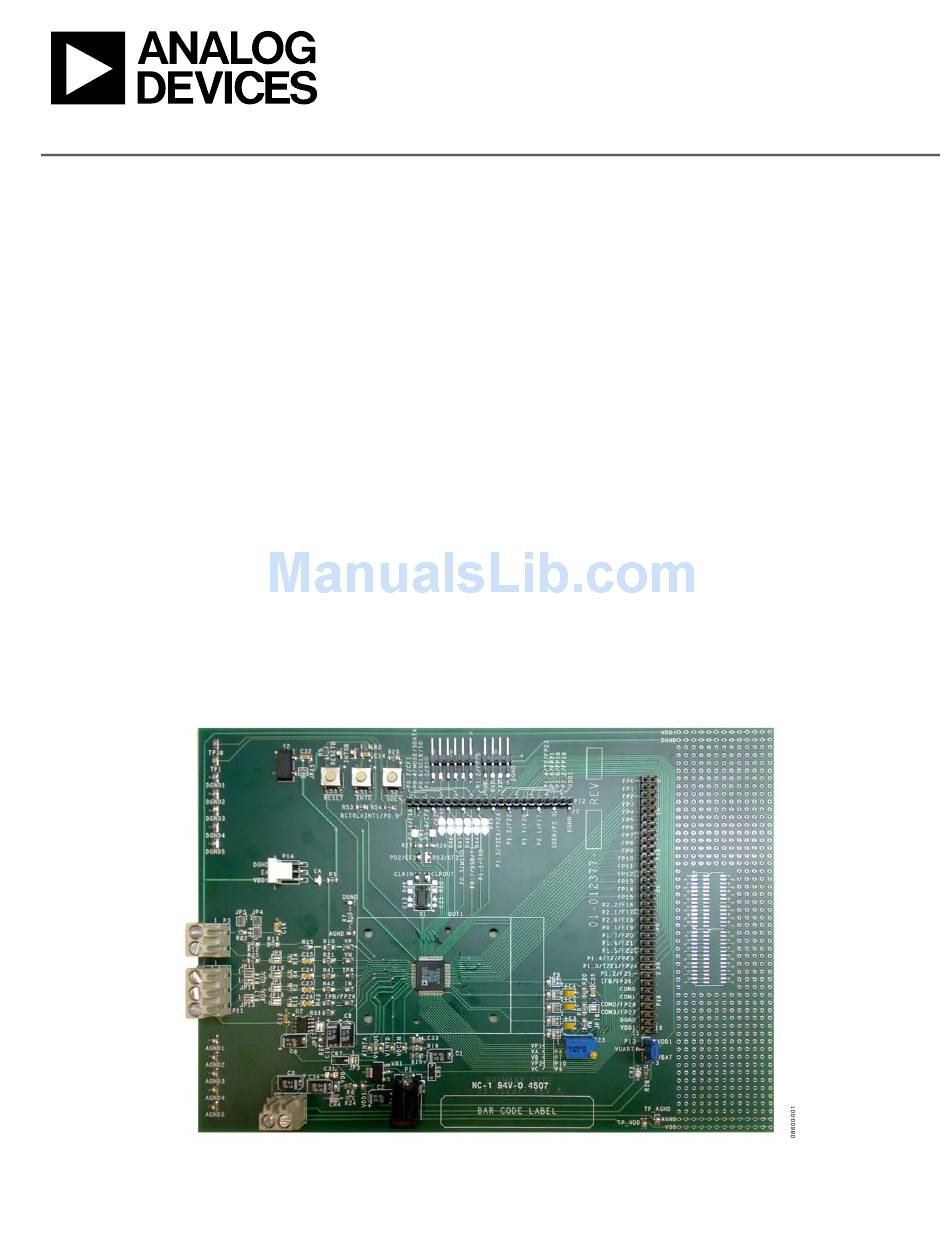

Figure 1.
Rev. 0 | Page 1 of 1
