One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
High Speed ADC USB FIFO Evaluation Kit (HSC-ADC-EVALB-DCZ)

FEATURES

Buffer memory board for capturing digital data used with
high speed ADC evaluation boards to simplify evaluation
32 kB FIFO depth at 133 MSPS (upgradable)
Measures performance with ADC Analyzer™
Real-time FFT and time domain analysis
Analyze SNR, SINAD, SFDR, and harmonics
Simple USB port interface (2.0)
Supporting ADCs with serial port interfaces (SPI)
On-board regulator circuit, no power supply required 6 V, 2 A
switching power supply included
Compatible with Windows 98 (2nd ed.), Windows 2000,
Windows ME, and Windows XP

EQUIPMENT NEEDED

Analog signal source and antialiasing filter
Low jitter clock source
High speed ADC evaluation board and ADC data sheet
PC running Windows 98 (2nd ed.), Windows 2000, Windows ME,
or Windows XP
Latest version of ADC Analyzer
USB 2.0 (USB 1.1-compatible) port recommended

GENERAL DESCRIPTION

The high speed ADC FIFO evaluation kit includes the latest
version of ADC Analyzer and a buffer memory board to capture
blocks of digital data from the Analog Devices, Inc., high speed
analog-to-digital converter (ADC) evaluation boards. The FIFO
board is connected to the PC through a USB port and is used with
ADC Analyzer to quickly evaluate the performance of high speed
ADCs. Users can view an FFT for a specific analog input and
encode rate to analyze SNR, SINAD, SFDR, and harmonic
information.
The evaluation kit is easy to set up. Additional equipment needed
includes an Analog Devices high speed ADC evaluation board,
a signal source, and a clock source. Once the kit is connected
and powered, the evaluation is enabled instantly on the PC.
The HSC-ADC-EVALB-DCZ can be used with single and multi-
channel ADCs and converters with demultiplexed digital outputs.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

Evaluation Board User Guide

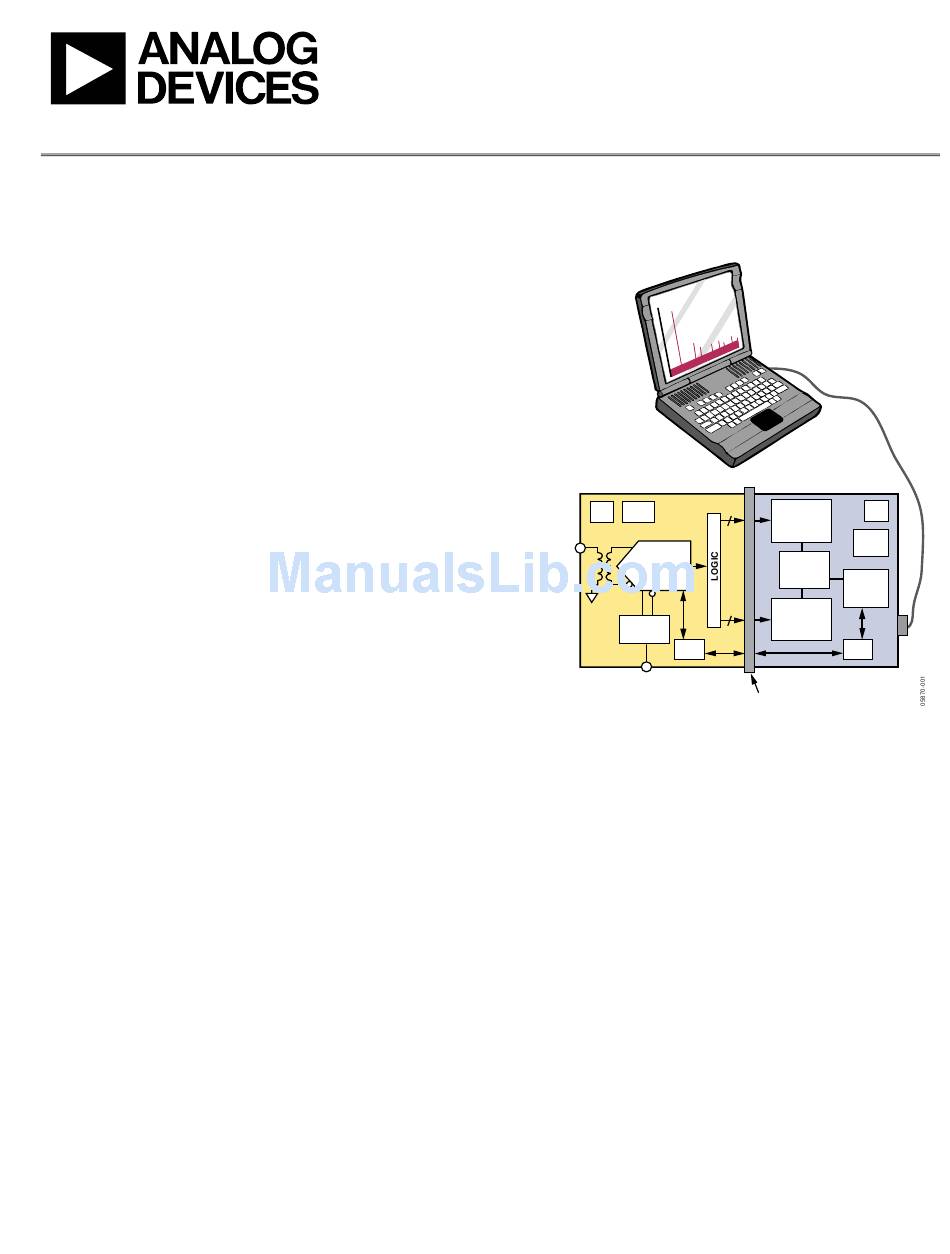

FUNCTIONAL BLOCK DIAGRAM

SINGLE OR DUAL
HIGH-SPEED ADC
EVALUATION BOARD
PS
FILTERED
ANALOG
INPUT

PRODUCT HIGHLIGHTS

1. Easy to Set Up. Connect the included power supply and
signal sources to the two evaluation boards. Then connect
to the PC and instantly evaluate the performance.
2. ADIsimADC™. ADC Analyzer supports virtual ADC
evaluation using Analog Devices proprietary behavioral
modeling technology. This allows rapid comparison between
multiple ADCs, with or without hardware evaluation boards.
For more information, see the AN-737 at www.analog.com.
3. USB Port Connection to PC. The PC interface is a USB 2.0
(1.1-compatible) connection. A USB cable is provided in the kit.
4. FIFO of 32 kB. The FIFO stores data from the ADC for processing.
A pin-compatible FIFO family is used for easy upgrading.
5. Up to 133 MSPS Encode Rate on Each Channel. Single-channel
ADCs with encode rates of up to 133 MSPS can be used with the
FIFO board. Multichannel and demultiplexed output ADCs can
also be used with the FIFO board with clock rates up to 266 MSPS.
6. Supports ADC with Serial Port Interface (SPI). Some ADCs
include a feature set that can be changed via the SPI. The FIFO
supports these features through the existing USB connection
to the computer without requiring additional cabling.
Rev. B | Page 1 of 24
STANDARD
USB 2.0
HSC-ADC-EVALB-DCZ
CHB FIFO,
REG
n
32k,
133MHz
TIMING
ADC
CIRCUIT
CHA FIFO,
n
32k,
CLOCK
133MHz
CIRCUIT
SPI
CLOCK INPUT
120-PIN CONNECTOR
Figure 1.
UG-173
PS
+3.0V
REG
USB
CTLR
SPI
