iMEMS ADXL346 Inertial Sensor Evaluation System
FEATURES
Ultralow power
ADXL346
accelerometer
Inertial sensor evaluation board
Inertial sensor-specific satellite for evaluation
Standard USB cable for power and communications
PC-based graphical user interface (GUI)
Separates DUT from controller for accurate environmental
testing
GENERAL DESCRIPTION
The iMEMS® ADXL346 inertial sensor evaluation system
is an easy-to-use evaluation tool targeting bench or desktop
characterization of Analog Devices, Inc., inertial sensor
products. The system consists of the inertial sensor evaluation
board (ISEB), or main board, and a satellite board for any
Analog Devices inertial sensor product. The ISEB connects
directly to a PC via its USB, where the USB connection provides
both power and communications to the board. The ISEB then
connects to the satellite board through a ribbon cable. This
cable allows the satellite to be easily manipulated for testing or
for being separately placed into an environmental chamber for
temperature or humidity testing. Separating the boards
mitigates corruption of data due to the temperature and
humidity effects of other components.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluation Board User Guide

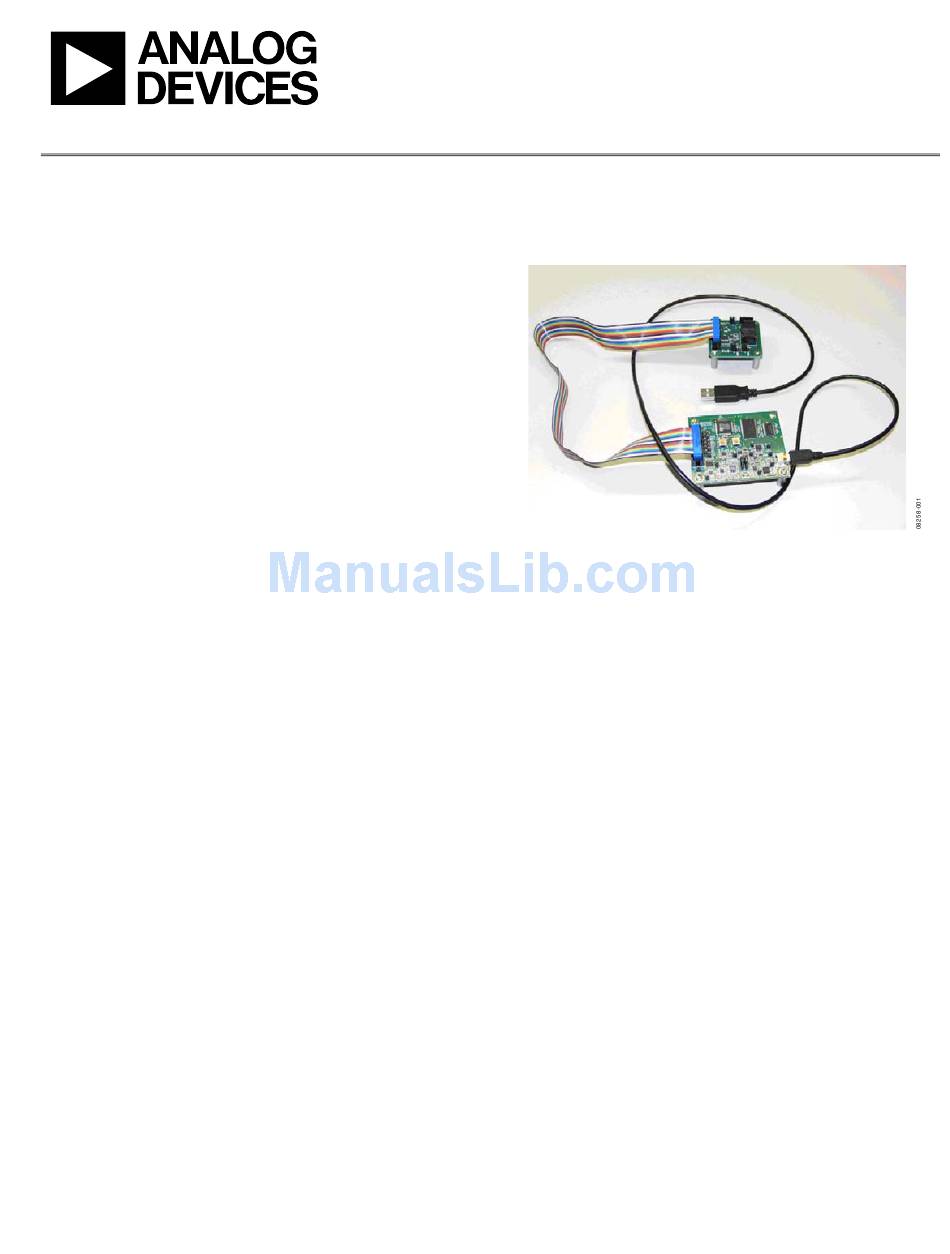

Figure 1. Inertial Sensor Evaluation System
The ISEB is a universal main board and is intended to be used
with various satellites of Analog Devices inertial sensors,
including analog and digital accelerometers, as well as gyroscopes.
The different products are evaluated by means of separate GUIs
that are customized for performance and characterization
measurements relevant to the inertial sensor being evaluated.
The EVAL-ADXL346Z-M system contains the ISEB and the
EVAL-ADXL346Z-S satellite. Also included is a USB A to Mini-
B cable to connect the ISEB to a PC and an 18-inch, 20-pin
ribbon cable to connect the ISEB to the satellite. A CD is also
included with the necessary drivers and executables to use the
system and to quickly begin evaluating the ADXL346.
Rev. 0 | Page 1 of 12
UG-012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices UG-012
Summary of Contents for Analog Devices UG-012
-
Page 1: Features
The iMEMS® ADXL346 inertial sensor evaluation system is an easy-to-use evaluation tool targeting bench or desktop with various satellites of Analog Devices inertial sensors, including analog and digital accelerometers, as well as gyroscopes. characterization of Analog Devices, Inc., inertial sensor products. -
Page 2: Table Of Contents
UG-012 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Inertial Sensor Evaluation System Graphical User Interface ..6 General Description ................. 1 Configuration Tab .................6 Revision History ................2 Real-Time Measurement Tab ............7 ... -
Page 3: Inertial Sensor Evaluation System Setup
Evaluation Board User Guide UG-012 INERTIAL SENSOR EVALUATION SYSTEM SETUP SOFTWARE CONFIGURATION Software configuration of the inertial sensor evaluation system involves installation of USB drivers for the ISEB and National Instruments LabVIEW® Run-Time and NI-VISA™ Run-Time files. These are available in the /Drivers/ folder on the packaged CD. -
Page 4: Hardware Configuration
UG-012 Evaluation Board User Guide HARDWARE CONFIGURATION Place the ADXL346 ultralow power accelerometer into the socket on the satellite board. To configure the hardware, follow these steps: The Socket Pin 1 Indicator is located inside the socket close Plug the USB A to Mini-B cable into the PC, if the cable is to the hinge, as shown in Figure 6. -
Page 5: Updating/Repairing The Iseb Firmware
EVAL- ADXL346Z-M system (Version 1.3). In addition, as new firmware is made available, it can be downloaded from the Analog Devices website (www.analog.com). To flash the ISEB microcontroller, follow these steps. -
Page 6: Inertial Sensor Evaluation System Graphical User Interface
UG-012 Evaluation Board User Guide INERTIAL SENSOR EVALUATION SYSTEM GRAPHICAL USER INTERFACE CONFIGURATION TAB When the system is set up and configured, press SW2, which is shown in Figure 9, to reset the ISEB and have it detect the currently connected satellite. This must be done when the satellite connected to the ISEB is replaced by a satellite of a different part only;... -
Page 7: Real-Time Measurement Tab
Evaluation Board User Guide UG-012 REAL-TIME MEASUREMENT TAB The ADXL346 provides three offset registers that are used for calibration and offset adjustment. On the Real-Time The Real-Time Measurement tab configures the inertial sensor Measurement tab, these registers are easily accessible for evaluation system and the ADXL346 for real-time acceleration programming offset values. -
Page 8: Interrupt Configuration Tab
UG-012 Evaluation Board User Guide INTERRUPT CONFIGURATION TAB The indicators for ACT_INACT_CTL and TAP_AXIS are used to select the axes to include in activity, inactivity, and tap events. The Interrupt Configuration tab is used to demonstrate the For more details, refer to the ADXL346 data sheet. Clicking an built-in functions of the ADXL346. -
Page 9: Power Consumption Tab
Evaluation Board User Guide UG-012 POWER CONSUMPTION TAB Additionally, the Micro In Calculation indicator lights up, signifying that a controller or microprocessor is actively pulling The Power Consumption tab shows the advantages of using the data from the part or processing it. In addition to more power... -
Page 10: Temperature Tab
UG-012 Evaluation Board User Guide ADXL346 Evaluation GUI TEMPERATURE TAB The Temperature tab is used to examine the performance of the ADXL346 over temperature. By plotting the acceleration vs. temperature while the ADXL346 is not experiencing dynamic acceleration, the offset temperature coefficient can be determined by taking the slope of the best-fit line to the acceleration vs. -
Page 11: Header Pinout
Evaluation Board User Guide UG-012 HEADER PINOUT 3.3V SCL1 SDA1 MOSI MISO SCL1 SDA1 MOSI MISO AGND Figure 16. ISEB 20-Pin Header Pinout Rev. 0 | Page 11 of 12... - Page 12 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
