2.2 Panel and DIN Rail Mounting

RS2000 series products can be ordered as a Panel/DIN mount chassis. Both
options involve the use of the panel/DIN adapters to be mounted on each side of
the chassis enclosure. The adapter allows for the chassis to be mounted on the
standard 1" DIN rail using the grooves in the adapter, secured using the included
Philips screw. See Figure 13 for a PANEL/DIN mount diagram.

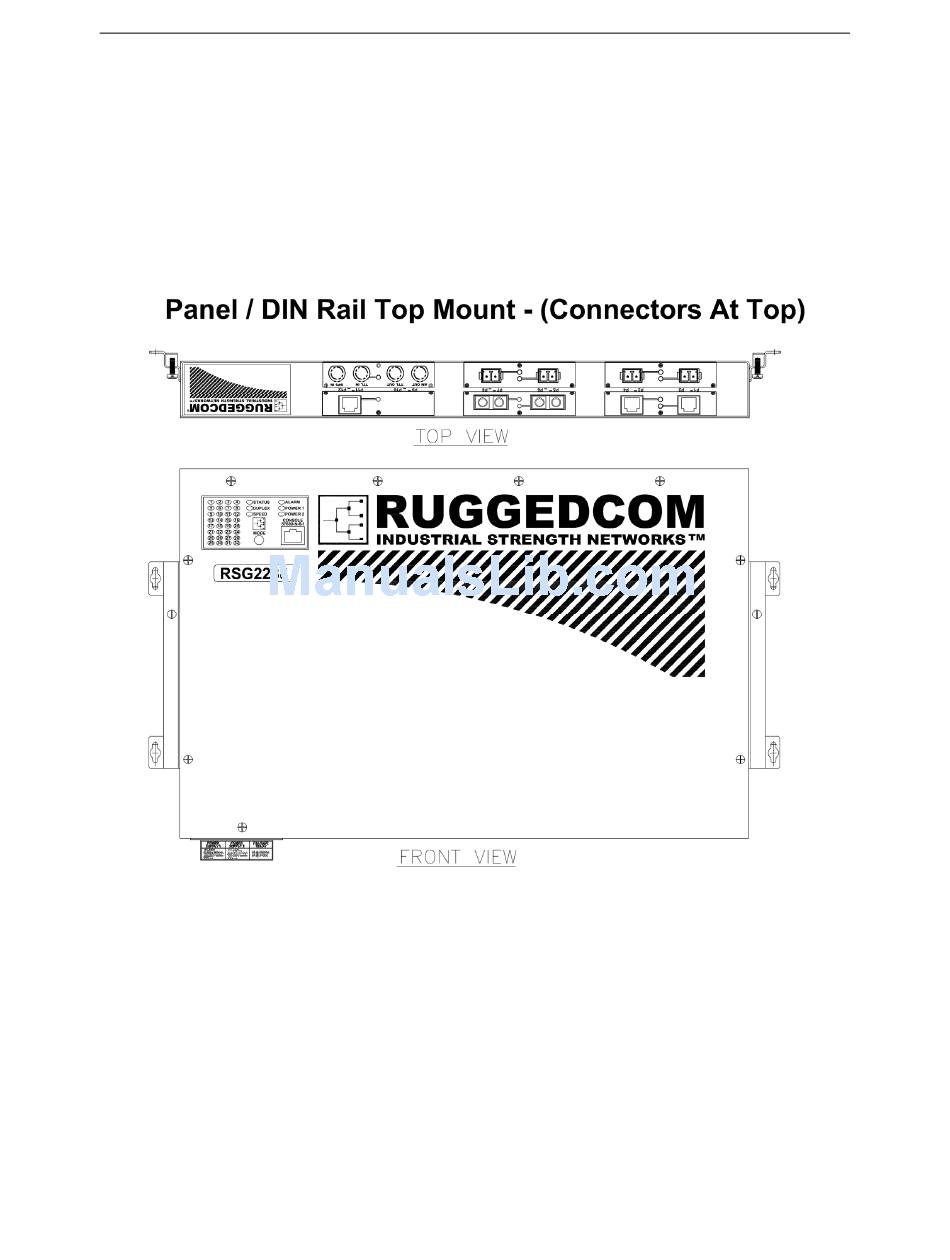

Figure 13: RSG2200 PANEL/DIN RAIL mounting diagram

®
