1.3 Mounting Flexibility

The RS2000 series of products have been designed with maximum mounting

and display flexibility. Customers can order an RS2000 series switch that can be

mounted in a standard 19" rack, 1" DIN Rail, or directly onto a panel. For rack

mount installations, the RS2000 series can be ordered with connectors on the

front panel or on the rear of the chassis. Placing the connectors on the rear

allows all data and power cabling to be installed and connected at the rear of the

rack. See Figure 1 for rack-mount orientation examples.

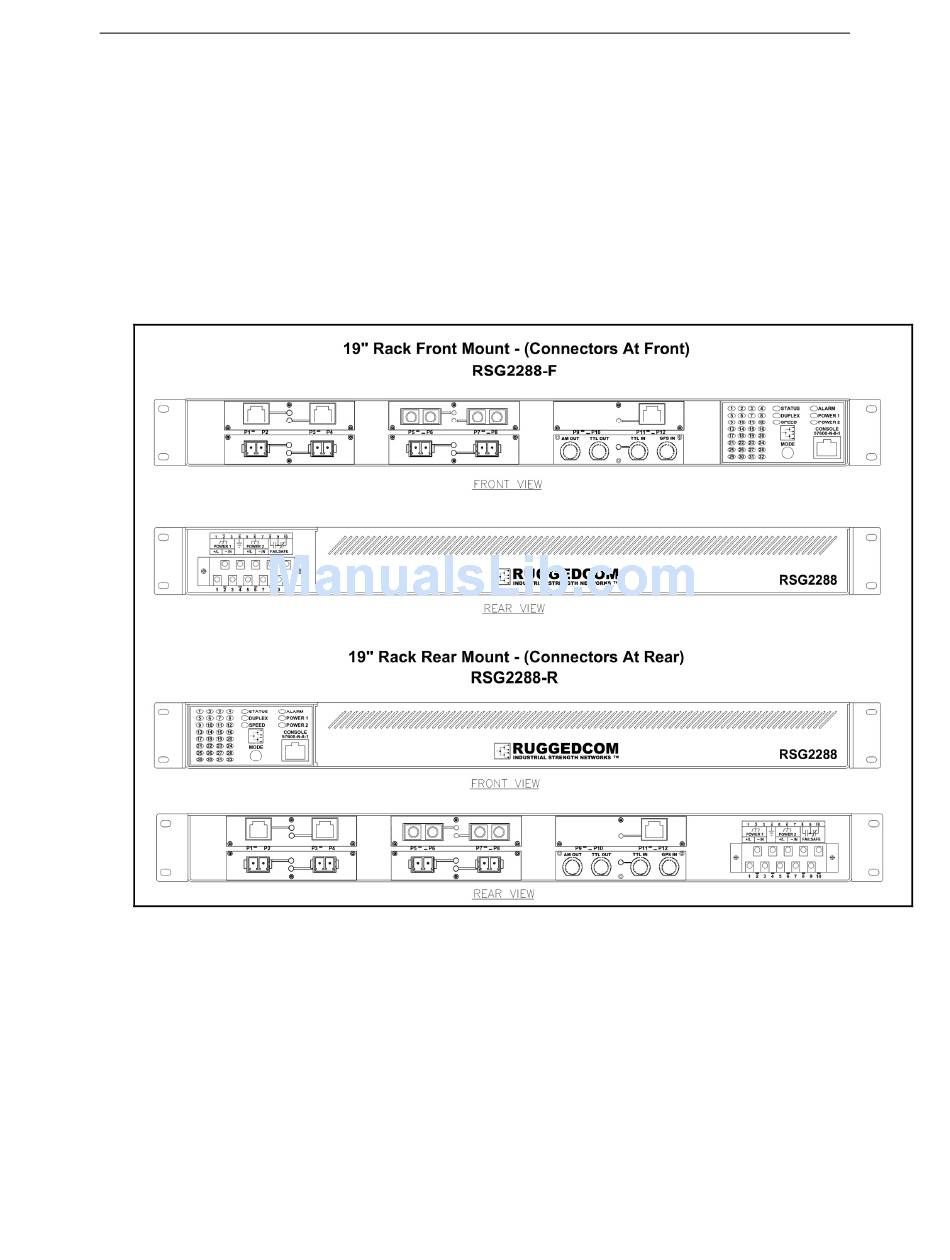

Figure 1: RSG2288 Rack mount chassis orientation options – Front and rear mount.

RuggedCom

RuggedSwitch

RSG2288 Installation Guide rev106
