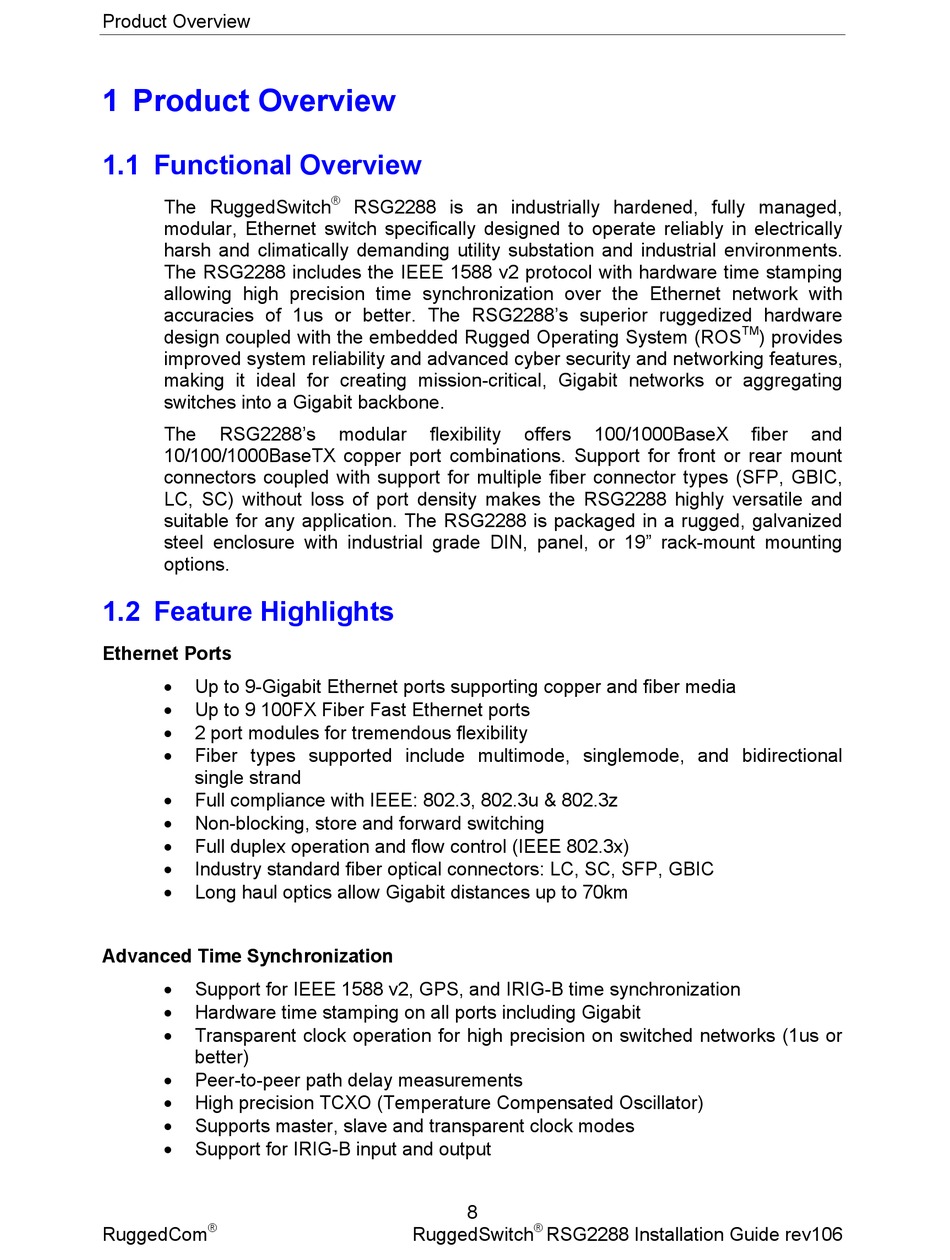

Product Overview

1 Product Overview

1.1 Functional Overview

The RuggedSwitch
modular, Ethernet switch specifically designed to operate reliably in electrically
harsh and climatically demanding utility substation and industrial environments.
The RSG2288 includes the IEEE 1588 v2 protocol with hardware time stamping
allowing high precision time synchronization over the Ethernet network with
accuracies of 1us or better. The RSG2288's superior ruggedized hardware
design coupled with the embedded Rugged Operating System (ROS
improved system reliability and advanced cyber security and networking features,
making it ideal for creating mission-critical, Gigabit networks or aggregating
switches into a Gigabit backbone.
The RSG2288's
10/100/1000BaseTX copper port combinations. Support for front or rear mount
connectors coupled with support for multiple fiber connector types (SFP, GBIC,
LC, SC) without loss of port density makes the RSG2288 highly versatile and
suitable for any application. The RSG2288 is packaged in a rugged, galvanized
steel enclosure with industrial grade DIN, panel, or 19" rack-mount mounting
options.

1.2 Feature Highlights

Ethernet Ports

Up to 9-Gigabit Ethernet ports supporting copper and fiber media

Up to 9 100FX Fiber Fast Ethernet ports

2 port modules for tremendous flexibility

Fiber types supported include multimode, singlemode, and bidirectional
single strand

Full compliance with IEEE: 802.3, 802.3u & 802.3z

Non-blocking, store and forward switching

Full duplex operation and flow control (IEEE 802.3x)

Industry standard fiber optical connectors: LC, SC, SFP, GBIC

Long haul optics allow Gigabit distances up to 70km
Advanced Time Synchronization

Support for IEEE 1588 v2, GPS, and IRIG-B time synchronization

Hardware time stamping on all ports including Gigabit

Transparent clock operation for high precision on switched networks (1us or
better)

Peer-to-peer path delay measurements

High precision TCXO (Temperature Compensated Oscillator)

Supports master, slave and transparent clock modes

Support for IRIG-B input and output
®
