1.5 Display Panel Description

RuggedCom RS2000 series products are equipped with a versatile display panel,
shown in Figure 10, which is designed to provide quick status information for
each port, as well as the entire device to allow for simple diagnostics and
troubleshooting. It features:

RS232 console port for 'out of band' console access and configuration

Power supply and Alarm status indicators

Convenient port status indicators conveying Link/Activity, Duplex, or Speed
via the Mode push-button (toggles between the three display modes)

System reset via the Mode push-button (if held for 5 seconds)

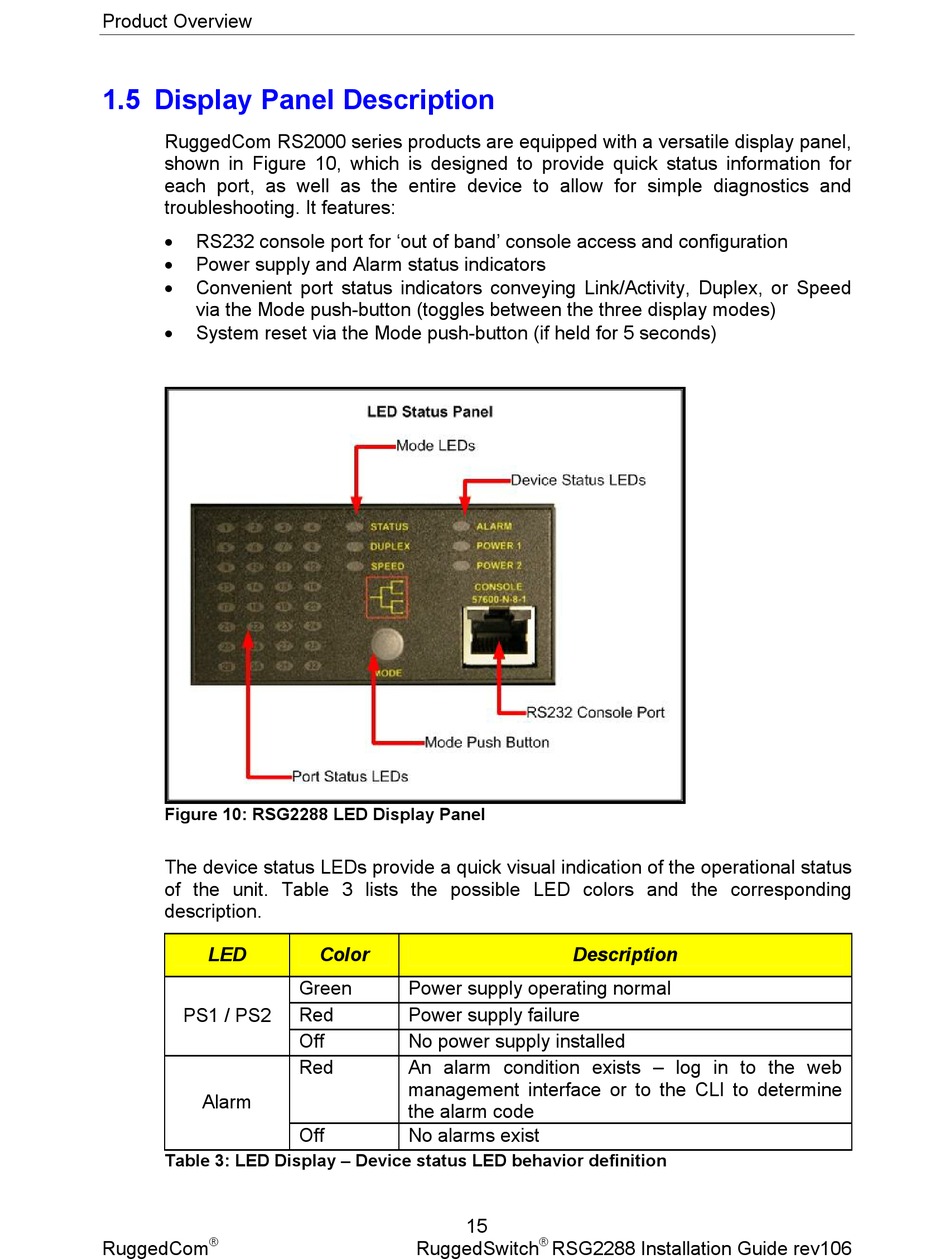

Figure 10: RSG2288 LED Display Panel

The device status LEDs provide a quick visual indication of the operational status
of the unit. Table 3 lists the possible LED colors and the corresponding
description.
LED
PS1 / PS2
Alarm
Table 3: LED Display – Device status LED behavior definition
®
RuggedCom
Color
Green Power supply operating normal
Red Power supply failure
Off No power supply installed
Red An alarm condition exists – log in to the web
management interface or to the CLI to determine
the alarm code
Off No alarms exist
15
RuggedSwitch
Description
®
