X8DTN+-F/X8DTN+-F-LR User's Manual
3-3

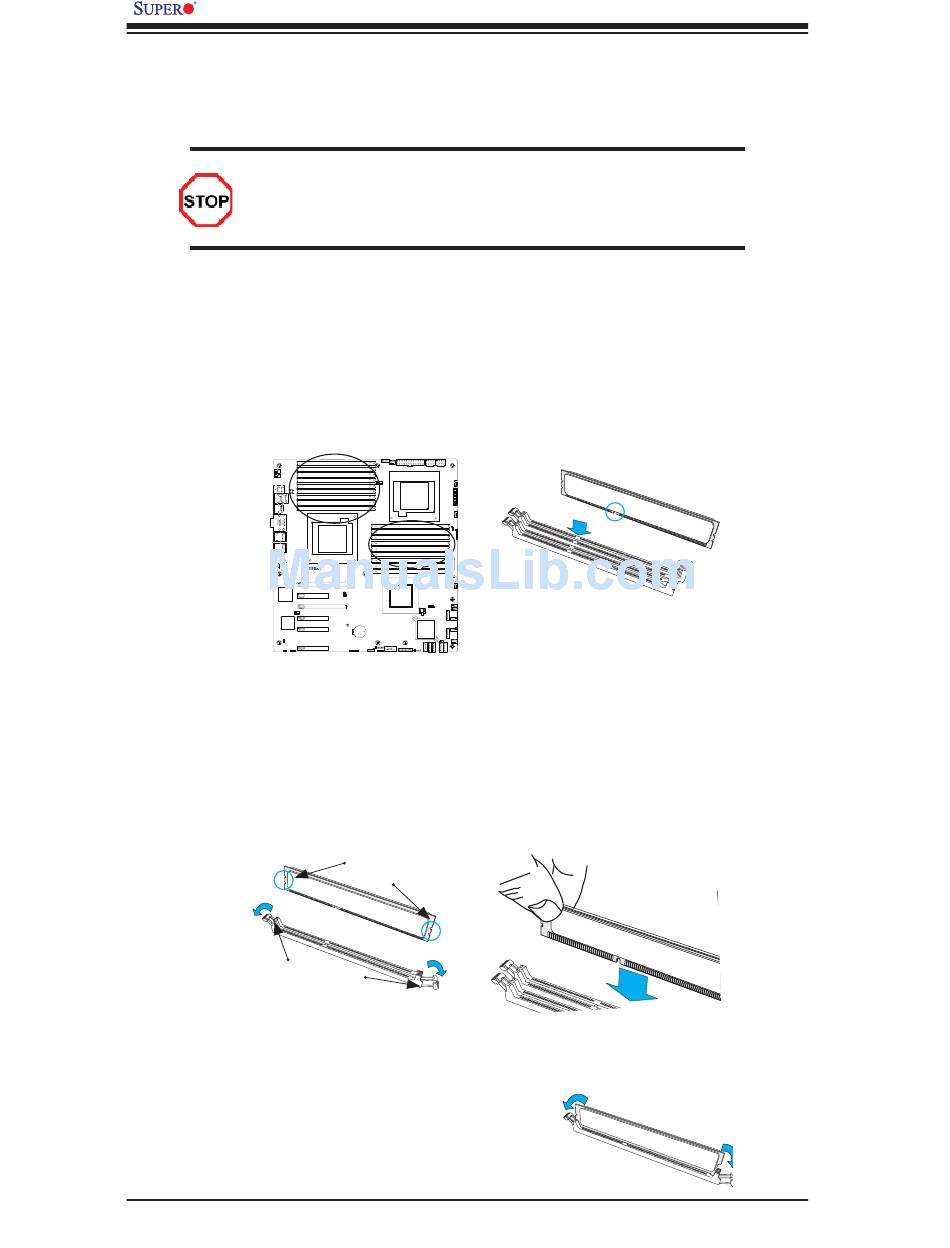

Installing and Removing the Memory Modules

Note: Check the Supermicro website for recommended memory modules.
Exercise extreme care when installing or removing DIMM
Installing & Removing DIMMs
1. Insert the desired number of DIMMs into the memory slots, starting with P1-
DIMM #1A. (For best performance, please use the memory modules of the
same type and same speed in the same bank.)
2. Position the DIMM module's bottom key, so it aligns with the receptive point
on the slot.
3. Push the Lock/Release tabs to their Release positions. Make sure that the
side notches of a DIMM module align with the Lock/Release tabs of the slot
when it is pressed in.
4. Insert the DIMM module vertically and press it down until the module snaps
into place.
5. Press the Lock/Release tabs to secure the DIMM module.
Release
Lock/Release Tabs

Removing Memory Modules

1. Reverse the steps above to remove the
DIMM modules from the motherboard.
CAUTION
modules to prevent any possible damage.
X8DTN+-F
Rev. 2.00
Notches
Release
3-8
Press Down
Release
Release
