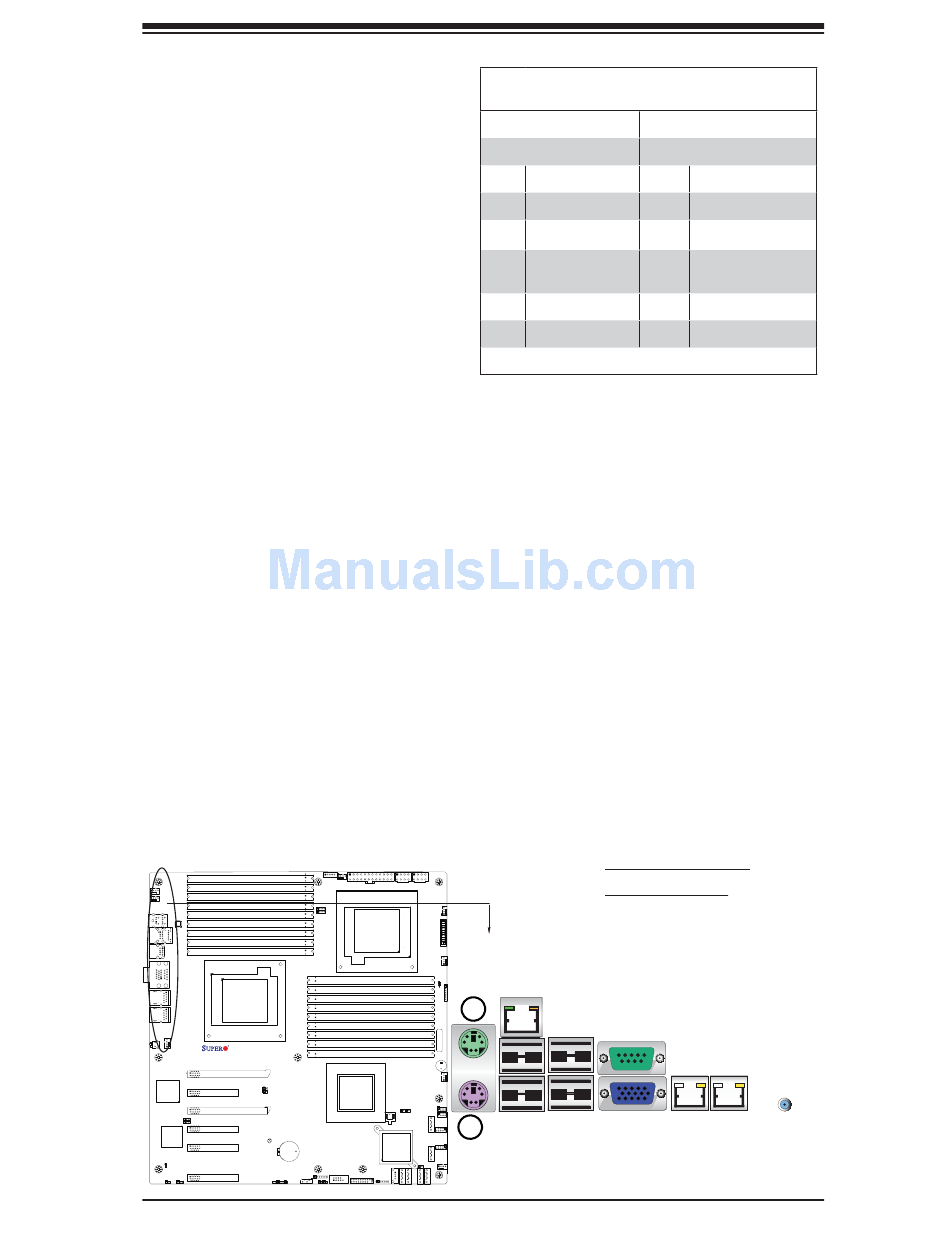

ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and PS/2
mouse are located next to the Back
Panel USB Ports 0~1 on the moth-
erboard. See the table at right for pin
defi nitions.
X8DTN+-F
Rev. 2.00
PS/2 Keyboard/Mouse Pin
Defi nitions
PS2 Keyboard
Pin#
Defi nition
1
KB Data
2
No Connection
3
Ground
4
Mouse/KB VCC
(+5V)
5
KB Clock
6
No Connection
VCC: with 1.5A PTC (current limit)
1. Keyboard (Purple)
2. Mouse (Green)
2
1
3-17
Chapter 3: Installation
PS2 Mouse
Pin#
Defi nition
1
Mouse Data
2
No Connection
3
Ground
4
Mouse/KB VCC
(+5V)
5
Mouse Clock
6
No Connection
