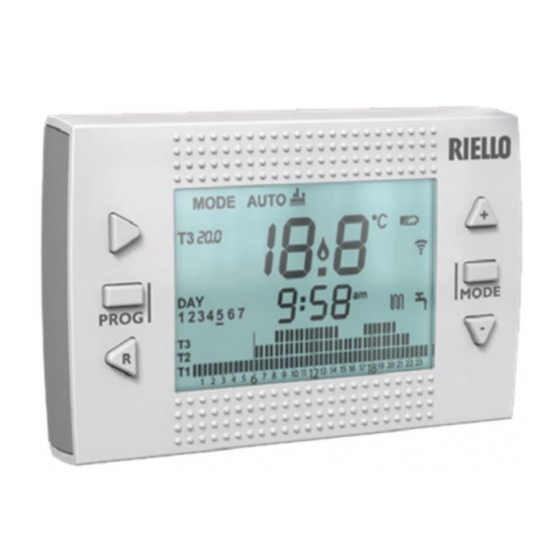

- Page 1 RiCloud Control System User Manual Wifi Box (20142445) Thermostat (20142444) Boiler RF Receiver (20142446)
-
Page 2: Table Of Contents
General notices ..............50 What is the RiCLOUD for? ............51 Modes of use .................52 Glossary of technical terms .............52 RiCLOUD control Class Declaration, according to the ErP Directive .. 54 INSTALLATION ..............56 Contents of the package ............56 Practical installation diagramspage ......... 58 Technical Data ............... -
Page 3: General Information
RiCLOUD should be installed in the most accessible room for you as regards controlling the room temperature (usually the living room). As per the standards, RiCLOUD should be positioned 1.5 m from the floor to make sure that you can easily read the display. -
Page 4: What Is The Ricloud For
(for example, on a terrace or balcony or in an outdoor space); RiCLOUD, on the other hand, is usually installed in the largest room in the house, where it can be easily checked and adjusted. -
Page 5: Modes Of Use
Domestic hot water: the water heated by the boiler which is dispensed from the domestic taps. Fault code: this code shows on the display to flag any boiler or RiCLOUD faults. Original set-up: this is the control panel configuration after turning on the device for the first time or after a reset. - Page 6 ON/OFF connection (boiler room thermostat): this is the simple communication method between the RiCLOUD and the boiler (or any other unit capable of receiving this command), where the relay in RiCLOUD (or on the WiFi Box/ receiver) sends an on/off request via the room thermostat (TA) contact on the boiler.
-
Page 7: Ricloud Control Class Declaration, According To The Erp Directive
RiCLOUD ON/OFF contact always maintains the same technical characteristics (RiCLOUD relay, WiFi Box relay, boiler RF receiver relay) wherever it is positioned and these must be respected when connecting the relay and the components it controls via cable. NOTE: Never exceed the maximum electrical loads (see page 211). - Page 8 RiCLOUD configuration characteristics contribution Boiler with Connection via communication bus to variable delivery RiCLOUD. Delivery temperature to the temperature boiler calculated on the basis of at least VIII = 5% (controlled by 3 distinct room temperatures. At least 3 communication...
-
Page 9: Installation
INSTALLATION Contents of the package The WiFi RiCLOUD package contains the following components: Component Description RiCLOUD = boiler remote control with room programmable thermostat function (*) or room programmable thermostat (**). (*) where there is an active OTBus connection in one of... - Page 10 OTBus connector (only for boilers without one) for an OTBus connection between the WiFi Box and the boiler or the Boiler RF receiver (optional) and the boiler or RiCLOUD and the boiler. It can also be used to connect the external probe (optional).
-
Page 11: Practical Installation Diagramspage
− Do not install above sources of heat (B). − Avoid direct sunlight (C). − Position at the appropriate height (D). Fix RiCLOUD base to the wall or electrical using screws provided, use the optics level in the plastic wrapping to install RiCLOUD horizontally. - Page 12 ON/OFF RiCLOUD can be installed in one of the Wired in OTBus mode (OTBus contact following ways: on RiCLOUD base). Wireless Direct connection via two wires to the boiler equipped with the same No wiring is required. communication protocol. Please check the maximum open-...
- Page 13 211) which replicates RiCLOUD WiFi Box to the boiler. thermostat relays linked to it. It is ON if at least 1 of RiCLOUD relays is ON, and OFF if all of RiCLOUD relays are OFF .
- Page 14 Should the boiler not be equipped terminals. with an OTBus terminal, you can use an OTBus connector provided in the WiFi RiCLOUD package (only for boilers without one). Only one of RiCLOUD system components (RiCLOUD, WiFi Box or boiler RF receiver) must be connected to the boiler via cable via OTBus.
- Page 15 ON/OFF WiFi Box connection Connect the black wires of the USB cable to the boiler room thermostat terminal (it is recommended that you consult the boiler installer manual). In the case of RiCLOUD thermostats wired in ON/OFF mode, or zone valve microswitches,...
- Page 16 APP Download your smartphone or tablet; Resetting OTBus connection auto-configuration function RiCLOUD is configured to function in ON/OFF mode. Should it be connected to an OTBus communication (wired Create a user account; wireless/radio frequency), RiCLOUD auto-configures to the “Boiler remote control”...
- Page 17 − The green and red LEDs start operation is completed. flashing frequently. − Select the “Configure WiFi” NOTE field from the drop-down For further information, please see menu in the APP , insert your RiCLOUD APP manual. home modem password and press the “Connect” button.
-
Page 18: Commissioning
COMMISSIONING When month selected, corresponding number flashes and User interface the message Non is displayed. See page 188. Display See page 191. Setting the date and time From the HOME screen, press the SET/ PROGRAM button twice. When year selected, corresponding number flashes and the message YEA is displayed. -
Page 19: Setting The Heating/Cooling Mode
Setting the heating/ Press the UP or DOWN button to cooling mode select the desired mode. RiCLOUD is default set to heating IN=WINTER mode. Heating mode. In heating mode, RiCLOUD activates a request for heat when the room temperature below temperature. -
Page 20: Setting The Operating Mode
(instant boiler). If the parameter 24 CLOC is set to ON; RiCLOUD follows the time periods set in the user-programming menu for DHW, pre-heating the water in the storage tank (only for boilers with integrated tank). - Page 21 Winter/AUTOMATIC mode if at least one of the thermostats is in heating 3.5.5 WINTER/HOLIDAY mode mode. In HOLIDAY mode, RiCLOUD takes the T2 room setpoint temperature For installations with multiple (economy), ignoring the heating time RiCLOUD thermostats connected program, for the days set with the...
-
Page 22: Setting The Extra Functions
3.5.6 WINTER/PARTY mode In PARTY mode, RiCLOUD takes the T3 room setpoint temperature (comfort), ignoring the heating time program, until midnight of the current day, and then automatically switches back to AUTO mode In case of an OTBus connection between the WiFi Box and the boiler (including other types of connection 3.6.2... -
Page 23: Setting The Heating/Cooling Time Program In Automatic Operating Mode
KEY-LOCK the boiler or the RF receiver and the function, press the FORWARD > and UP boiler or RiCLOUD and the boiler, if ^ buttons together for 5 seconds from provided for by the OTBus protocol). the HOME page (if enabled, LOC will be... - Page 24 Press the FORWARD or BACK button to select the day or period of the week to be changed. Friday Days Display Monday Saturday Friday Sunday Saturday Sunday Press the SET/PROGRAM button to confirm the day or period of the week to be changed.
-
Page 25: Setting The Dhw Time Program
Setting the DHW time program Monday This function is available only if the Sunday parameter 24 CLOC is set to ON. The time periods are default set to ON (domestic hot water function active). From the HOME screen, press the SET/ Monday PROGRAM button to open the user menu. -
Page 26: Setting The Heating/Cooling Room Setpoint Temperature
Press the SET/PROGRAM button to confirm the day or period of the week to be changed. Press the FORWARD or BACK button to select the time segment to be changed. Press the ESC/MODE button to activate Press the FORWARD or BACK button or deactivate the domestic hot water to select the temperature to be... - Page 27 HOME screen. The room setpoint temperatures can Press the SET/PROG button to save also be modified instantly if RiCLOUD is and return to the HOME screen, press in the operating mode corresponding ESC/MODE to save and return to the...
-
Page 28: Setting The Dhw Setpoint Temperature
3.10 Setting the DHW setpoint 3.9.4 Setting the temperature in PARTY mode temperature Press the UP or DOWN button From the HOME screen, press the SET/ on the HOME screen to set the desired PROGRAM button to open the user room setpoint temperature. -
Page 29: Displaying Operating Information
EXAMPLE: The heating delivery setpoint calculated by RiCLOUD is 30°C, the minimum boiler heating setpoint parameter is 40°C, the real heating delivery setpoint delivered by the boiler is 40°C. tFLO... - Page 30 Temperature read by the boiler heating return probe (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). Temperature read by the boiler DHW probe...
- Page 31 Flow meter rate in litres/minute, where a flow meter is available (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). HOUr Number...
-
Page 32: Technical Menu - Advanced Programming
3.12 Technical menu – Press the UP or DOWN button Advanced programming to insert the installer password (password = 18). From the HOME screen, press the SET/ PROGRAM button to open the user menu. Press the SET/PROG button to set. Press the FORWARD or BACK button... - Page 33 (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). The value can be set between 80°C and 40°C (for high temperature heating) or from 45°C...
- Page 34 (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). Default set to 10. The value can be set from 0°C to 20°C.
- Page 35 +-7°C. 14 FACt Restore factory settings. The value can be set from 0 to 1. By setting this parameter to 1, RiCLOUD values are restored to the default setting, excluding the date and time and the domestic hot water temperature.
- Page 36 WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). The last 9 alarms generated by the boiler and saved by RiCLOUD are shown.
- Page 37 (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol). Default set to OFF .
- Page 38 The value set for parameter 26 (tSFt) is subtracted from the heating delivery setpoint calculated by RiCLOUD (tSEt), only in AUTO operating mode, during the T2 (economy) or T1 (anti-freeze) time period.
-
Page 39: Linking Function
3.13 Linking function EXAMPLE OF LINKED RICLOUD RiCLOUD linking with the WiFi Box RiCLOUD and the WiFi Box in the WiFi RiCLOUD package are already linked. If installing an additional RiCLOUD, follow the procedure below. Ensure that RiCLOUD and the WiFi Box are connected to a power source and there are no alarms. - Page 40 Press and hold again for 5 seconds RiCLOUD until green LEDs momentarily switch off and then RiCLOUD programmable thermostat flash slowly (every 2 seconds). can be linked to a wireless receiver if you want to replicate the relay Ricevitore functionality on the thermostat in a...
- Page 41 5 seconds to display the following (alternating) information: Transmitter number (RiCLOUD) To complete the link, press the SET/ EXAMPLE OF LINKED RICLOUD PROGRAM button or wait for RiCLOUD to return to the HOME screen. This take minutes, after which RiCLOUD automatically returns to the HOME screen.
-
Page 42: Alarms And Operating Statuses
ALARMS AND OPERATING STATUSES LED notification lights for the WiFi Box and boiler RF receiver ** Status Green Relay = closed (only for ON/OFF connections) Relay = open (only for ON/OFF connections) OTBus connection = OK (for OTBus connection) Boiler alarm (only for OTBus connection) Network or RF error WPS mode active –... -
Page 43: Boiler And Ricloud Alarms
In case of a boiler alarm (available with OTBus connection between the WiFi Box and the boiler or the RF receiver and the boiler or RiCLOUD and the boiler, if provided for by the OTBus protocol), the alarm can be reset by... - Page 44 RiCLOUD room temperature sensor damaged. Cannot be repaired. − Check the distance between RiCLOUD and the WiFi Box (see page 211). − Remove and then reinsert the batteries. − Check that the WiFi Box is connected to a power source.
- Page 45 − Reset from the boiler. many boiler resets performed via remote control. To replace the batteries, remove RiCLOUD from its base. − Replace the batteries. − Check that the contacts are not rusty. − Replace RiCLOUD. − Contact the Authorised Service Centre.
- Page 46 Alarm Description Burner ignition/detection failure after numerous A01-A10 attempts A02-A20 Limit thermostat tripped Flue gas thermostat and/or safety thermostat and/or A03-A30 air pressure switch and/or fan fault A04-A40 Primary circuit pressure insufficient A06-A60 DHW NTC probe anomaly Alarm relating to heating NTC probe and/or delivery A07-A70 NTC probe and/or excessive differential between the delivery and return NTC probes...
