Robustel GoRugged M1000 XP Quick Guide
Robustel GoRugged M1000 XP Quick Guide

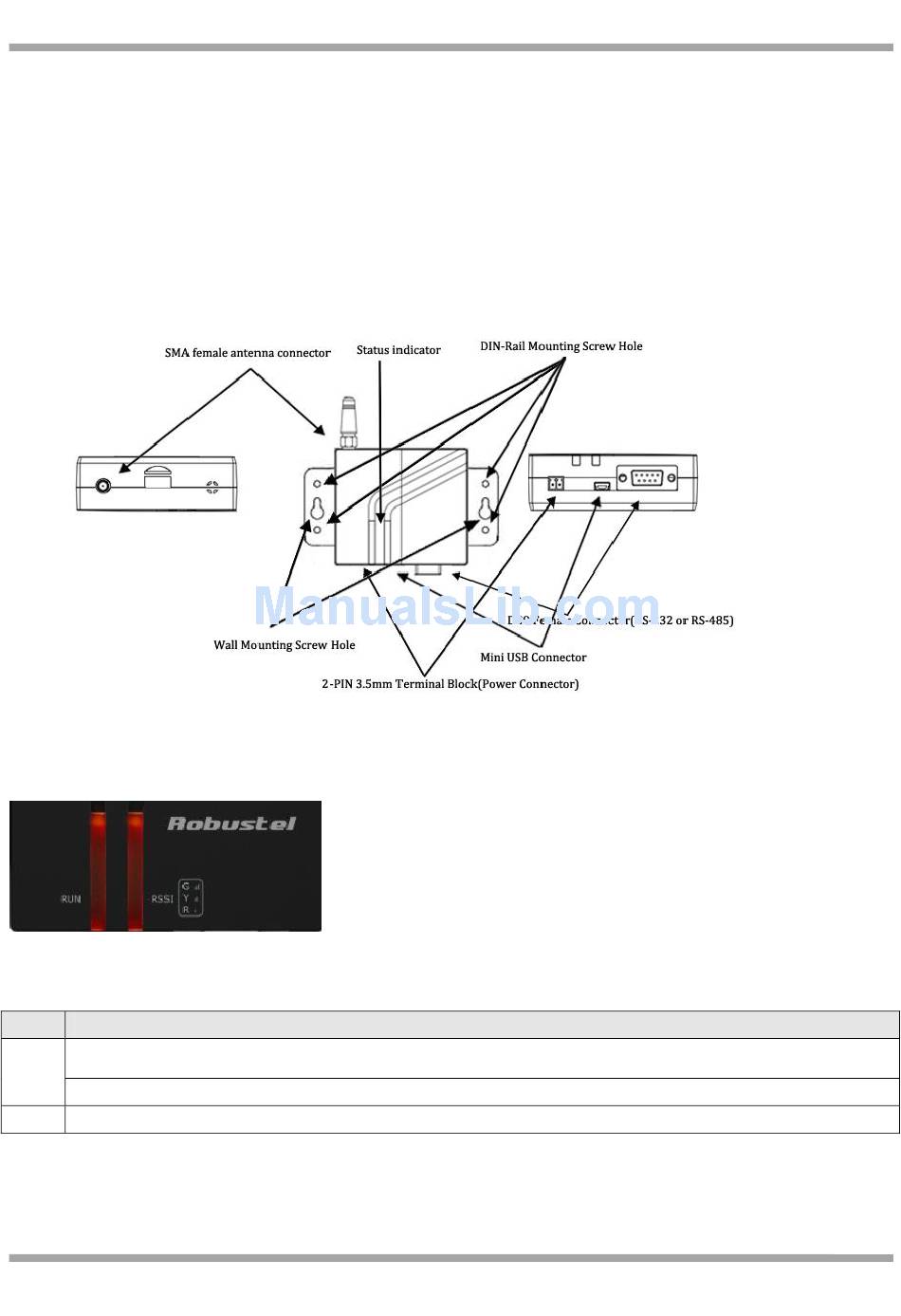

Chapter 1. Interface Introduction

1.1 Overview

1.2 LED Indicators

After inserting the SIM card into the modem and power on, the LED indicators' status should be as follow when work
normally:
Name Status
System is running normally but without any GSM/GPRS/UMTS connection: Green & Blinking every 1s
RUN
GPRS connection established: Yellow & Blinking every 1s
RSSI
Green or Yellow
：
Note
Please refer to Robustel GoRugged M1000 XP User Guide to get more details about the LED indicators.
RT_QG_M1000 XP_v.1.0.0
24.01.2014
1 / 5
