Robustel GoRugged M1000 MP Installation And Configuration Quick Manual

Industrial cellular modem 1 rs-232/rs-485 + 1 usb host
Hide thumbs Also See for GoRugged M1000 MP:

Advertisement

Quick Links

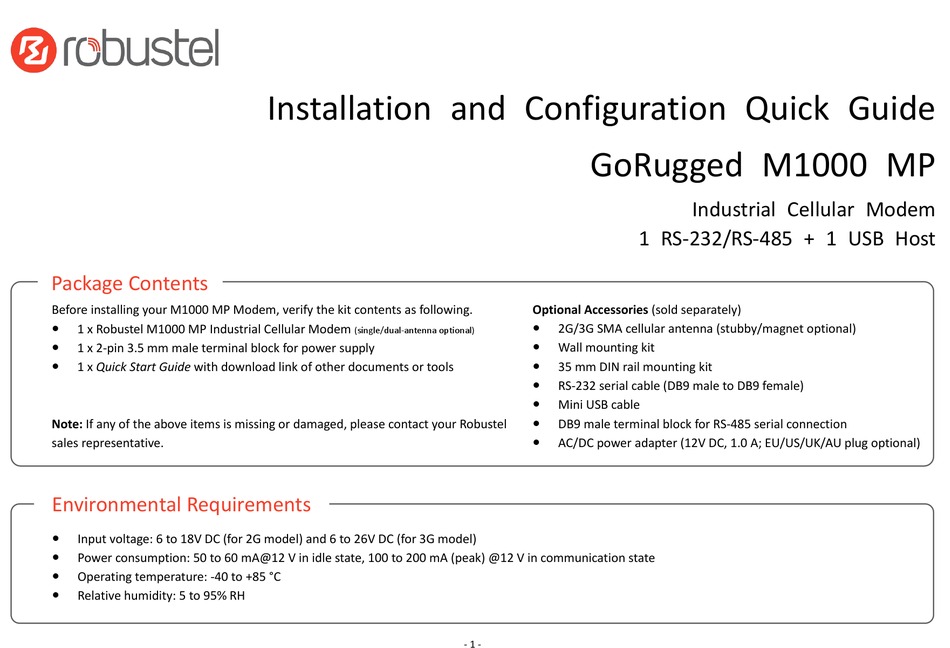

Package Contents

Before installing your M1000 MP Modem, verify the kit contents as following.
1 x Robustel M1000 MP Industrial Cellular Modem
1 x 2-pin 3.5 mm male terminal block for power supply
1 x Quick Start Guide with download link of other documents or tools
Note: If any of the above items is missing or damaged, please contact your Robustel
sales representative.

Environmental Requirements

Input voltage: 6 to 18V DC (for 2G model) and 6 to 26V DC (for 3G model)
Power consumption: 50 to 60 mA@12 V in idle state, 100 to 200 mA (peak) @12 V in communication state
Operating temperature: -40 to +85 °C
Relative humidity: 5 to 95% RH
Installation and Configuration Quick Guide
(single/dual-antenna optional)
GoRugged M1000 MP
1 RS-232/RS-485 + 1 USB Host
Optional Accessories (sold separately)
2G/3G SMA cellular antenna (stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
RS-232 serial cable (DB9 male to DB9 female)
Mini USB cable
DB9 male terminal block for RS-485 serial connection
AC/DC power adapter (12V DC, 1.0 A; EU/US/UK/AU plug optional)
- 1 -
Industrial Cellular Modem

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged M1000 MP and is the answer not in the manual?

Questions and answers

Summary of Contents for Robustel GoRugged M1000 MP

  • Page 1: Package Contents

    RS-232 serial cable (DB9 male to DB9 female)  Mini USB cable  Note: If any of the above items is missing or damaged, please contact your Robustel DB9 male terminal block for RS-485 serial connection  sales representative. AC/DC power adapter (12V DC, 1.0 A; EU/US/UK/AU plug optional) Environmental Requirements ...
  • Page 2: Hardware Introduction

    Hardware Introduction 1. Overview 3. PIN Assignment PIN Assignment for 2G Model RS-232 RS-485 Function Terminal Direction (2-wire) block M1000 MP  Device Data+ (A) 485+ M1000 MP  Device M1000 MP  Device M1000 MP  Device GND x 2 M1000 MP ...
  • Page 3: Led Indicators

    4. LED Indicators Name Color Status Description POWER Green On, solid Modem is powered on. Modem is powered off. STATUS Green On, solid The current network is connected. (for dual-antenna) Note: Only available for the 3G On, 0.5 sec blink module, and the indicator will never be (for single-antenna) lit if the current 3G module does not...
  • Page 4: Hardware Installation

    Hardware Installation 1. Insert or Remove SIM Card Do not touch the metal of the card surface in case information in the card will lose or be destroyed. Do not bend or scratch the card. Keep the card away from electricity and magnetism. Make sure the modem is powered off before inserting or removing the card.
  • Page 5: Mount The Modem

    Connect an USB cable to the mini USB connector at the bottom of the M1000 MP Modem, and connect the other end of the cable to an external controller or computer.  DIN rail mounting (measured in mm) 4. Mount the Modem The modem can be placed on a desktop or mounted to a wall or a 35 mm DIN rail.
  • Page 6: Power Supply

    5. Power Supply M1000 MP supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.
  • Page 7: Modem Operation

    Modem Operation You can use AT commands to operate and configure the M1000 MP Modem Choose “Serial” as the protocol. through the mini USB port or serial port. This chapter will mainly introduce AT commands examples about how to configure the M1000 MP Modem. 1.
  • Page 8: Using Short Message Service

    2. Using Short Message Service Cellular technology offers the benefit of using SMS (short message service) as an easy way to communicate over the mobile network. The following topics are covered in this chapter:  Sending a Short Message Type AT+CMGF=1 and press Enter. Type AT+CMGS=“<phone number>”...
  • Page 9 Note: The SMS sending command may a little different vary from module to module. For the specific command of different module, the corresponding AT document shall prevail, or contact our Technical Support. Guangzhou Robustel LTD Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel:...
