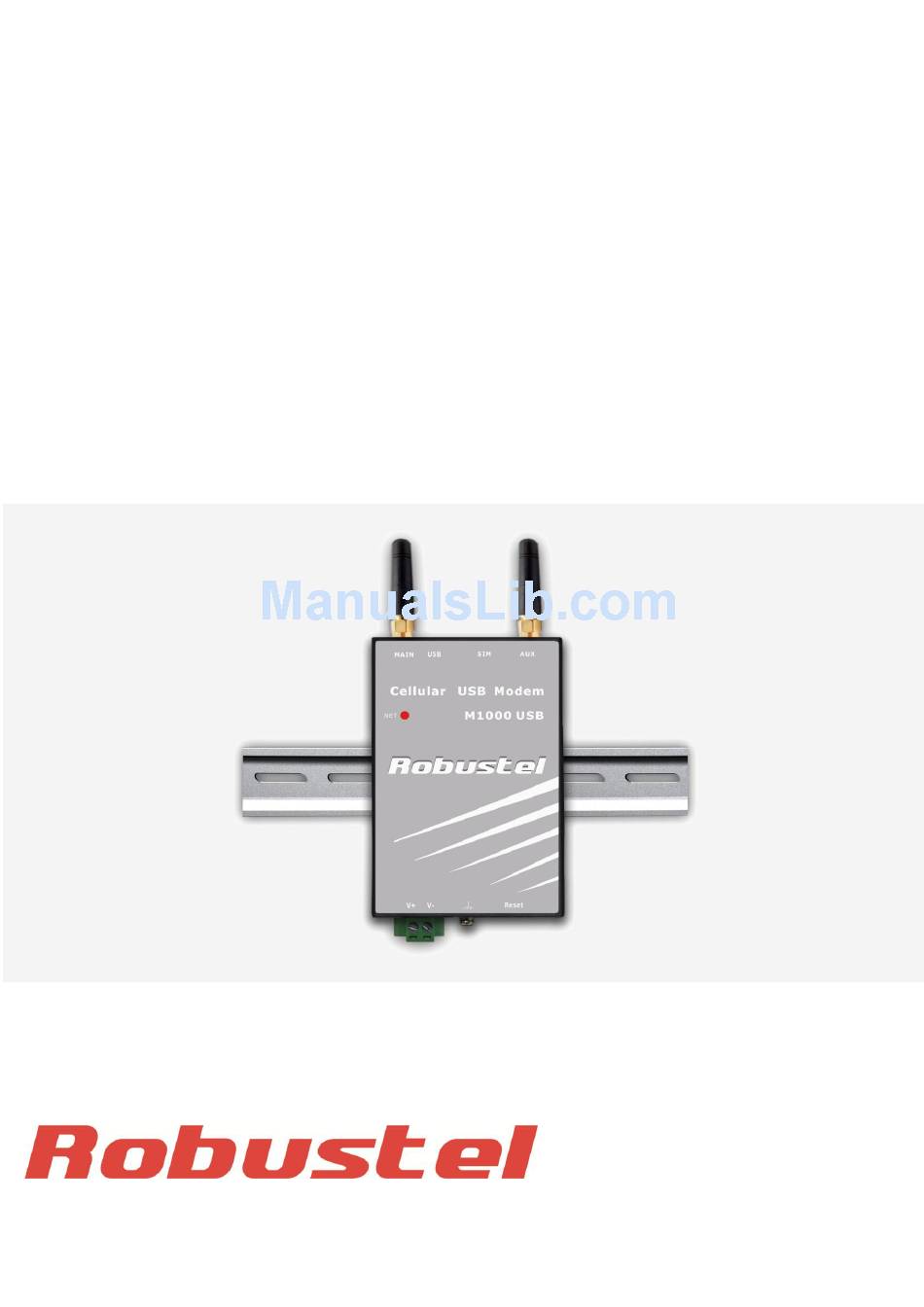

- Page 1 Robustel GoRugged M1000 USB Industrial Cellular USB Modem for 2G / 3G / 4G Networks User Guide Document Name: User Guide Date: 4/30/2012 Status: /Confidential DocID: RT_M1000 USB_v01.00 www.robustel.com...
- Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
- Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the modem, or for failure of the modem to transmit or receive such data.
- Page 4 Robustel GoRugged M1000 USB User Guide Do not drop, hit or shake the modem. Do not use the modem under extreme vibrating conditions. Do not pull the antenna or power supply cable. Attach/detach by holding the connector. Connect the modem only according to the instruction manual. Failure to do it will void the warranty.
- Page 5 Robustel GoRugged M1000 USB User Guide Regulatory and Type Approval Information Table 1: Directives Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and...
- Page 6 Robustel GoRugged M1000 USB User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Details 2012-4-30 1.00 First Release RT_M1000_USB_UG_v01.00 4.30.2012 5 / 24...
-
Page 7: Table Of Contents
Robustel GoRugged M1000 USB User Guide Contents Chapter 1. Product Concept ............................7 Overview ................................ 7 Packing List ..............................7 Features and Specifications ........................... 9 Dimensions ..............................10 Chapter 2. Installation ..............................11 Overview ..............................11 LED Indicators ............................... 11 Mounting the Modem .......................... -
Page 8: Chapter 1. Product Concept
Chapter 1. Product Concept 1.1 Overview The Robustel GoRugged M1000 USB is a rugged industrial cellular modem with USB interface offering state-of-the-art 2G (GPRS / EDGE) / 3G (HSPA / EV-DO) / 4G (LTE) connectivity for machine to machine (M2M) applications. - Page 9 Robustel GoRugged M1000 USB User Guide 2-pin pluggable terminal block with lock for power connector x1 USB cable (Type A Male to Type A Male) x1 CD with user guide and driver x1 Note: Please notify your sales representative if any of the above items are missing or damaged.
-
Page 10: Features And Specifications
Robustel GoRugged M1000 USB User Guide 1.3 Features and Specifications Control via AT commands Antenna diversity for improved fringe performance optional Comprehensive SDK and enabling drivers for Linux and Windows HSPA+/HSUPA/HSDPA/UMTS Air Interface EDGE/GPRS Cellular Interface EV-DO Please refer to “Selection and Ordering Data”... -
Page 11: Dimensions
Robustel GoRugged M1000 USB User Guide 1.4 Dimensions RT_M1000_USB_UG_v01.00 4.30.2012 10 / 24 Confidential... -
Page 12: Chapter 2. Installation
Robustel GoRugged M1000 USB User Guide Chapter 2. Installation 2.1 Overview 2.2 LED Indicators NET LED Function ME is in one of the following modes: - POWER DOWN mode - ALARM mode - CHARGE ONLY mode - NON-CYCLIC SLEEP mode... -
Page 13: Mounting The Modem
Robustel GoRugged M1000 USB User Guide 2.3 Mounting the Modem Use 2 pcs of M3 screw to mount the modem on the wall or mount it on the Din-Rail. 2.4 Installation the SIM Card Be sure to insert a SIM card before you use the modem. -
Page 14: Connect The External Antenna (Sma Type)
Robustel GoRugged M1000 USB User Guide 2.5 Connect the External Antenna (SMA Type) Connect this to an external antenna with SMA male connector. Make sure the antenna is for the correct frequency as your GSM operator with impedance of 50ohm, and also connector is secured tightly. -
Page 15: Grounding The Modem
Robustel GoRugged M1000 USB User Guide 2.7 Grounding the Modem Grounding Screw Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 16: Chapter 3. Usb Driver Installation
Robustel GoRugged M1000 USB User Guide Chapter 3. USB Driver installation 3.1 Install the Driver (For Cinterion EU3-E Module) 1. After insert the SIM card, connect the antenna, power on the modem, connect the modem to PC via USB cable, a popbox “Found New Hardware”... - Page 17 Robustel GoRugged M1000 USB User Guide 3. Choose Install from a list of specific location, clicks next. 4. Load the driver from the hard disk. RT_M1000_USB_UG_v01.00 4.30.2012 16 / 24 Confidential...
- Page 18 Robustel GoRugged M1000 USB User Guide 5. USB Driver install finished. 6. Go to My Computer->System Properties->Hardware ->Device Manager to check whether the EU3-USB Com Port installed correctly. RT_M1000_USB_UG_v01.00 4.30.2012 17 / 24 Confidential...
- Page 19 Robustel GoRugged M1000 USB User Guide Setting up the USB Modem Dial Up 1. In the Control Panel, open Network Connections, and then click Create a new connection. 2. When the New Connection Wizard window opens, select the Connect to Internet option, and then click Next.
- Page 20 Robustel GoRugged M1000 USB User Guide 3. Select the Set up my connection manually option, and then click Next. RT_M1000_USB_UG_v01.00 4.30.2012 19 / 24 Confidential...
- Page 21 Robustel GoRugged M1000 USB User Guide 4. Select the Connect using a dial-up modem option, and then click Next. 5. Type the name of your service provider in the text input box, and then click Next. RT_M1000_USB_UG_v01.00 4.30.2012 20 / 24...
- Page 22 Robustel GoRugged M1000 USB User Guide 6. Type correspond phone number in the Phone number text input box, and then click Next. 7. Type the User name and Password in the appropriate text boxes, and then click Next. RT_M1000_USB_UG_v01.00 4.30.2012...
- Page 23 Robustel GoRugged M1000 USB User Guide 8. Click Finish. 9. A shortcut of usb modem will show in desktop. 10. Click Dial to establish the connection. RT_M1000_USB_UG_v01.00 4.30.2012 22 / 24 Confidential...
-
Page 24: Chapter 4. Appendix
Robustel GoRugged M1000 USB User Guide Chapter 4. Appendix 4.1 Terms and Abbreviations Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Circuit Switched Data Clear to Send... - Page 25 Robustel GoRugged M1000 USB User Guide Protocol Data Unit Point-to-point Protocol Personal Identity Number Power Supply Unit Personal Unblocking Key R&TTE Radio and Telecommunication Terminal Equipment Radio Frequency Real Time Clock Request to Send Receive Direction Subscriber Identification Module Subminiature Version A RF Connector...
