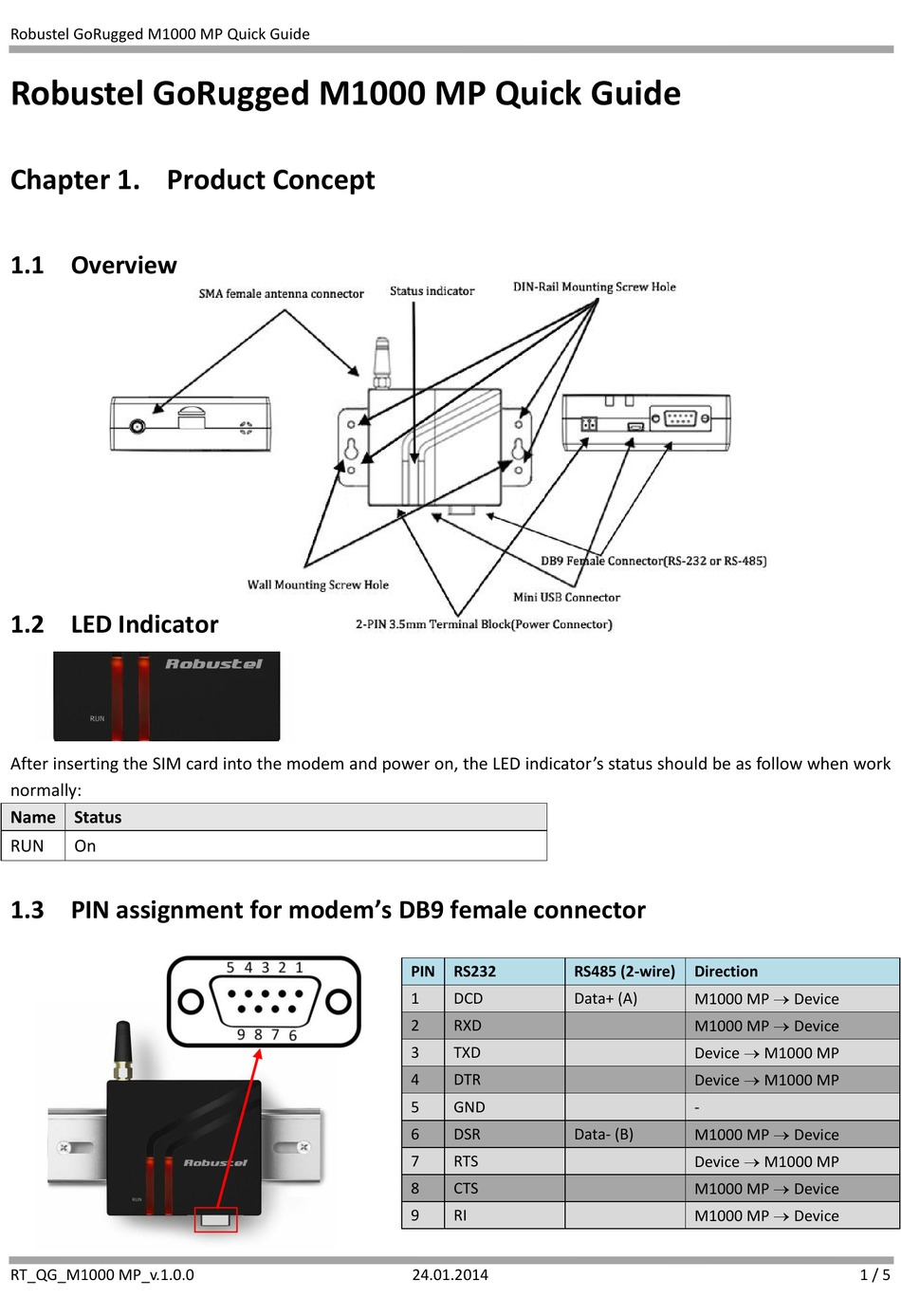

Robustel GoRugged M1000 MP Quick Guide
Robustel GoRugged M1000 MP Quick Guide
Chapter 1. Product Concept
1.1 Overview
1.2 LED Indicator
After inserting the SIM card into the modem and power on, the LED indicator's status should be as follow when work
normally:
Name Status
RUN
On
1.3 PIN assignment for modem's DB9 female connector
RT_QG_M1000 MP_v.1.0.0
PIN
RS232
RS485 (2-wire)
1
DCD
Data+ (A)
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
Data- (B)
7
RTS
8
CTS
9
RI
24.01.2014
Direction
M1000 MP Device
M1000 MP Device
Device M1000 MP
Device M1000 MP
-
M1000 MP Device
Device M1000 MP
M1000 MP Device
M1000 MP Device
