Robustel GoRugged M1000 UP Quick Guide
Robustel GoRugged M1000 UP Quick Guide

Chapter 1. Interface Introduction

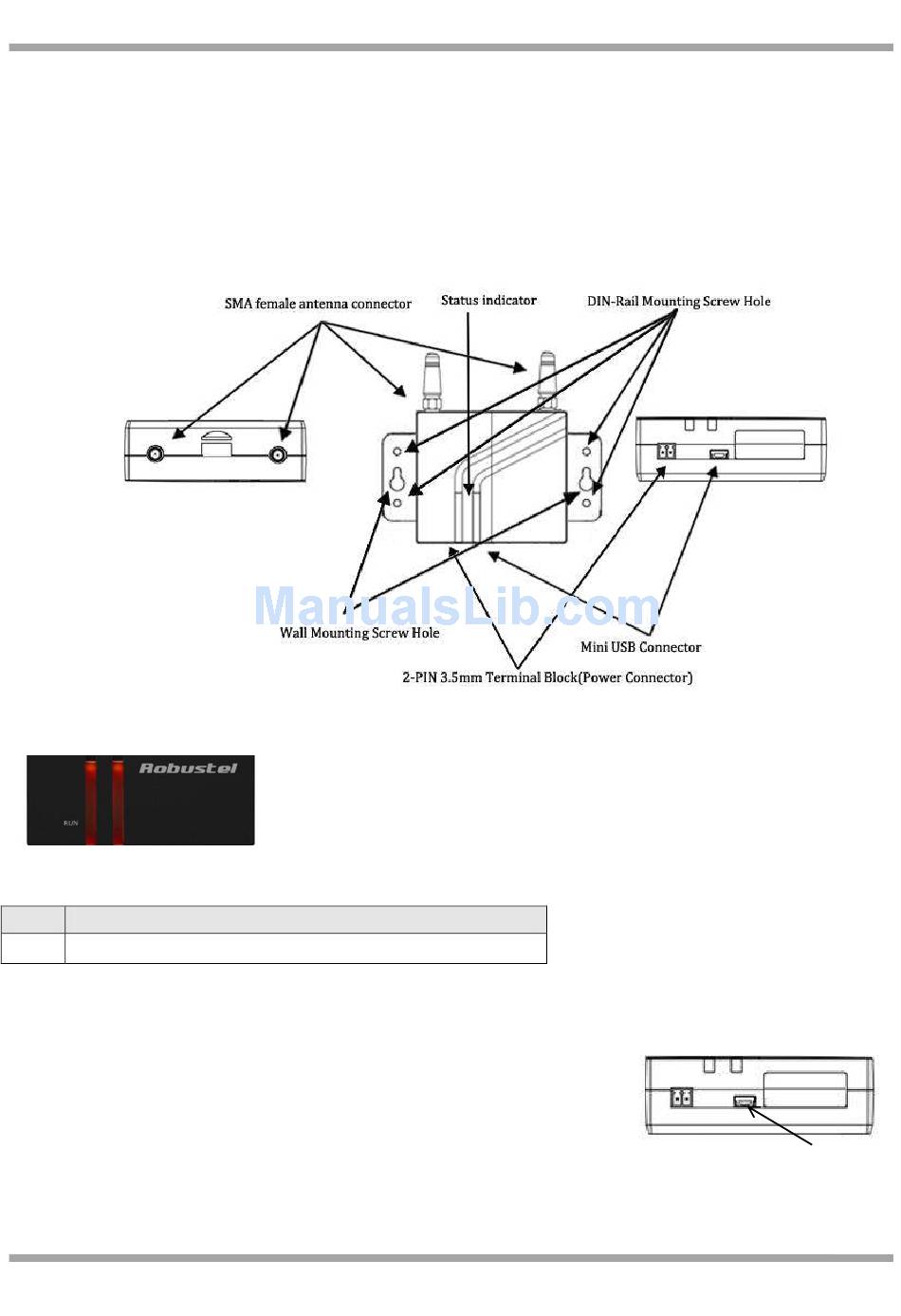

1.1 Overview

1.2 LED Indicator

After inserting the SIM card into the modem and power on, the LED indicator's status should be as follow when work
normally:
Name Status
RUN
On

1.3 USB interface

USB interface can be used for configuration, sending/receiving data and
power supply. When USB interface of M1000 UP is used for
sending/receiving data as well as power supply, current/voltage output of
USB interface which connects to M1000 UP's USB interface shall at least
reach to 1A/5V.
Note: Normally, current/voltage output of laptop's USB 2.0 interface is only
0.5A/5V. So when you use USB interface for sending/receiving data, you
should use power input interface for power supply (please check section 1.4).
RT_QG_M1000 UP_v.1.0.0
USB
25.01.2014
USB
1 / 7
