Robustel GoRugged M1000 Pro V2 Quick Guide
Robustel GoRugged M1000 Pro V2 Quick Guide
Chapter 1. Interface Introduction

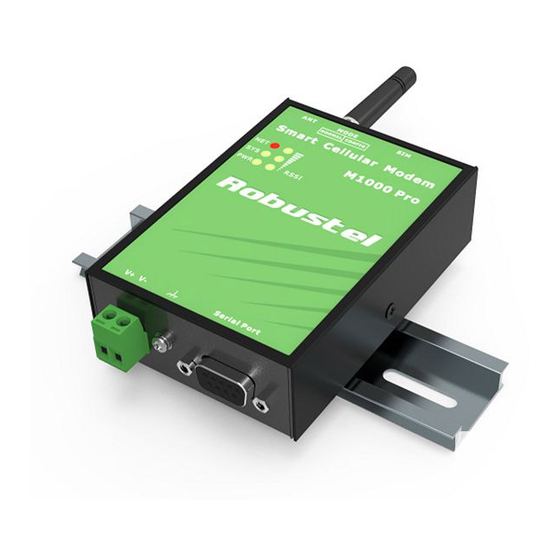

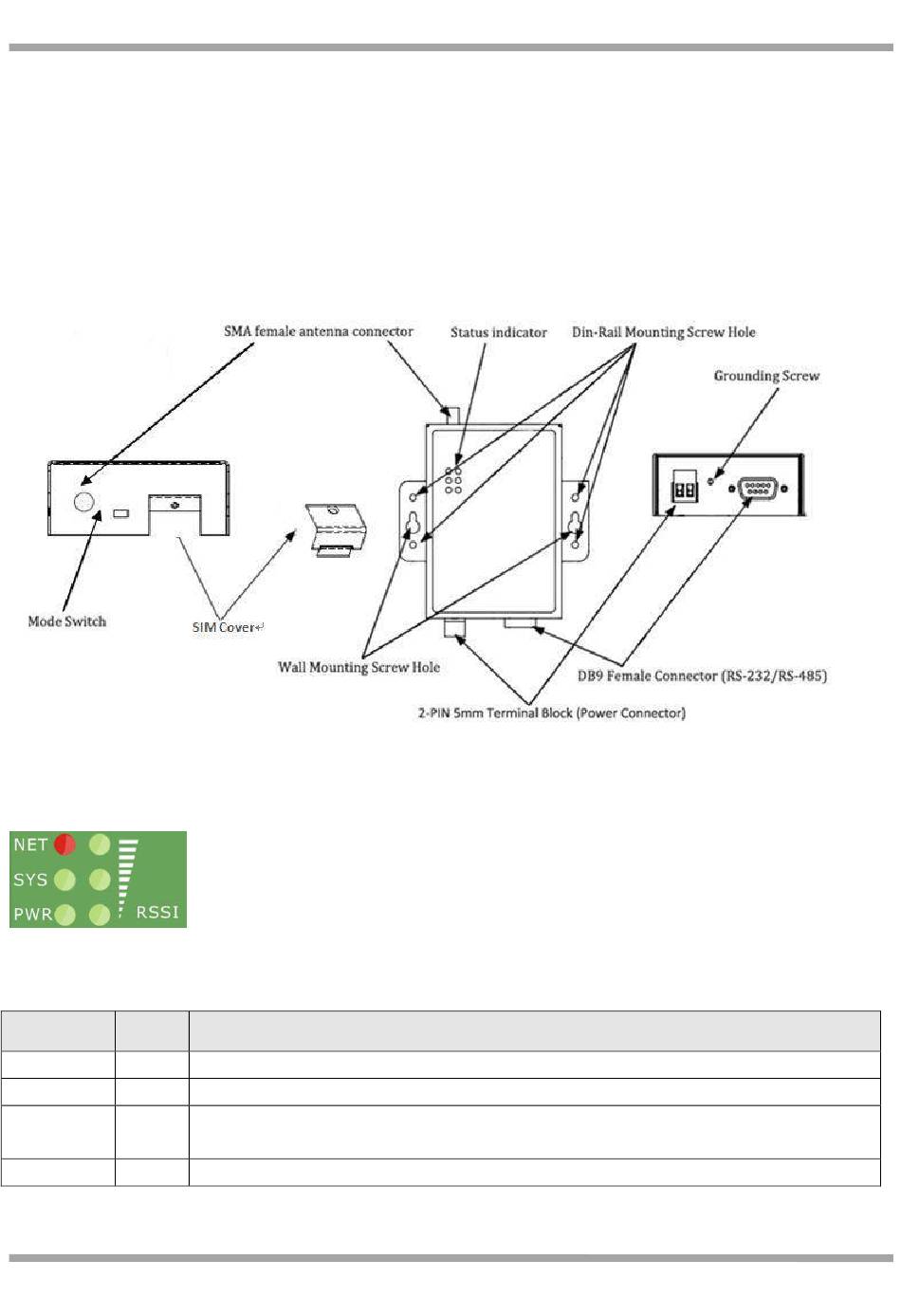

1.1 Overview
1.2 LED Indicators
After inserting the SIM card into the modem and power on, the LED indicators' status should be as follow when work
normally:
Name
Color
RSSI (3 LEDs) Green
NET
Red
SYS
Green
PWR
Green
：
Note
Please refer to Robustel GoRugged M1000 Pro V2 User Guide to get more details about the LED indicators.
RT_QG_M1000 Pro V2_v.1.0.0
Status
At least two bars
Register to network: blinking every 3s
System is running normally but without any GPRS/UMTS connection: blinking every 1s
System is running normally and GPRS/UMTS connection established: blinking every 3s
On when DC power connected
24.01.2014
1 / 6
Advertisement
Table of Contents
Related Manuals for Robustel GoRugged M1000 Pro V2
Summary of Contents for Robustel GoRugged M1000 Pro V2
- Page 1 System is running normally and GPRS/UMTS connection established: blinking every 3s Green On when DC power connected ： Note Please refer to Robustel GoRugged M1000 Pro V2 User Guide to get more details about the LED indicators. RT_QG_M1000 Pro V2_v.1.0.0 24.01.2014 1 / 6...
- Page 2 Robustel GoRugged M1000 Pro V2 Quick Guide 1.3 Working Mode Switch Switch There are two working modes available in the gateway, please check carefully: Mode Description When DIP switches to Config Mode, user could use follow functions: 1. Configure gateway via M1000 Pro V2 Configurator ;...
- Page 3 Robustel GoRugged M1000 Pro V2 Quick Guide 1.5 Grounding the Modem Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices.
- Page 4 Robustel GoRugged M1000 Pro V2 Quick Guide SIM 2 SIM 1 Note: Don’t forget screw the cover for again-theft. Don’t touch the metal surface of the SIM card in case information in the card is lost or destroyed. Don’t bend or scratch your SIM card. Keep the card away from electricity and magnetism.
- Page 5 3.1 M1000 Pro V2 Configurator Overview M1000 Pro V2 Configurator is a PC-based configuration software tool for managing and configuring Robustel M1000 Pro V2 gateway. With a full graphics mode and Windows-based environment, even first time users will find it easy to learn how to use this new software tool.
- Page 6 Note: The RS-232 connector uses standard PINOUT. A direct male DB9 to female DB9 cable can be used to connect to a PC’s serial port. Configuring the modem via M1000 Pro V2 configurator. Note: Please refer to Robustel GoRugged M1000 Pro V2 User Guide to get more details about M1000’ configuration. RT_QG_M1000 Pro V2_v.1.0.0 24.01.2014...
