Robustel GoRugged M1000 Quick Guide
Robustel GoRugged M1000 Quick Guide

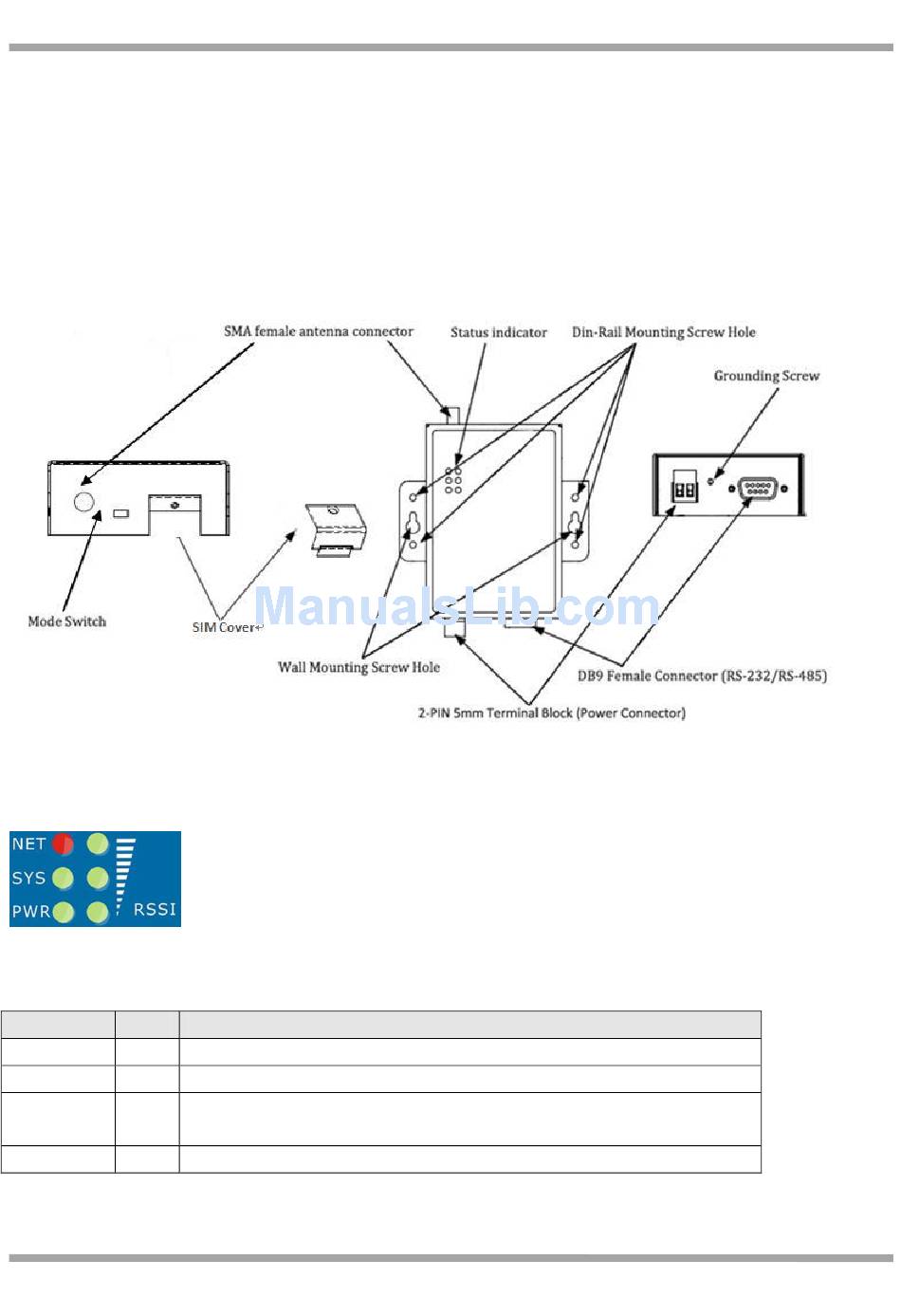

Chapter 1. Interface Introduction

1.1 Overview

1.2 LED Indicators

After inserting the SIM card into the modem and power on, the LED indicators' status should be as follow when work
normally:
Name
Color
RSSI (3 LEDs) Green At least two bars
NET
Red
SYS
Green
PWR
Green On when DC power connection
：
Note
Please refer to Robustel GoRugged M1000 User Guide to get more details about the LED indicators.
RT_QG_M1000 Standard_v.1.0.0
Status
Registered to network: 75 ms on / 3 s off
Normal mode: blinking 1 time/2 seconds
Config mode: blinking 2 times/second
24.01.2014
1 / 6
